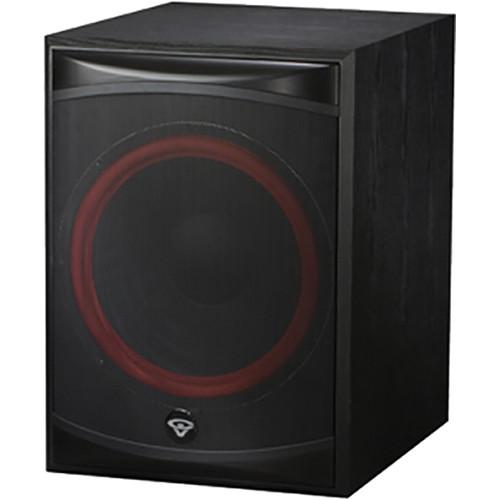

User Manual for Cerwin-Vega XLS-15S Front Firing 15" Powered Subwoofer Click to enlarge the picture
Contents of the user manual for the Cerwin-Vega XLS-15S Front Firing 15" Powered
- Product category: Subwoofers Cerwin-Vega
- Brand: Cerwin-Vega
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cerwin-Vega Subwoofers
|
User manual for the Cerwin-Vega XLS-15S Front Firing 15" Powered contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cerwin-Vega product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cerwin-Vega user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cerwin-Vega product will considerably shorten its lifespan!
|
Product description The XLS-15S Front-Firing 15" Powered Subwoofer from Cerwin-Vega features a bass reflex design with high-impact low frequency response down to 25 Hz. The speaker includes a built-in 250-watt RMS class AB power amplifier and a 15" cast frame high excursion powered subwoofer with a frequency response of 40 to 300 Hz at -3 db. Additionally, the unit offers level controls and a continuously variable crossover from 50 Hz to 150 Hz, enabling the user to tailor the bass response to almost any environment.
If you are looking for a high powered subwoofer to increase low end sonic power impact to your sound system, the XLS-15S will nicely fit the bill. UPC: 743658401163 In the Box Cerwin-Vega XLS-15S Front Firing 15" Powered Subwoofer Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cerwin-Vega XLS-15S Front Firing 15" Powered Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCerwin-Vega XLS-15S-NA Specs | | | Speaker Design | 15" cast frame high excursion woofer
Paper cone foam half roll cast frame woofer | | Frequency Response | 40 Hz to 300 Hz (-3 dB)
34.5 Hz to 430 Hz (-10 dB) | | Frequency Range | 25 Hz to 150 Hz (-10 dB) | | RMS Output Power | 250 W | | Amplifier Class | High current, class-AB amplifier design | | Crossover | Variable LPF: 50 Hz to 150 Hz | | Controls | Adjustable level control | | Audio Polarity Selection | User-selected polarity switch | | Auto On Sensitivity | Yes | | Inputs | Speaker level & line level inputs
L&R + LFE RCA, and speakers level barrier strips | | | | Design | Bass reflex | | Cabinet Finish | Black-ash enclosure | | Dimensions (H x W x D) | 24.1 x 17 x 22.9" (610 x 430 x 580 mm) | | Weight (Approximate) | 68 lb (30.8 kg) | | | | Package Weight | 75.55 lb | | Box Dimensions (LxWxH) | 27.5 x 25.5 x 21.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 94 owners. Add your rating and experience with the product.
