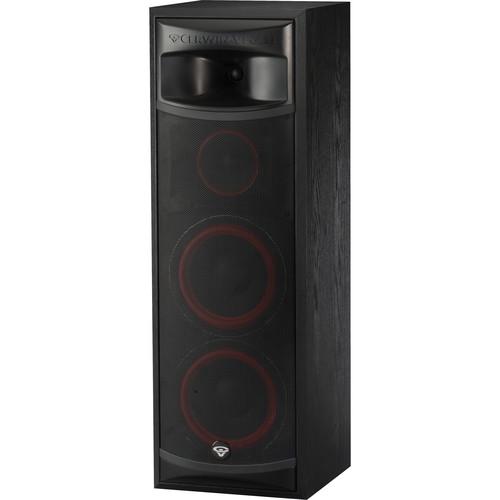

User Manual for Cerwin-Vega XLS 28 2 x 8" 3-Way Floorstanding Tower Speaker Click to enlarge the picture
Contents of the user manual for the Cerwin-Vega XLS 28 2 x 8"
- Product category: Floorstanding Speakers Cerwin-Vega
- Brand: Cerwin-Vega
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cerwin-Vega Floorstanding Speakers
|
User manual for the Cerwin-Vega XLS 28 2 x 8" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cerwin-Vega product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cerwin-Vega user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cerwin-Vega product will considerably shorten its lifespan!
|
Product description The XLS-28 2 x 8" 3-Way Floorstanding Tower Speaker from Cerwin-Vega, a member of the Classic Series, offers three-way performance in a stylishly designed enclosure. It features two 8" cast-frame high-excursion woofers, and includes a 6.5" mid-range speaker complemented by a 1" soft-dome tweeter coupled to a proprietary mid- and high-frequency waveguide.
With a frequency response of 45 Hz to 20 kHz (-3 dB) and a power capacity of 200 watts peak, this 3-way speaker will fill your listening or home theater area with room-filling, detailed sound. - High power handling for moving music and theater performance
- Large two 8" woofers for powerful low-end definition
- Proprietary mid- and high-frequency waveguide
- Black-ash speaker enclosure
UPC: 743658401200 In the Box Cerwin-Vega XLS 28 2 x 8" 3-Way Floorstanding Tower Speaker Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cerwin-Vega XLS 28 2 x 8" 3-Way Floorstanding Tower Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCerwin-Vega XLS-28 Specs | | | Speaker Type | 3-way floorstanding tower | | Speaker Compliment | Dual 8" (203 mm) cast frame high excursion woofers
6.5" (165 mm) woofer with fiber impregnated cone
1" (25 mm) soft dome tweeter with ferro fluid | | Frequency Response | 45 Hz to 20 kHz (-3 dB)
38 Hz to 20 kHz (-10 dB) | | Maximum Power Handling | 200 W | | Sensitivity | 89.8 dB (@ 8 ohms @ 3.3' / 1 meter full) | | Impedance | 6 ohms (8 ohm compatible) | | Crossover Frequencies | 380 Hz / 2.4 kHz | | Protection Features | Fuse (3 A 250 V Slow Blow, 6.3 x 32 mm) | | | | Connections | 5-Way: Separate binding posts for midrange and tweeter, and woofer (bi-ampable)
(Jumper straps included for non-bi-amp setup) | | Video Shielding | None | | Color | Black Ash | | Dimensions (H x W x D) | 33.7 x 11.1 x 12.2" (855 x 280 x310 mm | | Weight (Approximate) | 43 lb (19.5 kg) | | | | Package Weight | 48.5 lb | | Box Dimensions (LxWxH) | 38.0 x 16.2 x 15.4" |
