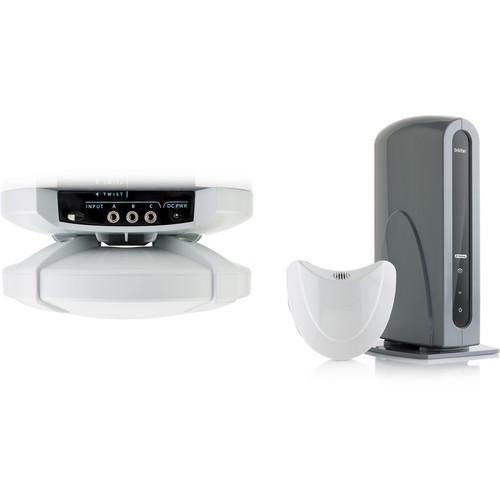

Cetacea Sound ASTRO-CLD001-SFC Astronaut CL Single-Speaker

User Manual for Cetacea Sound ASTRO-CLD001-SFC Astronaut CL Single-Speaker System with Orbiter Wireless Pendant Microphone

• Product category: Assistive Listening Systems Cetacea Sound
• Brand: Cetacea Sound
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Cetacea Sound Assistive Listening Systems

Product description

• Astronaut CL Classroom Speaker with Desktop Power Supply The Astronaut CL Classroom Speaker with Desktop Power Supply from Cetacea Sound is a compact speaker that provides classroom-wide sound enhancement, ideal for applications ranging from voice instruction to multimedia presentations. The speaker installs below the ceiling with the included bracket, without the need for cutting holes in the ceiling. Once the bracket is installed, the speaker twists on and off easily. The speaker has patented Astronaut technology and 40 watts of power to provide up to 1500 square feet of coverage. The omnidirectional dispersion pattern delivers intelligible audio across the entire classroom for improved student comprehension and learning.

  The speaker has Centre Fusion technology for improved voice clarity, and the unit is pre-equalized for superior speech intelligibility. The speaker has a 3-channel mixer with 3.5mm inputs. Each input supports stereo or mono audio signals. This versatility makes it easy to connect a projector, microphone, DVD player, CD player, MP3 player, etc to the speaker. The system has ENERGY STAR power certifications, as well as international electronics approvals. The speaker is supplied with a desktop power supply.
  • This compact and cost-effective system provides classroom-wide sound enhancement, ideal for applications ranging from voice instruction to multimedia presentations
  • The speaker installs below the ceiling with the included bracket, without the need for cutting holes in the ceiling. Once the bracket is installed, the speaker twists on and off easily
  • Patented Astronaut technology and 40 watts of power provide up to 1500 square feet of coverage. The omnidirectional dispersion pattern delivers intelligible audio across the entire classroom for improved student comprehension and learning
  • Centre Fusion technology offers improved voice clarity, and the unit is pre-equalized for superior speech intelligibility
  • The omnidirectional horn has patented ceiling acoustic coupling. There is also a patented magnetically-shielded custom Audiophile transducer, and a custom-tuned cabinet (patent applied for) with a custom-tuned port
  • The speaker has a 3-channel mixer with 3.5mm inputs. Each input supports stereo or mono audio signals. This versatility makes it easy to connect a projector, microphone, DVD player, CD player, MP3 player, etc to the speaker
  • The system has ENERGY STAR power certifications, as well as international electronics approvals
  • The speaker is supplied with a switch mode, low noise, high-efficiency desktop power supply
  UPC: 856548003139
• Orbiter Wireless Pendant Microphone and Desktop Receiver System The Orbiter Wireless Pendant Microphone and Desktop Receiver System from Cetacea Sound includes the Orbiter wireless pendant microphone/transmitter with charger, a desktop receiver with power supply, and a lanyard kit. It is designed for use in instructional classroom settings that require hands-free wireless miking.

  The transmitter operates on a 2.4GHz RF band, and features built-in coexistence to prevent interference with other nearby Orbiter systems. It can stream audio at 16-bit/44.1kHz CD quality and is capable of up to 10-hours of battery life on a single charge. It features an ergonomic design and doeskin pads to provide comfort for all-day wearing with the included lanyard kit. Control is provided by the volume button and the Master Control that can mute the microphone as well as turn it on and off.

  The Orbiter Desktop Receiver includes three 1/8" stereo/mono auxiliary inputs for use with CD, DVD, or MP3 Player, projector, or computer audio output. It features a 1/8" stereo/mono line output and Orbiter output. UPC: 856548003108

• CM-002 Ceiling Mount Kit

• FW-PSE1515D Desktop Power Supply

• 2-Year Limited Warranty

• Transmitter Charger

• Lanyard Kit

• Power Supply

• Limited 5-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Astronaut CL Classroom Speaker with Desktop Power Supply

  Connectors	3 x 3.5mm mono/stereo inputs with auto detection and mix-down
  Input Impedance	62k ohms
  Amplifier	40 W TSP 15 VDC, 15 W
  Power Supply	Switch mode, low noise, high-efficiency Input: 100-240 VAC, 50/60 Hz Output: 15 VDC Regulation: ±5%
  Consumption	< 0.25 W (stand-by)
  Efficiency	85%
  Protection	Fuse and over-temperature protection (80°C) Overload and over-voltage Short circuit protection with auto-recovery
  Ripple & Noise (max)	< 1%
  Compliance	CEC level IV compliant Approvals: UL, cUL, TUV, PSE, CAS, CCC, BEAB
  Frequency Response	70 Hz - 15 kHz (-3 dB)
  Signal to Noise Ratio	> 90 dB
  SPL	87 dB
  Tuning	90 Hz port tuning
  Power Cord	AC power cord and attached output cord with tuning fork barrel connector AC input style plug IEC-320, C-8
  Dimensions	Speaker: 7.2 x 3.5" (183 x 89 mm) (Dia x H) Power Supply: 4.33 x 2.07 x 1.44" (110 x 53 x 37 mm) (W x D x H)
  Weight	Speaker: 17.5 oz (0.5 kg) Power Supply: 8 oz (227 g) plus 8 oz (227 g) AC cord (if needed)

  Box Dimensions (LxWxH)	9.1 x 8.0 x 5.5"

• Orbiter Wireless Pendant Microphone and Desktop Receiver System

  RF	2.4 GHz digital RF
  Audio	16-bit/44.1 kHz streaming 5 Mbps over-the-air data rate
  Battery	Lifetime Li-Ion rechargeable
  Controls	Volume: +/- buttons Master: On/Off/Mute buttons
  Dimensions (L x H x W)	2.75 x 3.00 x 1.25" (69.85 x 76.20 x 31.75 mm)
  Weight	2.5 oz (7.0 g)

  Inputs	3x 1/8" (3.5 mm) Stereo/Mono Auxiliary Inputs
  Outputs	1x 1/8" (3.5 mm) Stereo/Mono Line Out 1x 1/8" (3.5 mm) Stereo/Mono Orbiter Out

  Box Dimensions (LxWxH)	9.0 x 8.1 x 5.5"
