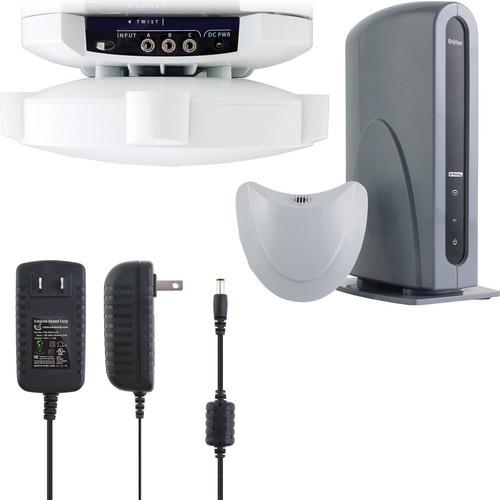

Product description The Cetacea Sound Astronaut XL Classroom Speaker System with Ceiling Mount, Desktop Power Supply, and 30' DC Extension Cord includes an Astronaut XL speaker system, a ceiling mount, and a desktop power supply with a 30-foot DC extension cord. It is designed for classroom and projector audio amplification in standard classrooms, cafeterias, and computer labs.
The Astronaut XL is capable of 60-watts of output and has omnidirectional acoustics that provide soundfield coverage for up to 2,000 square feet. The unit has been equalized for speech intelligibility and has a 70Hz to 15kHz frequency response for a range of audio for multimedia and video presentations. It features a three-channel mixer with three 1/8" stereo/mono inputs for audio from a projector, microphone, DVD or MP3 player, computer, or a whiteboard. - Secure Installation
- The included bracket allows quick and easy mounting to the ceiling. The Astronaut can be mounted almost anywhere on the ceiling but for the best result, mount it close to the audience
- Centré Fusion Technology
- The Centré Fusion technique, partially visible by its acoustic fins, allows Cetacea Sound to design speakers of any size, shape, and power range that provide authentic voice reproduction
UPC: 856548003214 In the Box Cetacea Sound Astronaut XL Classroom Speaker System with Ceiling Mount, Desktop Power Supply, and 30' DC Extension Cord Ceiling Mount Kit Desktop Power Supply 30' Extension Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cetacea Sound Astronaut XL Classroom Speaker System with Ceiling Mount, Desktop Power Supply, and 30' DC Extension Cord in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCetacea Sound Astronaut XL Specs | Inputs | 3x 1/8" (3.5 mm) Stereo/Mono Line Inputs | | Input Impedance | 62 kΩ | | Power Output | 60 W TSP | | Frequency Response | 70 Hz to 15 kHz @ -3 dB | | Signal to Noise Ratio | > 90 dB | | Loudness | 94 dB | | Tuning | Port Tuning: 90 Hz | | Power Requirements | Voltage Input: 100 to 240 V, 50/60 Hz
Voltage Output: 15 VDC | | Power Supply | 85% Efficient
Fuse and Over Temperature Protection: 176 °F (80° C)
Regulation: +/- 5%
Ripple and Noise: < 1%
Overload and Over-Voltage Protection
Short Circuit Protection with Auto-Recovery
Power Consumption: < 0.25 W | | Compliance | CEC Level IV
UL, cUL, TUV, PSE, CSA, CCC, BEAB Approved | | Dimensions (HxD) | 3.5 x 8.0" (88.9 x 203.2 mm) | | Weight | 1.5 lb (0.7 kg) | | | | Package Weight | 7.3 lb | | Box Dimensions (LxWxH) | 12.3 x 9.6 x 8.4" |
