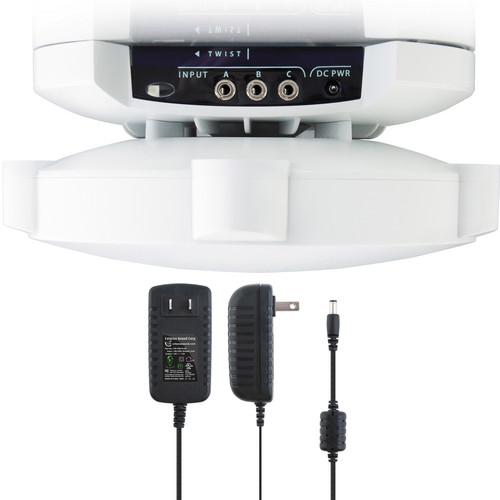

User Manual for Cetacea Sound Astronaut XL Classroom Speaker with Wall Mount Power Supply Click to enlarge the picture
Contents of the user manual for the Cetacea Sound Astronaut XL Classroom Speaker
- Product category: Assistive Listening Systems Cetacea Sound
- Brand: Cetacea Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cetacea Sound Assistive Listening Systems
|
User manual for the Cetacea Sound Astronaut XL Classroom Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cetacea Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cetacea Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cetacea Sound product will considerably shorten its lifespan!
|
Product description The Astronaut XL Classroom Speaker with Wall Mount Power Supply from Cetacea Sound is a compact speaker that provides classroom-wide sound enhancement, ideal for applications ranging from voice instruction to multimedia presentations. The speaker installs below the ceiling with the included bracket, without the need for cutting holes in the ceiling. Once the bracket is installed, the speaker twists on and off easily. The speaker has patented Astronaut technology and 60 watts of power to provide up to 2000 square feet of coverage, with volume levels up to twice as loud as the Astronaut CL system. The omnidirectional dispersion pattern delivers intelligible audio across the entire classroom for improved student comprehension and learning.
The speaker has Centre Fusion technology for improved voice clarity, and the unit is pre-equalized for superior speech intelligibility. The speaker has a 3-channel mixer with 3.5mm inputs. Each input supports stereo or mono audio signals. This versatility makes it easy to connect a projector, microphone, DVD player, CD player, MP3 player, etc to the speaker. The system has ENERGY STAR power certifications, as well as international electronics approvals. The speaker is supplied with a wall mount power supply. - This compact and cost-effective system provides classroom-wide sound enhancement, ideal for applications ranging from voice instruction to multimedia presentations
- The speaker installs below the ceiling with the included bracket, without the need for cutting holes in the ceiling. Once the bracket is installed, the speaker twists on and off easily
- Patented Astronaut technology and 60 watts of power provide up to 2000 square feet of coverage and up to twice the volume of the Astronaut CL system. The omnidirectional dispersion pattern delivers intelligible audio across the entire classroom for improved student comprehension and learning
- Centre Fusion technology offers improved voice clarity, and the unit is pre-equalized for superior speech intelligibility
- The omnidirectional horn has patented ceiling acoustic coupling. There is also a patented magnetically-shielded custom Audiophile transducer, and a custom-tuned cabinet (patent applied for) with a custom-tuned port
- The speaker has a 3-channel mixer with 3.5mm inputs. Each input supports stereo or mono audio signals. This versatility makes it easy to connect a projector, microphone, DVD player, CD player, MP3 player, etc to the speaker
- The system has ENERGY STAR power certifications, as well as international electronics approvals
- The speaker is supplied with a switch mode, low noise, high-efficiency wall mount power supply
UPC: 856548003146 In the Box Cetacea Sound Astronaut XL Classroom Speaker with Wall Mount Power Supply CM-002 Ceiling Mount Kit FW-PSE1515W Wall Mount Power Supply 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cetacea Sound Astronaut XL Classroom Speaker with Wall Mount Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCetacea Sound Astronaut XL Specs | Connectors | 3 x 3.5mm mono/stereo inputs with auto detection and mix-down | | Input Impedance | 62k ohms | | Amplifier | 60 W TSP
15 VDC, 15 W | | Power Supply | Switch mode, low noise, high-efficiency
Input: 100-240 VAC, 50/60 Hz
Output: 15 VDC
Regulation: ±5% | | Consumption | < 0.25 W (stand-by) | | Efficiency | 85% | | Protection | Fuse and over-temperature protection (80°C)
Overload and over-voltage
Short circuit protection with auto-recovery | | Ripple & Noise (max) | < 1% | | Compliance | CEC level IV compliant
Approvals: UL, cUL, TUV, PSE, CSA, CCC, BEAB | | Frequency Response | 70 Hz - 15 kHz (-3 dB) | | Signal to Noise Ratio | > 90 dB | | SPL | 94 dB | | Tuning | 90 Hz port tuning | | Power Cord | 6' (1.8 m) reach with tuning fork barrel connector | | Dimensions | Speaker: 8 x 3.5" (203 x 89 mm) (Dia x H)
Power Supply: 4.33 x 2.07 x 1.44" (110 x 53 x 37 mm) (W x D x H) | | Weight | Speaker: 1.6 lbs (0.7 kg)
Power Supply: 8 oz (227 g) plus 8 oz (227 g) AC cord (if needed) | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 9.0 x 8.0 x 5.5" |
