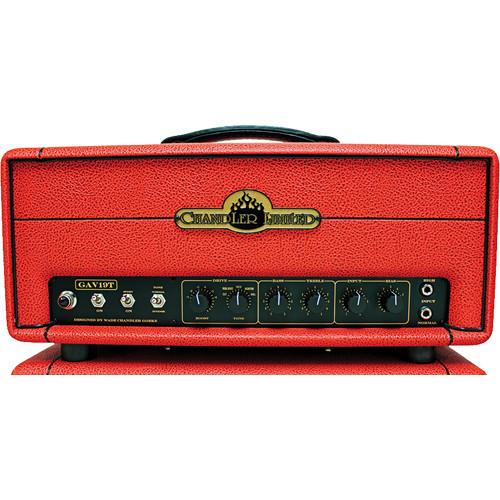

User Manual for Chandler GAV19T 19-Watt Guitar Amplifier Head Click to enlarge the picture
Contents of the user manual for the Chandler GAV19T 19-Watt Guitar Amplifier Head
- Product category: Guitar Amplifiers Chandler
- Brand: Chandler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chandler Guitar Amplifiers
|
User manual for the Chandler GAV19T 19-Watt Guitar Amplifier Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chandler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chandler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chandler product will considerably shorten its lifespan!
|
Product description The GAV19T 19-Watt Guitar Amplifier Head from Chandler Limited features a hand-wired, all-tube, cathode-biased/Class-A design that is capable of 19 watts of output. It has an adjustable bias control that affects only the preamp section. This allows the tube to run hotter or colder, resulting in changes to the amp's responsiveness, sustain and frequency response. The Tone section of the amp features a Baxendall-style EQ which uses an ECC803 along with an ECC83 preamp tube to preserve the natural tone of the amp. It is controlled via Bass and Treble knobs, and is designed to function as a treble boost that can be used to add sustain and presence.
The Drive section of the GAV19T is a Boost or Overdrive circuit that works only on the power section to achieve distortion, rather than adding preamp gain. It features a Drive Tone selection knob with four tone selections for sculpting the drive. A master Tone switch allows you to select between Normal and Intense, which removes lower-mid frequencies, resulting in added grit and attack. - Tube Powered
- The GAV19T features two EL84 power tubes, ECC83 and ECC803 preamp tubes, and an EZ81 rectifier tube
- Selectable Preamp Tube Bias
- The GAV19T has five selectable bias settings for its preamp tube, including:
#1: Slightly Overbiased
#2: Marshall-Style
#3: Selmer-Style
#4: Underbiased 1
#5: Underbiased 2 - Drive Tone Selections
- The Drive portion has four selectable tones:
Treble Boost: treble boost pedal style
Full Range: full frequency boost with very low frequencies filtered out
Aggressive: drives a wide frequency range with emphasis in the higher midrange
Mids: drives the entire circuit with an emphasis on the lower midrange In the Box Chandler GAV19T 19-Watt Guitar Amplifier Head Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chandler GAV19T 19-Watt Guitar Amplifier Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChandler GAV19T Specs | Inputs | 1x 1/4" (6.35 mm) TS Normal Input
1x 1/4" (6.35 mm) TS High Input | | Power Rating | 19 W | | Preamplifier | 1x ECC83 Tube
1x ECC803 Tube | | Amplifier | 2x EL84 Tubes | | Rectifier | 1x EZ81 Tube | | Controls | 1x Power Switch
1x Standby Switch
1x Tone Switch
1x Drive Boost Knob
1x Tone Selector Knob
1x Bass Control Knob
1x Treble Control Knob
1x Input Volume Knob
1x Bias Selector Knob | | Drive Tone Selections | Treble Boost
Full Range
Aggressive
Mids |
