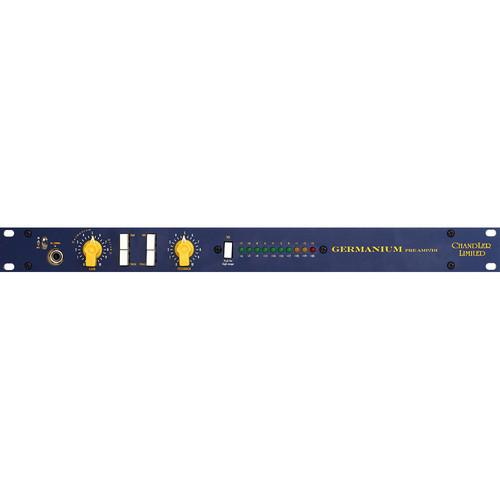

User Manual for Chandler Germanium Pre Amp DI - Microphone Preamplifier Click to enlarge the picture
Contents of the user manual for the Chandler Germanium Pre Amp DI -
- Product category: Microphone Preamps Chandler
- Brand: Chandler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chandler Microphone Preamps
|
User manual for the Chandler Germanium Pre Amp DI - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chandler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chandler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chandler product will considerably shorten its lifespan!
|
Product description The Germanium Pre Amp/DI from Chandler Limited is a single-channel microphone preamp that utilizes vintage-style germanium transistors, which help it achieve a variety of sounds. Gain and Feedback knobs are provided for setting levels and achieving various tones, as is a Thick button and a -20dB pad button. The Thick button brings out a subtle amount of low end in the signal, and the pad attenuates the input, making it possible to capture loud sounds, such as a cranked-up guitar amp. The pad is also useful for shaping other kinds of sounds. When you attenuate a relatively soft signal, you can then boost them up using various amounts of Gain and Feedback, bringing out interesting sonic characteristics.
The germanium transistors are used in a class A, transformer balanced circuit. An unbalanced 1/4" instrument input is available on the front panel for directly connecting guitars and basses. Phase Reverse and 48V phantom power buttons are also provided on the face of the unit, as well as a ten-segment LED meter. Input and output connections are provided on the back with balanced XLR jacks. The separately available Chandler Limited PSU-1 MKII power supply is required to operate this unit. A single PSU-1 MKII is capable of powering two Germanium Pre Amp/DI units. In the Box Chandler Germanium Pre Amp/DI - Microphone Preamplifier 4-Pin Cable, 6' (1.83 m) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chandler Germanium Pre Amp DI - Microphone Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChandler Pre Amp/DI Specs | Number of Channels | Single | | Inputs | 1x XLR, transformer balanced, pin 2 hot
1x 1/4" (6.35 mm) instrument jack, unbalanced, 100k input impedance | | Output | 1x XLR, transformer balanced, pin 2 hot | | Phantom Power | 48V | | Gain Range | -5 to +65 dB | | Circuit | Discrete, transistor | | Cable Length | Included 4-pin cable: 6' (1.83 m) | | Power | +/- 28V
Requires the Chandler Limited PSU-1 MKII power supply to operate | | Dimensions (WxDxH) | 19 x 12 x 2" (483 x 305 x 51 mm) | | Weight | 10 lb (4.5 kg) | | | | Package Weight | 12.65 lb | | Box Dimensions (LxWxH) | 22.5 x 15.1 x 8.9" |
