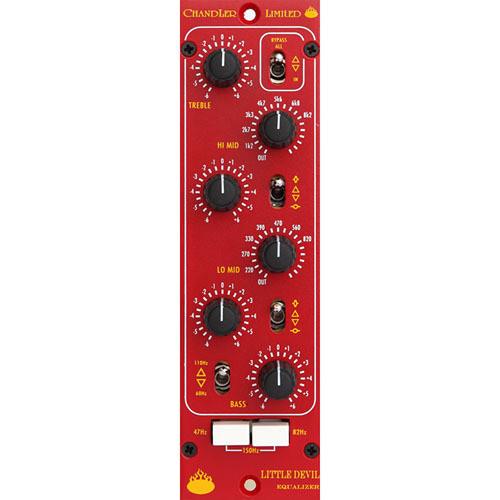

User Manual for Chandler Little Devil EQ - 500 Series Processor Click to enlarge the picture
Contents of the user manual for the Chandler Little Devil EQ - 500
- Product category: Equalizers Chandler
- Brand: Chandler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chandler Equalizers
|
User manual for the Chandler Little Devil EQ - 500 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chandler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chandler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chandler product will considerably shorten its lifespan!
|
Product description The 500 Series Guide to Equalizers Read More csvxqxqbtbbxyszrtbfz The Little Devil EQ by Chandler Limited is a small package equalizer with a huge vintage sound. It is an inductor-based EQ with discrete circuits that gyrator circuits of most other modern EQs cannot touch. It features a classic Baxendall tone control and all units are handwired using through-hole components and handwiring. The high-quality build and English circuitry all contribute to an updated take on a vintage sound. All units have been upgraded to avoid any power compatibilities with 3rd party racks and lunchboxes. Overall, the Little Devil EQ is a top quality, hand-built EQ which will add warmth and vintage character to your tracks. Note: Chandler recommends installing into a rack with an external power supply, as internal power supplies may cause noise issues. - Small Package with Huge Sound
- English circuits, top quality components, and custom transformers all contribute to the warm but open bass. All of these features are packaged into a unit which fits into a 500 series rack or lunchbox.
- Discrete Amp with Custom Transformers
- The quality amp and custom transformers deliver clean power to the EQ and prevent unwanted noise and hum from entering the signal path.
- Baxendall Tone Control
- The Baxendall tone control helps give the Little Devil that British console sound which is usually found in units much greater in terms of both size and money. It adds warmth and depth without sacrificing quality and clarity of sound.
- Handmade Using Top Components
- The unit is handmade using through-hole components and handwiring which greatly increases the quality of sound compared to surface mount components used in most other EQs. These techniques preserve the vintage sound which Chandler is known for.
- Upgraded to Eliminate Power Issues
- The Little Devil has been upgraded to eliminate power conflicts with 3rd party racks. It has been tested and is compatible with the following units. API 500V 10-slot with L200 PSU; API 500-6B Lunchbox; API 500-6B HC "new version" Lunchbox; BAE 11-slot with power one supply; BAE 6-slot portable with power one supply; BAE 6-slot with Avedis designed supply; A-Designs 2-slot; Purple Sweet 10; and Empirical Labs 2-slot. Not yet tested in Radial Workhorse.
- Designed to Re-Create that Vintage Sound
- The British circuits, handmade construction, inductor design, and Baxendall tone control all contribute to a warm, vintage sound which Chandler is known for.
- EQ Bands Chosen by Real Musicians
- All frequencies have been set and tuned by ear using classic gear as a guideline, ensuring you are getting the most accurate representation of that highly coveted vintage sound.
- Capacitor and Inductor Based Circuits
- The discrete circuits and inductor based design give the Little Devil EQ a huge sound that gyrator circuits cannot touch.
In the Box Chandler Little Devil EQ - 500 Series Processor 2 Year Limited Warranty - Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Chandler Little Devil EQ - 500 Series Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChandler Little Devil EQ Specs | EQ Shelf Frequencies | Treble: 12 kHz
Bass: Selectable 60/110hz | | Equalizer Control Bands | Hi Mids: 8.2, 6.8, 5.6, 4.7, 3.3, 2.7, 1.2 kHz Lo Mid: 820, 560, 470, 390, 330, 270, 220 hz | | Filters | Three Position Filter: 47, 82, 150 hz | | Connections | Transformer balanced with pin 2 hot | | Power Requirements | API 500v rack with external L200 supply and the BAE 11-slot with external supply. | | Power Draw | 600ohm: +16v power rail = +65ma / -16v power rail = -65ma |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 11 owners. Add your rating and experience with the product.
