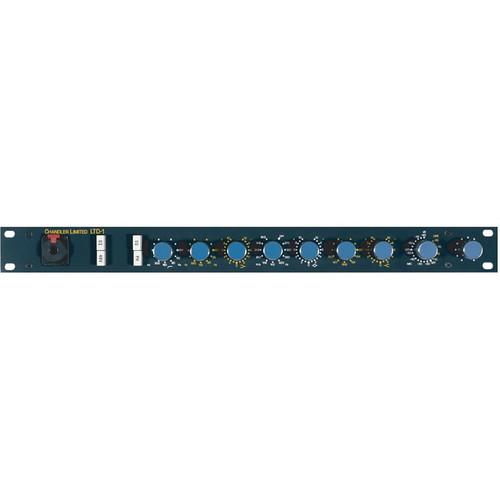

Product description The Chandler Limited LTD-1 is a hand-wired 10-series equalizer and preamp that was built with the same techniques and parts that were used in the original modules. The LTD-1's features include a high-impedance DI input, switchable 48V phantom power, an EQ in/out button, phase reverse, balanced mic and line inputs (all connections on the unit are transformer balanced), and a DI in/out button that mutes the mic input. The Output knob functions like a mixing console fader; you can lower it in order to crank the input and add additional coloration without overloading connected devices.
The EQ section includes low-shelving, mid-peak, and high-shelving bands, plus a high-pass filter. All frequency points are fixed, and Chandler has added additional points to supplement those from the original 10-series units. The LTD-1 is powered by Chandler Limited's PSU-1 power supply, which must be purchased separately. - Hand-wired 10-series-style equalizer and preamp that was constructed with parts and build techniques from the original manufacture of the modules
- High-impedance direct input
- 48V switchable phantom power
- DI in/out switch; also acts as a mute for the mic input
- Low-shelving EQ with four frequency selections
- Peak-EQ with ten frequency selections
- High-shelving EQ with five frequency selections
- High-pass filter with four frequency settings
- Output Control that functions like a fader on a mixing console. Use it to adjust between the 5 dB steps of the input or to run the input hot without distorting your recorder (for extra coloration)
- Balanced XLR input and output jacks on rear panel; 1/4" DI input on front
In the Box Chandler LTD-1 - Hand-Wired 10-Series EQ and Preamp One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chandler LTD-1 - Hand-Wired 10-Series EQ and Preamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChandler LTD-1 Specs | Number of Channels | Single | | Inputs | 1 x 1/4" DI (unbalanced)
1 x XLR Mic (balanced) | | Outputs | 1 x XLR Output (balanced) | | Frequency Response | Not Published By Manufacturer | | | | Gain Range | Mic 60 dB, Line 30 dB | | Input Impedance | Mic 1200Ω
Line 10kΩ | | Phantom Power | 48V | | | | Filter Type | High-Pass
Low EQ: Low-shelving
Mid EQ: Peak
High EQ: High-shelving | | Fixed Frequency Points | Low EQ: 220, 110, 60, 35 Hz
Mid EQ: 270, 390, 560, 829 Hz and 1.2, 1.8, 2.7, 3.9, 5.6, 8.2 kHz
High EQ: 3.3, 4.7, 6.8, 12, 16 kHz
High-Pass Filter: 50, 80, 160, 300 Hz | | | | Controls | 9 x Rotary EQ Controls
1 x EQ Switch
1 x Phase Switch
1 x DI In/Out Switch | | Dimensions | 19" (48.3 cm) x 1RU | | Weight | 10 Lbs (4.54 kg) |
