User Manual for Chandler LTD-2 Compressor Click to enlarge the picture
Contents of the user manual for the Chandler LTD-2 Compressor
- Product category: Dynamics Processors Chandler
- Brand: Chandler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chandler Dynamics Processors
 |
User manual for the Chandler LTD-2 Compressor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chandler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chandler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chandler product will considerably shorten its lifespan!
|

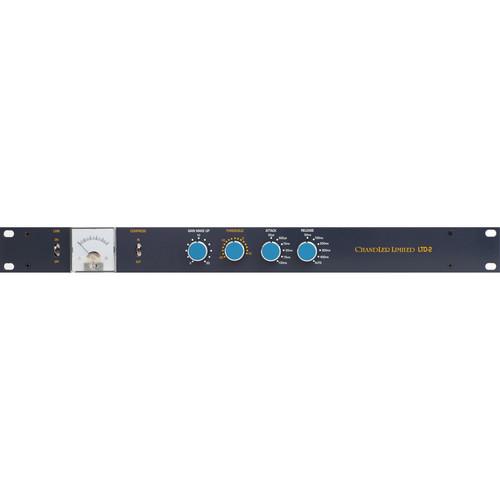

Product description The LTD-2 from Chandler Limited is a single channel compressor that was designed to deliver vintage-sounding characteristics with updated capabilities. It features parts and build techniques from the Neve 2254, 2264, and 33609 compressor modules. More specifically, the LTD-2 uses the control circuit from the 80-series Neve compressors, and the Class A amps and transformers from the Neve 2254 and 10-series compressors. It essentially borrows the best features from various classic dynamics processors to deliver something new.

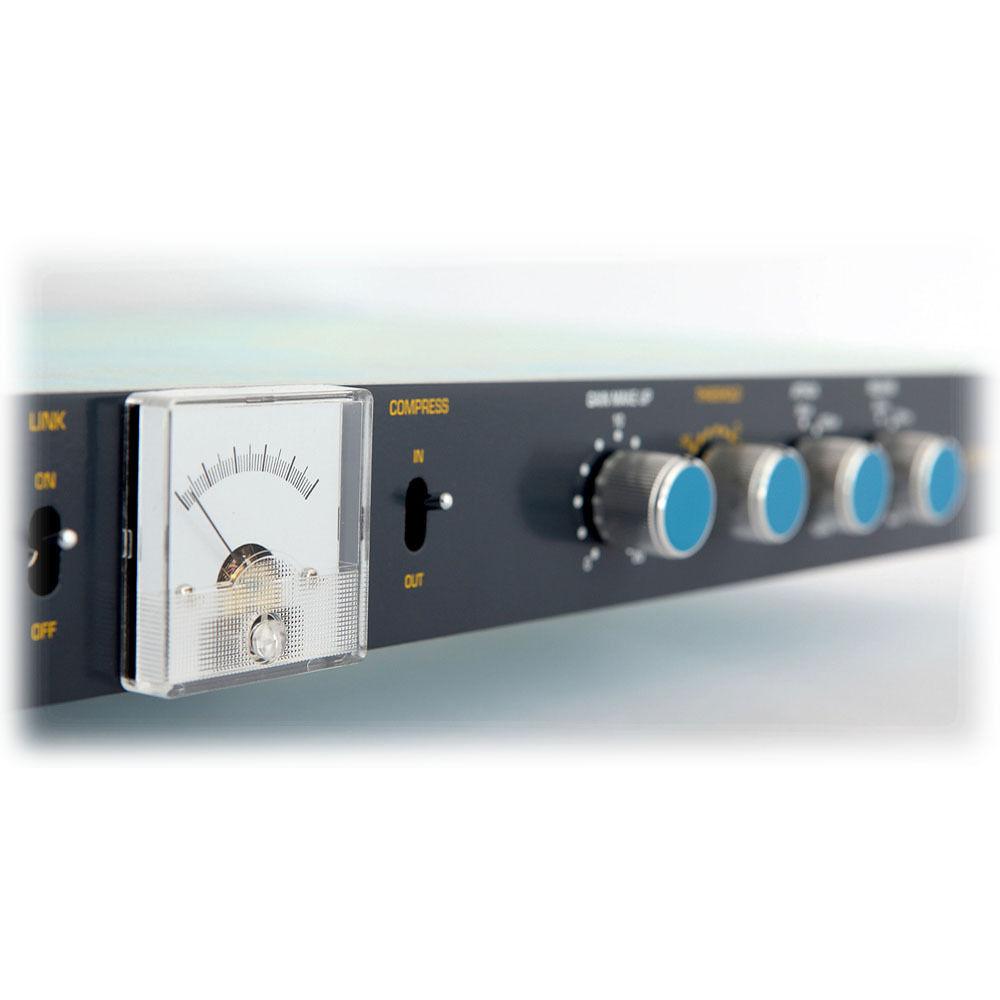

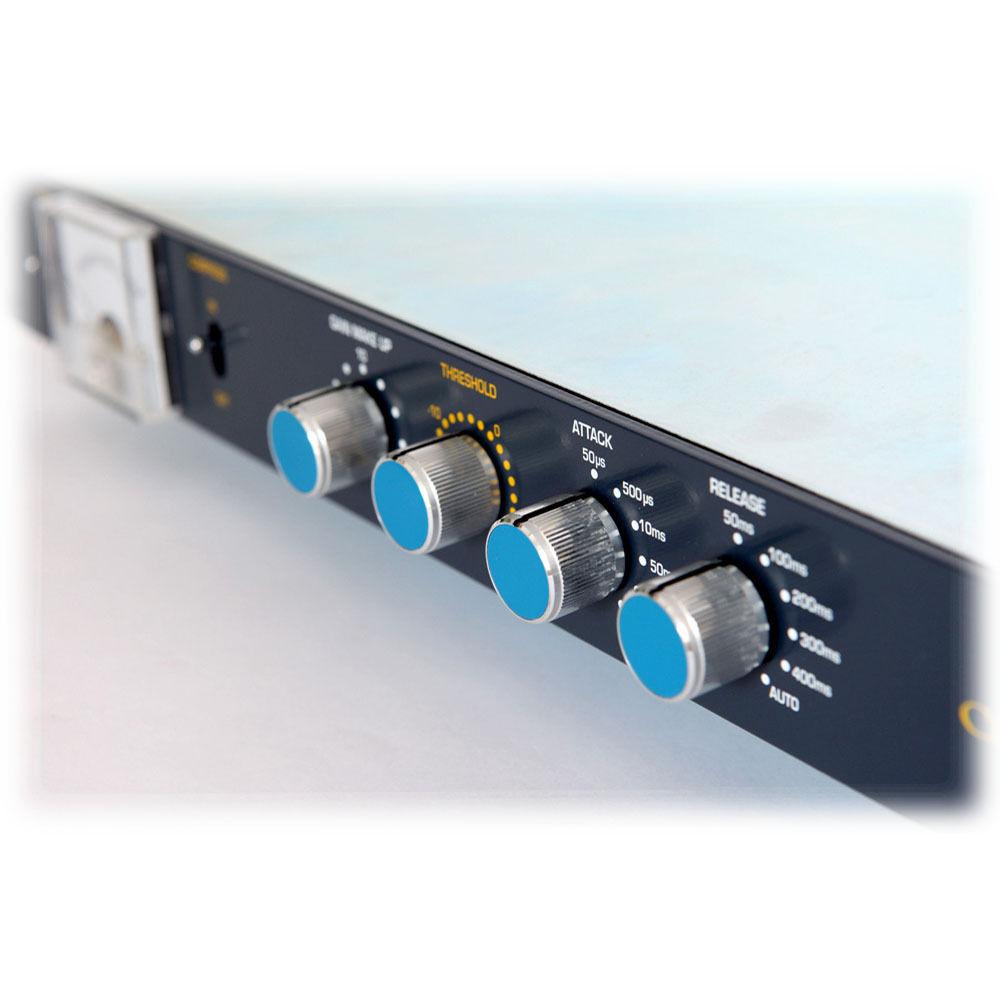

Variable Attack and Release knobs give the LTD-2 versatility. The input and output connectors use transformer balanced XLR jacks, and multiple units can be linked together with a dedicated XLR input for stereo and surround sound operation. A dedicated Link switch enables you to engage multiple units. You can bypass the compressor on the LTD-2 with a dedicated switch, however, its Class A amp circuitry cannot be bypassed. An analog Gain Reduction Meter is provided on the front panel. A 4-pin power cable is included with the LTD-2, however, a separately available Chandler Limited PSU-1 MKII power supply is required for operation. A single PSU-1 MKII is capable of powering two LTD-2 compressors. In the Box Chandler LTD-2 Compressor 4-Pin Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chandler LTD-2 Compressor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChandler LTD-2 Mono Specs | Number of Channels | Single | | Inputs | 1x XLR, transformer balanced, pin 2 hot
1x XLR link input, pin 2 hot | | Outputs | 1x XLR, transformer balanced, pin 2 hot | | Compression Threshold | -20 to 10dB | | Attack Time | 50us, 500us, 10ms, 50ms, 75ms, 100ms | | Release Time | 50, 100, 200, 300, 400ms and Auto | | Make-up Gain | 0 to 20dB | | Circuit | Discrete, transistor | | Cable Length | Included 4-pin power cable: 6' (1.83 m) | | Power | +/- 28V
Requires the Chandler Limited PSU-1 MKII power supply to operate | | Dimensions (LxWxH) | 19 x 12 x 2" (483 x 305 x 51 mm) | | Weight | 8 lb (3.6 kg) | | | | Package Weight | 16.8 lb | | Box Dimensions (LxWxH) | 1.0 x 1.0 x 1.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 26 owners. Add your rating and experience with the product.
