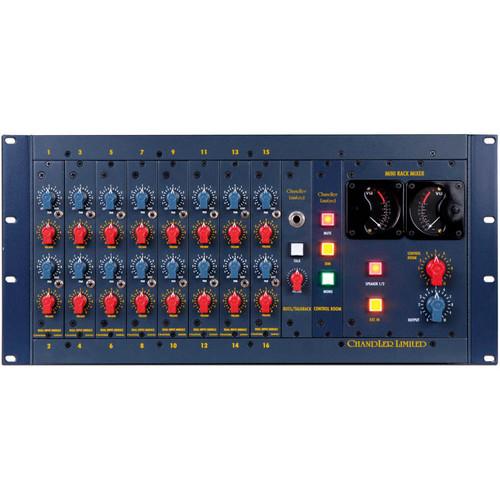

User Manual for Chandler Mini Rack 16 Channel Mixer Click to enlarge the picture
Contents of the user manual for the Chandler Mini Rack 16 Channel Mixer
- Product category: Analog Recording Mixers Chandler
- Brand: Chandler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chandler Analog Recording Mixers
|
User manual for the Chandler Mini Rack 16 Channel Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chandler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chandler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chandler product will considerably shorten its lifespan!
|
Product description The Mini Rack 16 Channel Mixer from Chandler is a 19" (482.6mm), all steel rack box that, fully-loaded, weighs 50 lb. (22.7kg) mostly due to the 22 transformers that embody the unit. The Mini has eight single-slot, 2-channel line input modules, a single-slot talkback module, a single-slot control room monitor panel and a 4-slot master module. Even though the mixer is a rackmounted unit and ideal for portable DAW rigs, it can be positioned at a slight angle in a permanent desktop cabinet to work as a conventional mixer/console/desk. The unit has a full featured control room section including talkback, speaker switching, mute, mono, dim, external input (also used as an insert point), and separate control room and stereo bus outs. - Channel Volume
- Each control is push/pull to mute the channel
- Channel Pan
- Toggle switch disconnects pan pot to allow for true centering, like on a vintage API or Neve
- Talkback Module
- Volume control and momentary push button to engage
- Control Room
- Includes talkback, speaker switching, mute, mono, dim, external input (also used as an insert point), and separate control room and stereo bus outs
- External Input
- Pressing this button disconnects the mix section and control room allowing for some interesting combinations. The most obvious is to listen to other sources, like 2 track machines or CD player, but was designed with other important options in mind
- Stereo Output
- Volume for two sets of stereo outputs
- Stereo Insert
- By pressing the external you can create a stereo insert point between the stereo outputs and control room sections of the mixer. Hit external, patch from the stereo output to the external in, and the control room then becomes your stereo out with an insert point
- Summing
- To sum through the stereo out press external. Feed a stereo mix from your DAW to the external in and listen from the control room out. The mixer is then completely independent from the control room and stereo bus. Allow use for dual mono or stereo summing
In the Box Chandler Mini Rack 16 Channel Mixer 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chandler Mini Rack 16 Channel Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChandler MINI RACK MIXER - 16 CHAN Specs | Total # Of Inputs | 16 | | Amplifiers | 20 | | Stereo Line Inputs | 2 | | Rackmount | Yes |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 59 owners. Add your rating and experience with the product.
