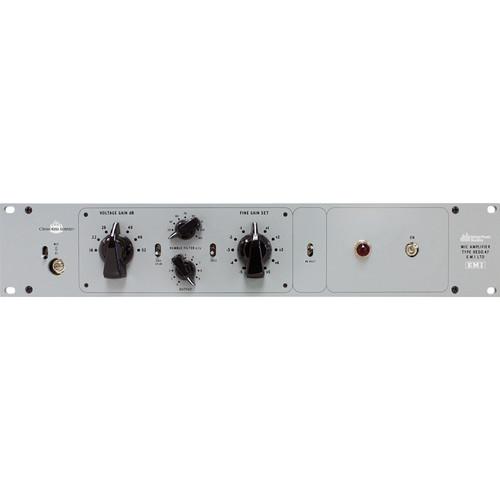

User Manual for Chandler REDD.47 Microphone Preamplifier Click to enlarge the picture
Contents of the user manual for the Chandler REDD.47 Microphone Preamplifier
- Product category: Microphone Preamps Chandler
- Brand: Chandler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chandler Microphone Preamps
|
User manual for the Chandler REDD.47 Microphone Preamplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chandler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chandler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chandler product will considerably shorten its lifespan!
|
Product description The REDD.47 Microphone Preamplifier from Chandler is a re-creation of Abbey Road Studios' legendary EMI REDD.51 recording console tube preamplifier—heard on classic records from artists like the Beatles. It provides up to 57 dB of gain, an increase from the original design, giving you the option of tones ranging from pristine to the distortion heard on the Beatles track "Revolution." The preamp features a stepped voltage gain input, a variable fine gain control, and a variable output control, providing ample control over your level. Its Rumble Filter gives you 8 frequencies from 30 to 180 Hz to eliminate low-end from your signal if desired.
Not limited to use with just microphones, there is a front-panel 1/4" Hi-Z input for use as a DI, and its XLR input also supports line-level signals, allowing you to run almost any source through the REDD.47 for amplification, tone, or harmonic distortion. In the Box Chandler REDD.47 Microphone Preamplifier Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chandler REDD.47 Microphone Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChandler REDD.47 Specs | Channels | Mono | | Circuit | Tube (EF86, E88CC) | | Connections | Inputs:
1x Mic/Line level XLR (pin 2 hot)
1x 1/4" (6.3 mm) DI
Output:
1x XLR (pin 2 hot)
All I/O transformer balanced (custom wound) | | Controls | Voltage Gain: Stepped 16 to 52 dB
Fine Gain: Variable +/- 5 dB
Total Gain: 57 dB
Output Control: Variable
Rumble Filter: Inductor based, switchable between 30, 45, 60, 70, 90, 110, 130, 180 Hz
Pad: Switchable, 20 dB
Phase: Switchable
Phantom Power: Switchable, +48 V | | Harmonic Distortion | 2% before clipping | | Power | Internal power supply | | | | Package Weight | 16.35 lb | | Box Dimensions (LxWxH) | 22.9 x 15.2 x 9.0" |
