User Manual for Chandler REDD Large-Diaphragm Condenser Microphone with Built-In Tube Preamplifier Click to enlarge the picture
Contents of the user manual for the Chandler REDD Large-Diaphragm Condenser Microphone with
- Product category: Tube Microphones Chandler
- Brand: Chandler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chandler Tube Microphones
 |
User manual for the Chandler REDD Large-Diaphragm Condenser Microphone with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chandler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chandler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chandler product will considerably shorten its lifespan!
|

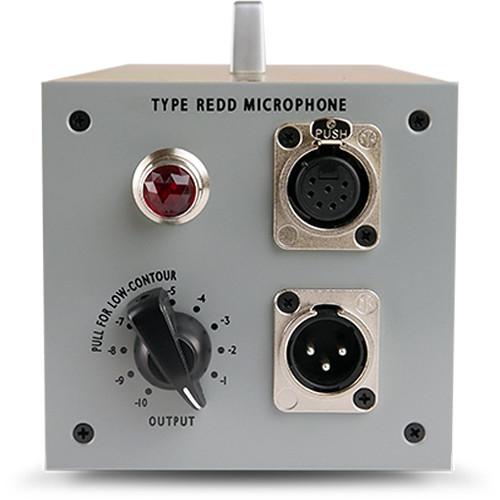

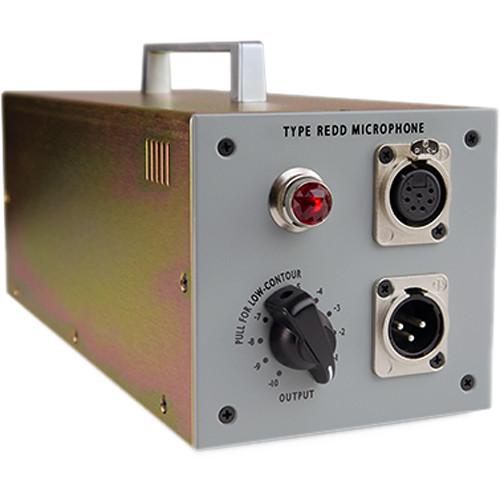

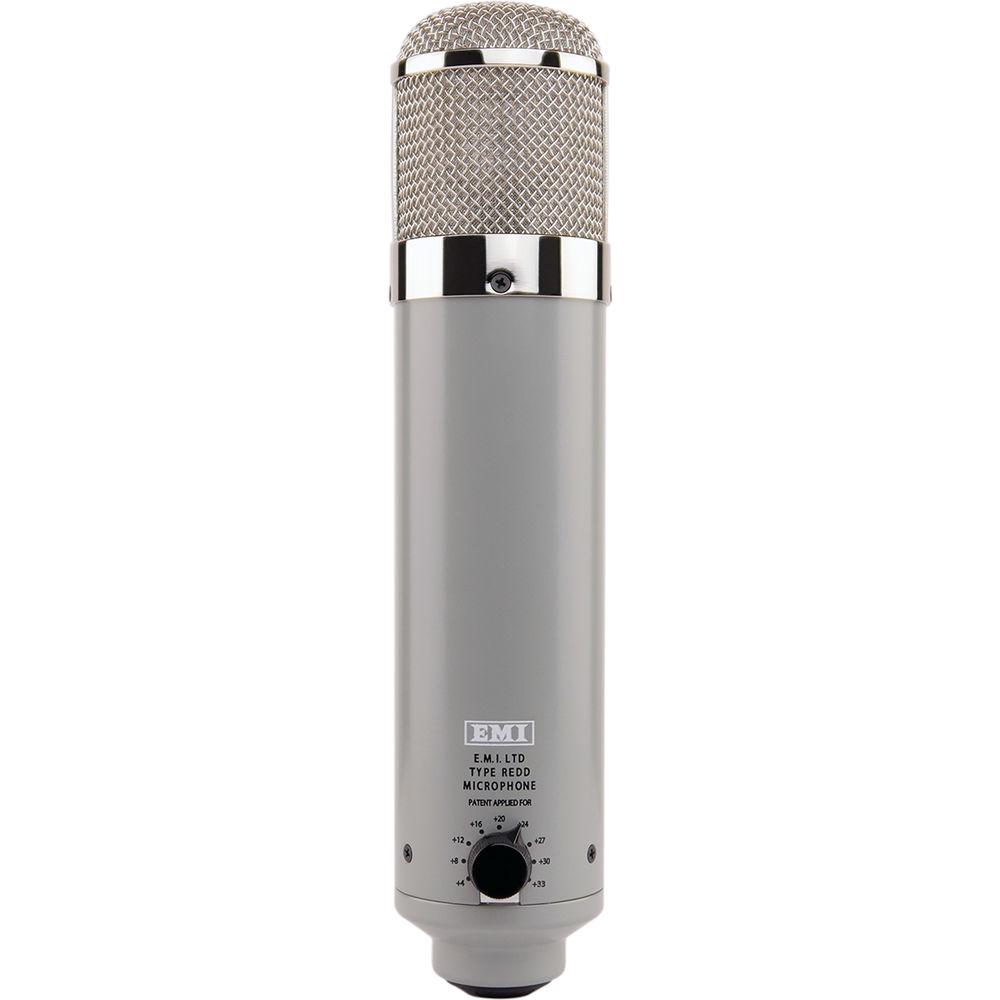

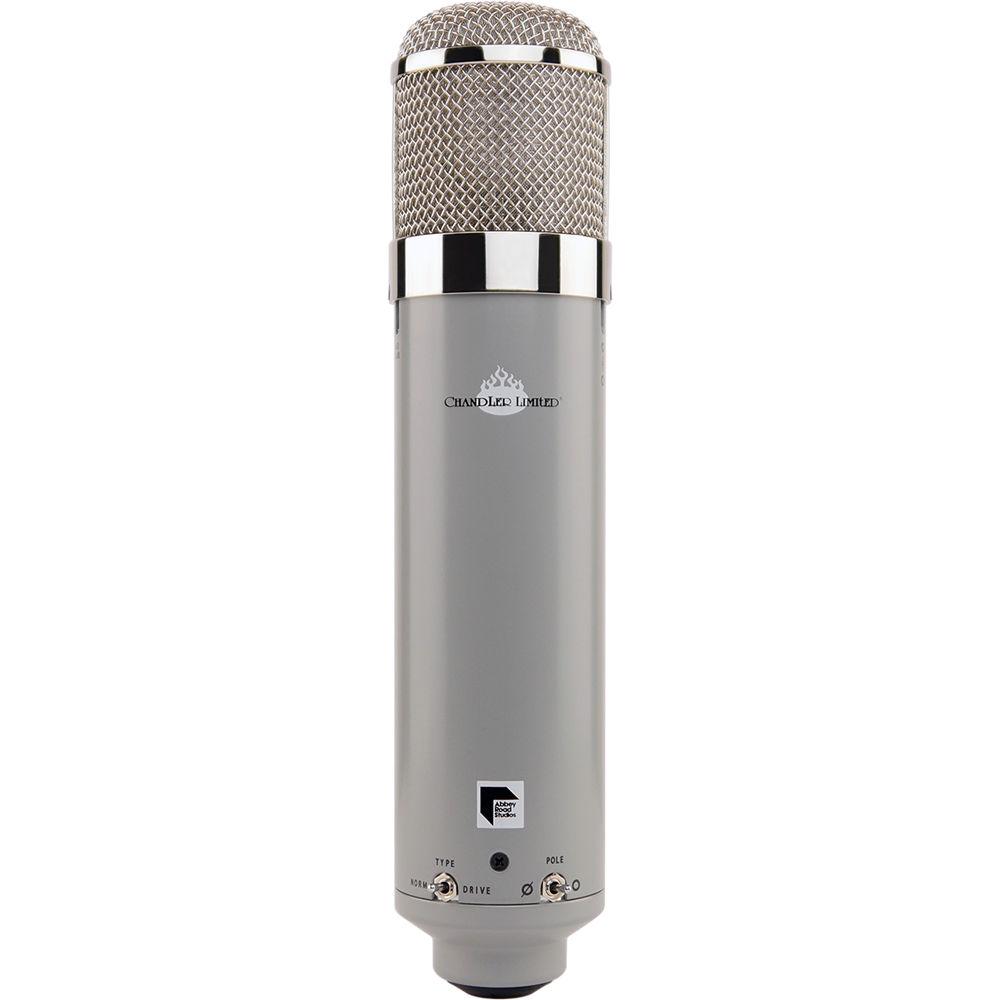

Product description The Chandler Limited REDD Microphone fuses the concept of a large-diaphragm condenser together with the well-regarded REDD.47 line amplifier. With controls for the preamplifier circuit split between the included power supply and the microphone itself, this unit aims to give you the shortest distance between two quintessential elements in your recording chain.Make no mistake, this is an unmistakably EMI-style, large-diaphragm condenser sporting a handmade, hand-milled platinum membrane. It provides both cardioid and omnidirectional polar patterns.However, as this microphone integrates with a version of the classic REDD.47 tube preamp, use of an external pre is not necessary. Many of the preamplifier’s controls are available right from the microphone. For changing the harmonic content/tonal character, NORM and DRIVE settings are found at the bottom of the mic. You’ll also note the polarity-invert switch, as well as a pad switch, the polar pattern selector, and a prominent gain knob. On the included PSU, you’ll find a low-contour control, which acts similarly to—but not exactly like—a high-pass filter, which emphasizes top-end while simultaneously tightening the lows. This feature is located on the variable-output control knob. Simply pull the knob to engage low-contour mode. A 7-pin receptacle on the PSU is provided for connecting the microphone, as is your standard 3-pin XLR jack for outputting to an interface, a converter, or a separate, dedicated preamp, should you wish to color the sound further before hitting any other processor. A shockmount, an AC cable, a pattern-select screwdriver, and a flight case are all included. - Adjustable Character
- When the toggle switch is set to NORM, the REDD Microphone preamplifier is considered in its normal operational condition. The sound, in this state, is more organic, natural, and "laid-back" in comparison to DRIVE mode. The DRIVE setting, on the other hand, has an overall effect over the adjustable gain range, both in terms of structure, and, more importantly, harmonic content. This feature is similar to the FINE GAIN on the rackmount version of the REDD.47 amplifier. However, with this unit, the setting is always fully on and non-variable. For further tonal tweaking, investigate the LOW-CONTOUR function, which triggers an alternate voicing of the microphone, one with a tighter sound that emphasizes the top-end.
- Tube-Powered
- The dedicated on-board REDD.47 Mic Amplifier circuit relies on two vacuum tubes.

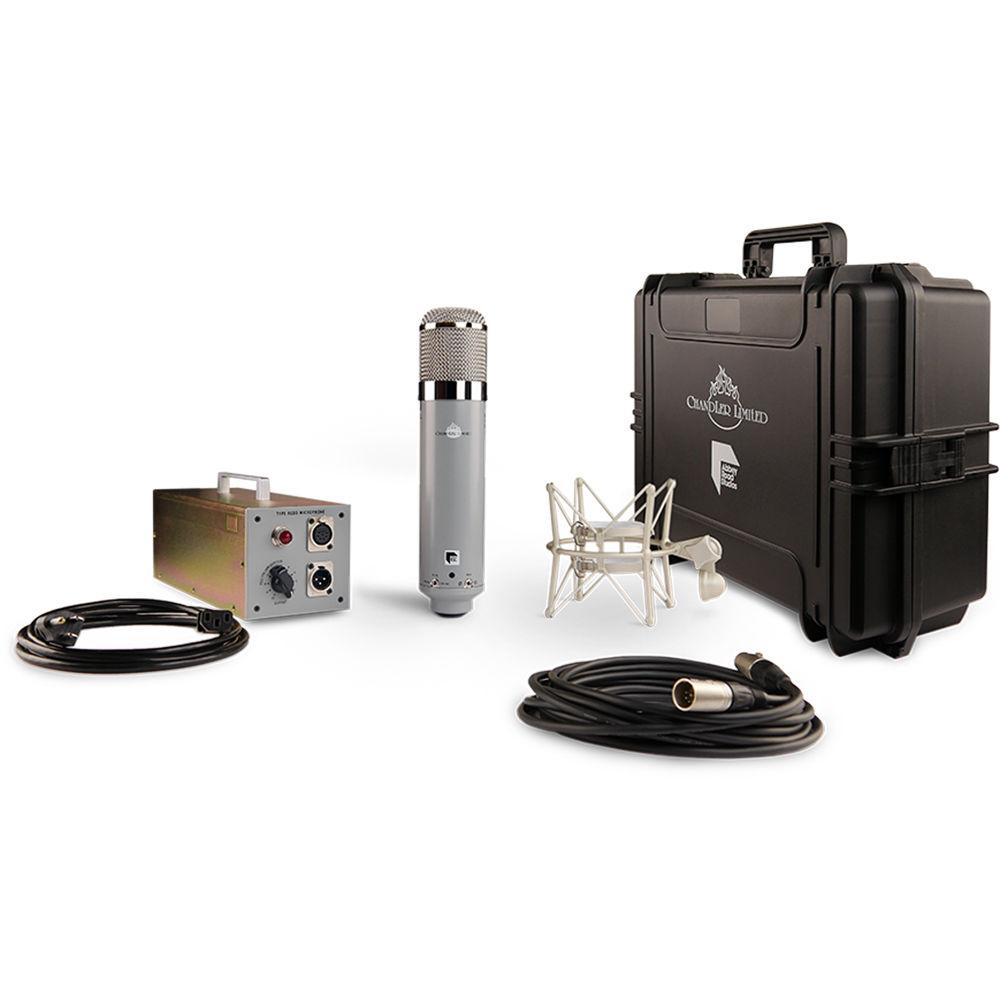

In the Box Chandler REDD Large-Diaphragm Condenser Microphone with Built-In Tube Preamplifier Power Supply 7-Pin Mic Cable (25') AC Cable (IEC Type) Shockmount Pattern-Select Screwdriver Molded Flight Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chandler REDD Large-Diaphragm Condenser Microphone with Built-In Tube Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChandler REDD MICROPHONE Specs | | | Sound Field | Mono | | Transducer | Condenser | | Tube | Yes | | Polar Pattern | Cardioid, Omnidirectional | | Pattern Selection | Switched | | Pad | -10 dB | | | | Output Connectors | 1 x 7-Pin XLR | | Cable Length | 25' / 7.62 m | | Length | 10.97" / 27.86 cm | | Weight | 1.11 lb / 0.50 kg |
