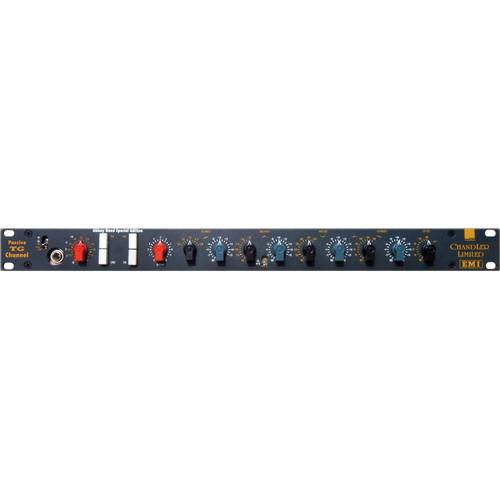

User Manual for Chandler TG Channel MKII - EQ and Mic Line Preamp Click to enlarge the picture
Contents of the user manual for the Chandler TG Channel MKII - EQ
- Product category: Channel Strips Chandler
- Brand: Chandler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chandler Channel Strips
|
User manual for the Chandler TG Channel MKII - EQ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chandler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chandler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chandler product will considerably shorten its lifespan!
|
Product description The Chandler Limited TG Channel MKII is a single-rackspace EQ and mic/line preamp with a vintage sound. Its circuit design comes from classic studio gear used at Abbey Road Studios during the Beatles era.
The EQ contains both passive and active sections, and uses circuitry replicated from the TG12410 Transfer, a console that was the mastering counterpart of the "Beatles Desks." Chandler used the original design information and circuit-board drawings, which were provided by Abbey Road. The passive portion of the EQ is all inductor based. The active part uses discrete amplifiers and transformers from Chandler Limited's TG1 Limiter and the TG2 preamp. The EQ sound has been compared to that of Pultec and Lang program EQs, but with TG circuitry.
The preamp section comes from the TG2, which is based on the EMI TG12428 preamp, also from Abbey Road. The output knob functions like a console fader, allowing you to adjust the output to compensate for the input level. As a result, you can push the input without distorting your recorder.
The TG Channel MKII is powered by Chandler Limited's PSU-1 power supply, which must be purchased separately. - Vintage Design
- Circuitry replicates that of gear used in Abbey Road Studios during the Beatles era, including the TG12410 Transfer console and the EMI TG12428 preamp.
- Input Control
- Governs either the 600Ω mic input or the 10kΩ line input. The 15-position switch gives a large range of control for normal and not-so-normal uses.
- Direct In
- Bypasses the mic-in transformer and jacks directly into the high-impedance microphone circuitry
- Output Control
- Functions as a console fader and is placed after the input stage and before the output stage. It allows for trimming of the input signal, and lets the user run the input very hot (for extra coloration) without distorting the recorder.
- Front-Panel Switches
- Phase, Mic/line, EQ, and 48V phantom power.
- High Boost
- A capacitor-based high-boost control with 18 dB of gain and a shelving characteristic.
- Mid Boost
- An inductor-based mid-frequency peak with 18 dB of boost and a high Q switch to sharpen the curve.
- Mid Cut
- A mid-frequency EQ with 20 dB of cut and six frequency points set at a very sharp Q. It's specially designed to fix problem areas.
- Low Boost
- The Low Boost control has 20 dB of gain and a select switch that combines shelf and peak settings.
- Low Cut
- The Low Cut switch has five positions and the slope is relatively gentle.
In the Box Chandler TG Channel MKII - EQ and Mic/Line Preamp XLR Cable for Connecting to PSU-1 Power Supply (not included) One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chandler TG Channel MKII - EQ and Mic Line Preamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChandler TG Channel MKII Specs | Number of Channels | Single | | Inputs | 1 x 1/4" TS Direct (unbalanced) 1 x XLR Mic/Line (balanced) | | Outputs | 1 x XLR (balanced) | | Frequency Response | Not Published By Manufacturer | | | | Gain Range | Mic -5 dB to 65 dB
Line -15 dB to +35 dB | | Input Impedance | 600Ω Mic, 10kΩ Line | | Output Impedance | 600Ω | | Phantom Power | 48V | | | | Filter Type | Low Cut, Low Boost, Mid Cut, Mid Peak, High Shelf | | EQ Frequency Bands (Fixed) | Low Cut: 30, 60, 90, 150 and 300 Hz
Low Boost (+20 dB): 50, 70, 100, 200 Hz (peak) 100, 200 (shelf)
Mid Cut (-20 dB): 300, 400, 500, 600, 700, 850 Hz
Mid Boost (+18 dB): 1.2, 1.8, 2.2, 3,9, and 5.8 kHz
High Boost (+18 dB): 6.8, 8.1, 12, and 16 kHz | | | | Controls | 9 x Rotary EQ Controls
1 x Phase Switch
1 x Mic/Line Switch
1 x 48V Phantom Power Switch
1 X EQ In Switch
1 x Line Switch
1 x Input Control
1 x Output Control | | Power Supply | Requires Chandler PSU-1 Power Supply (not included) | | Dimensions (WxDxH) | 19 x 12 x 2" (483 x 305 x 51 mm) | | Weight | 13 lbs (5.9 kg) |
