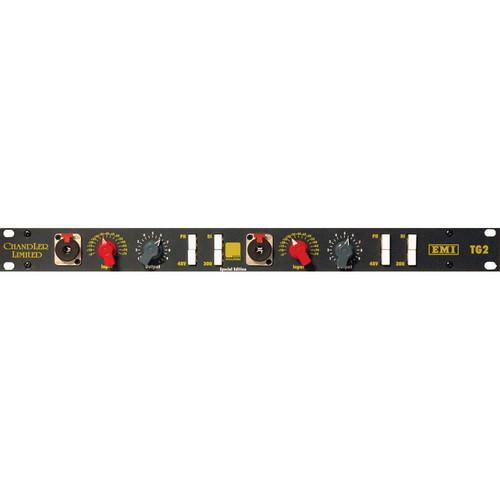

User Manual for Chandler TG2 Dual-Channel Microphone Preamplifier DI Click to enlarge the picture
Contents of the user manual for the Chandler TG2 Dual-Channel Microphone Preamplifier DI
- Product category: Microphone Preamps Chandler
- Brand: Chandler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chandler Microphone Preamps
|
User manual for the Chandler TG2 Dual-Channel Microphone Preamplifier DI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chandler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chandler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chandler product will considerably shorten its lifespan!
|
Product description The Chandler TG2 Dual-Channel Microphone Preamplifier / DI is a recreation of the rare EMI TG12428 preamp used in the late 1960s and early 1970s EMI/Abbey Road recording and mastering consoles. The sound was used on many famous recordings done at Abbey Road including The Beatles "Abbey Road" and Pink Floyd "Dark Side of the Moon." Chandler's version was remade from original design notes and circuit board drawings, provided by Abbey Road and EMI.
The TG2 preamplifier features the same discrete transformer-balanced amplifiers as Chandler's renowned TG-series limiter and offers smooth tone with an open, clear top end. In fact, the TG2 has a small rise in its high-frequency response and some warmth-inducing distortion which contribute to its sound. The preamplifier requires Chandler's PSU-1 MKII power supply to operate, sold separately. In the Box Chandler TG2 Dual-Channel Microphone Preamplifier / DI Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Chandler TG2 Dual-Channel Microphone Preamplifier DI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChandler TG2 Specs | Number of Channels | 2 x Mono Mic/DI | | Circuit Design | Discrete, Transistor | | Inputs | 2 x XLR balanced
2 x 1/4" TS Hi-Z | | Gain Range | +5 to +75 dB | | Input Impedance | 300Ω or 1200Ω, switchable | | Phantom Power | +48V | | Output | 2 x XLR balanced
both channels can be summed to one XLR | | Output Impedance | 600Ω | | Maximum Output Level | +28 dB | | Power Requirement | Chandler PSU-1 MKII is required for operation (sold separately) | | Dimensions (WxDxH) | 19 x 12 x 1.75" (48.26 x 30.48 x 4.45 cm) | | Weight | 12 lb (5.44 kg) | | | | Package Weight | 13.6 lb | | Box Dimensions (LxWxH) | 22.6 x 15.1 x 8.8" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 93 owners. Add your rating and experience with the product.
