User Manual for ChargeHub X7 7-Port USB SuperCharger Domestic Travel Pack Click to enlarge the picture
Contents of the user manual for the ChargeHub X7 7-Port USB SuperCharger Domestic
- Product category: Hubs ChargeHub
- Brand: ChargeHub
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ChargeHub Hubs
 |
User manual for the ChargeHub X7 7-Port USB SuperCharger Domestic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ChargeHub product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ChargeHub user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ChargeHub product will considerably shorten its lifespan!
|

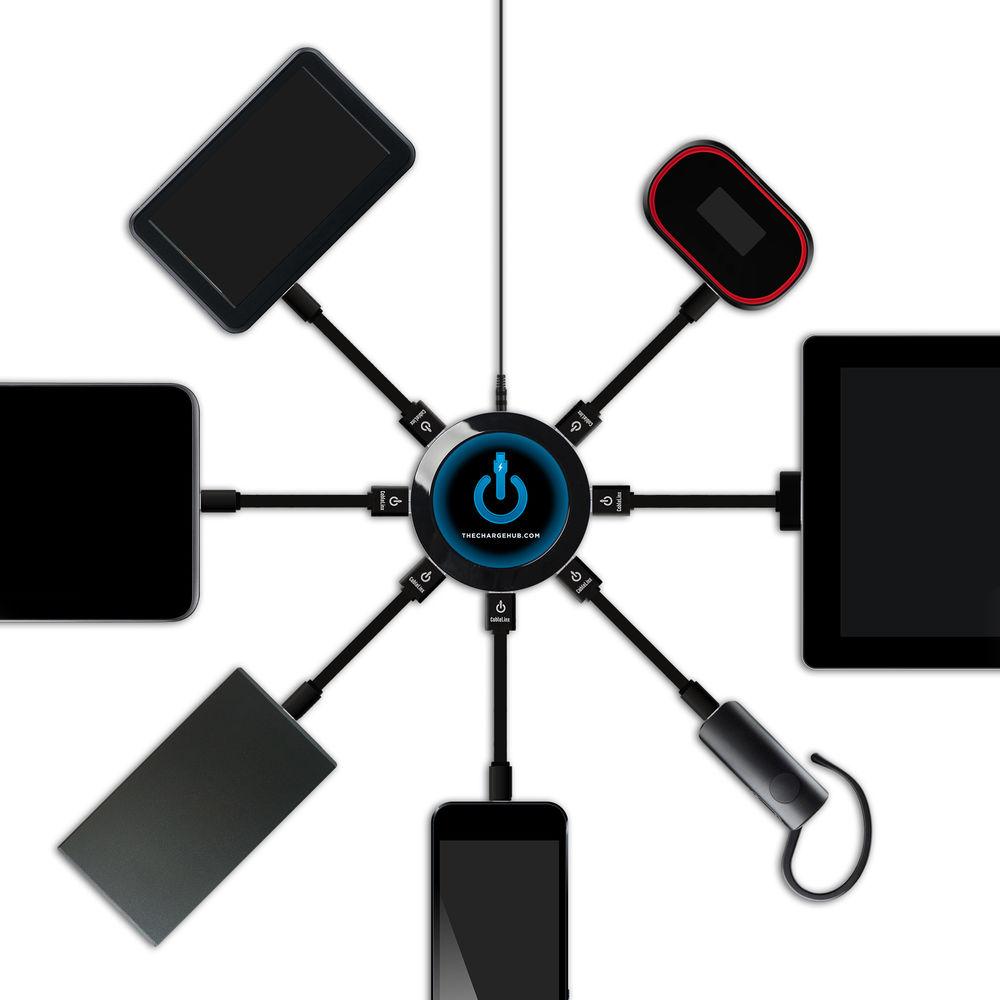

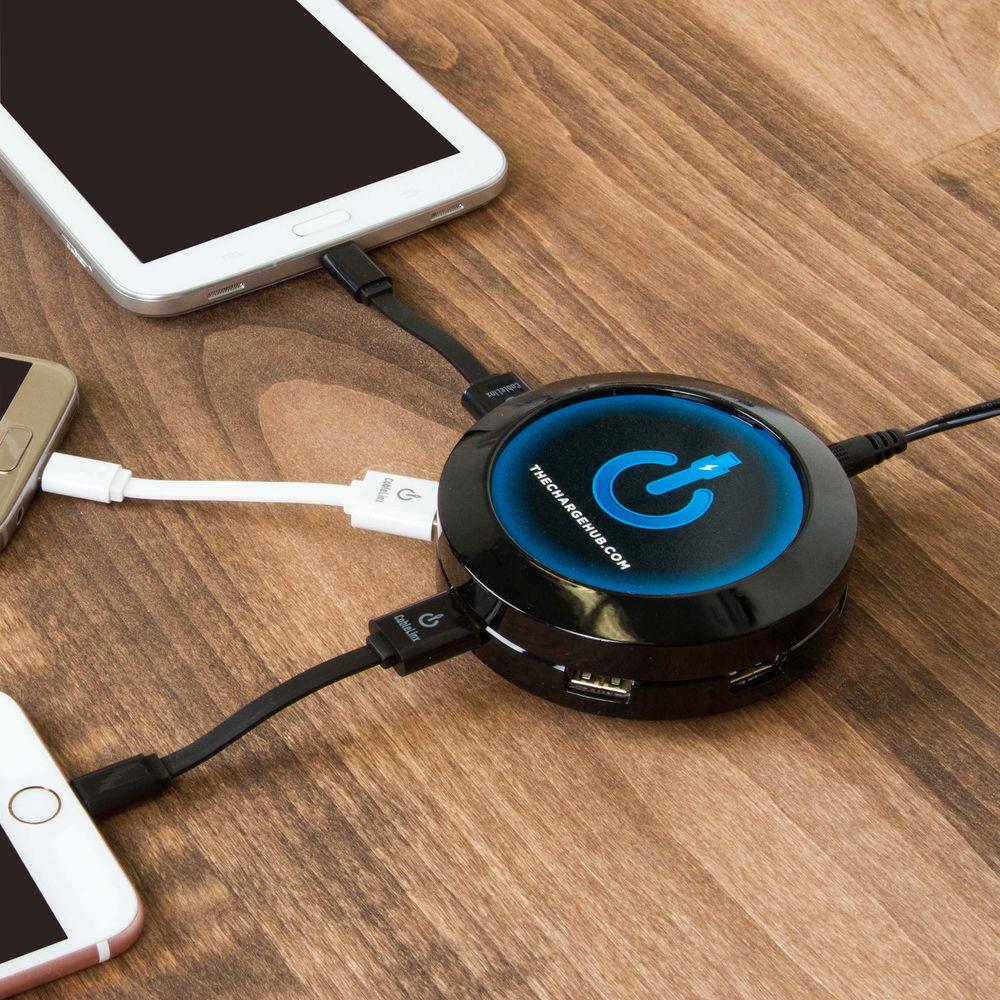

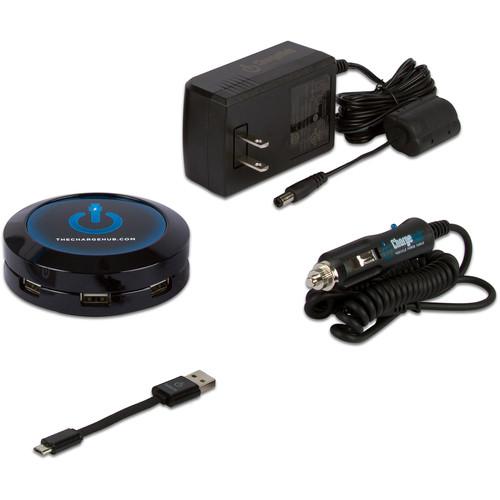

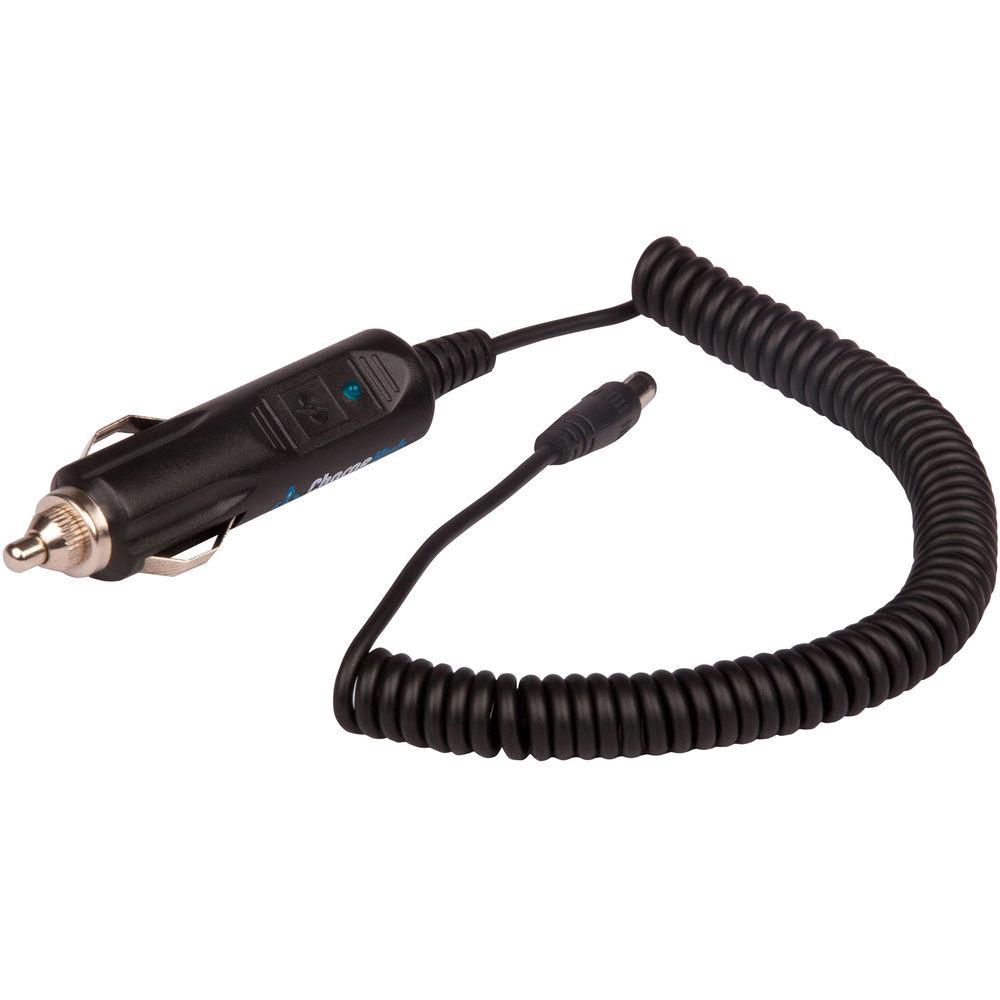

Product description The ChargeHub X7 7‑Port USB SuperCharger Domestic Travel Pack includes the black ChargeHub X7 7-port round USB charging station, 48W power supply, a coiled vehicle power cable, a micro-USB to USB charge cable, and a clear lens with removable film to protect the top insert. The ChargeHub X7 allows you to charge up to seven USB devices simultaneously. It utilizes SmartSpeed Technology and provides up to 2.4A output per port (with a maximum of 8.8A). It is powered using the included 48W power supply. The unit features a soft-blue LED power indicator and an adjustable blue LED for an under-glow effect in the dark. The included vehicle power cable can be used to charge the USB supercharger in any vehicle including, cars, trucks, RV's, boats, and most airplanes. You can use the free online DesignStudio to personalize the top insert with any logo, text, graphic, or artwork. - Four Interchangeable Plugs
- Type G: 3-Prong Blades for use in United Kingdom, and Parts of Africa
Type C: Small Round Pins for use in Italy, Parts of Africa, Asia, Europe, and Russia
Type I: Flat Angle Blades for use in Australia, Argentina, and China
Type A: Flat Parallel Blades for North America, Central America, and Japan UPC: 854298007612 In the Box ChargeHub X7 7-Port USB SuperCharger Domestic Travel Pack (Black) 48W Power Supply CableLinx USB 2.0 Type-A Male to Micro-USB Male Charge & Sync Cable (3.5", Black) Vehicle Power Cable for ChargeHub Clear Lens with Removable Film Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ChargeHub X7 7-Port USB SuperCharger Domestic Travel Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersChargeHub Chargehub X7 Specs | | | Ports | 7 | | Maximum Current | Per Port: 2.4 A
Total: 8.8 A | | Input Voltage | 24 VDC | | Total Power | 44 W | | Maximum Output Voltage | 5 VDC | | Material | Polycarbonate, aluminum, rubber, and FR-4 | | Efficiency | 88% | | Certifications & Approvals | UL/cUL listed
FCC certified
Energy Level VI
RoHS compliant | | Dimensions | Unit:
3.5 x 3.5 x 1.25" (8.89 x 8.89 x 3.18 cm)
Barrel Connector:
Inner Diameter: 0.1" (2.5 mm)
Outer Diameter: 0.2" (5.5 mm) | | Weight | 1 lb (453.6 g) | | | | Material | ABS plastic | | Output Current | 2 A | | Input Voltage | 12 to 24 V | | Certifications | UL/cUL | | Dimensions | Adapter Plug Cord: 3.5 x 0.75" (8.9 x 1.9 cm)
Cord Length: 12 to 78" (30.5 to 198.1 cm) | | Weight | 1.4 oz (40 g) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 8.2 x 5.4 x 2.6" |
