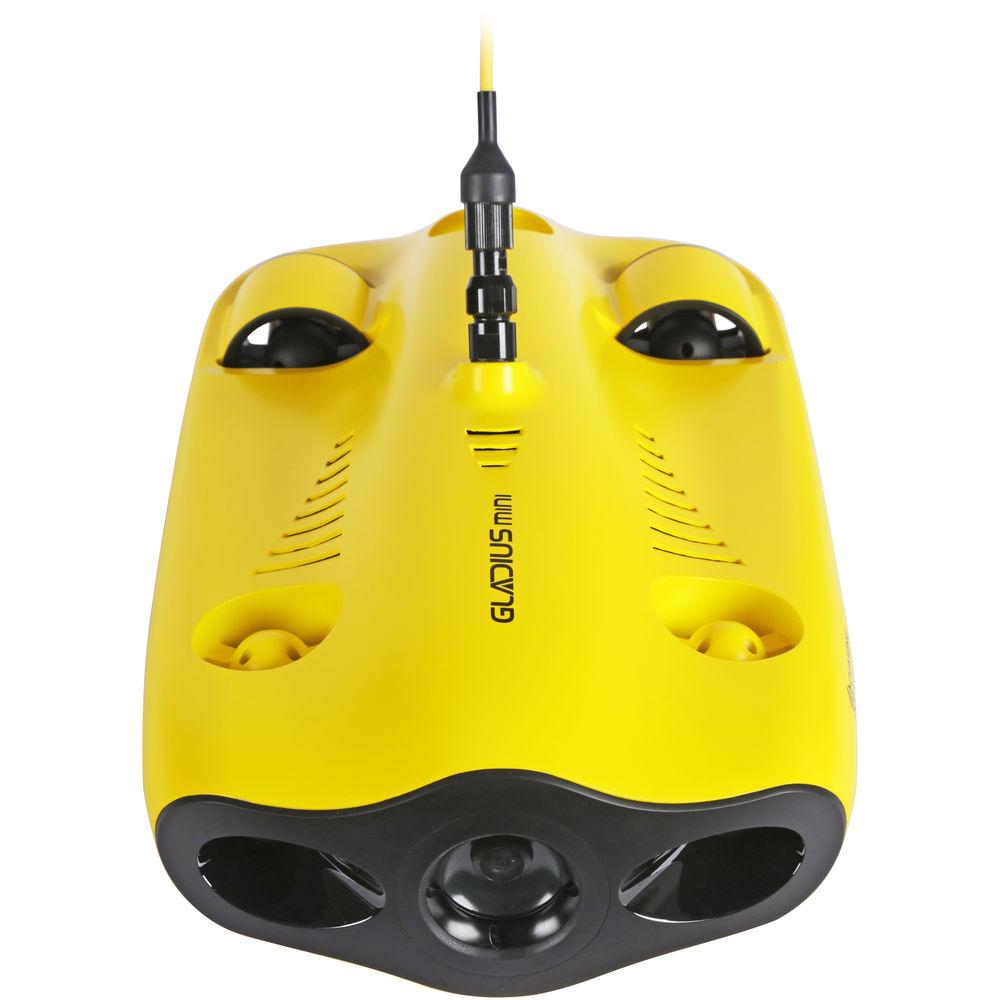

CHASING-INNOVATION Gladius Mini Underwater ROV Kit

Search your instruction manual in PDF to download

User Manual for CHASING-INNOVATION Gladius Mini Underwater ROV Kit

Click to enlarge the picture
CHASING-INNOVATION Gladius Mini Underwater ROV Kit Contents of the user manual for the CHASING-INNOVATION Gladius Mini Underwater ROV Kit
  • Product category: Underwater ROVs CHASING-INNOVATION
  • Brand: CHASING-INNOVATION
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for CHASING-INNOVATION Underwater ROVs

CHASING-INNOVATION Gladius Mini Underwater ROV Kit CHASING-INNOVATION Gladius Mini Underwater ROV Kit CHASING-INNOVATION Gladius Mini Underwater ROV Kit CHASING-INNOVATION Gladius Mini Underwater ROV Kit CHASING-INNOVATION Gladius Mini Underwater ROV Kit CHASING-INNOVATION Gladius Mini Underwater ROV Kit CHASING-INNOVATION Gladius Mini Underwater ROV Kit CHASING-INNOVATION Gladius Mini Underwater ROV Kit CHASING-INNOVATION Gladius Mini Underwater ROV Kit
User manual for the CHASING-INNOVATION Gladius Mini Underwater ROV Kit contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any CHASING-INNOVATION product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official CHASING-INNOVATION user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a CHASING-INNOVATION product will considerably shorten its lifespan!



Product description

  • 1 Marketing promotion video
  • 2 Depth lock English version
  • 3 Tilt lock English version

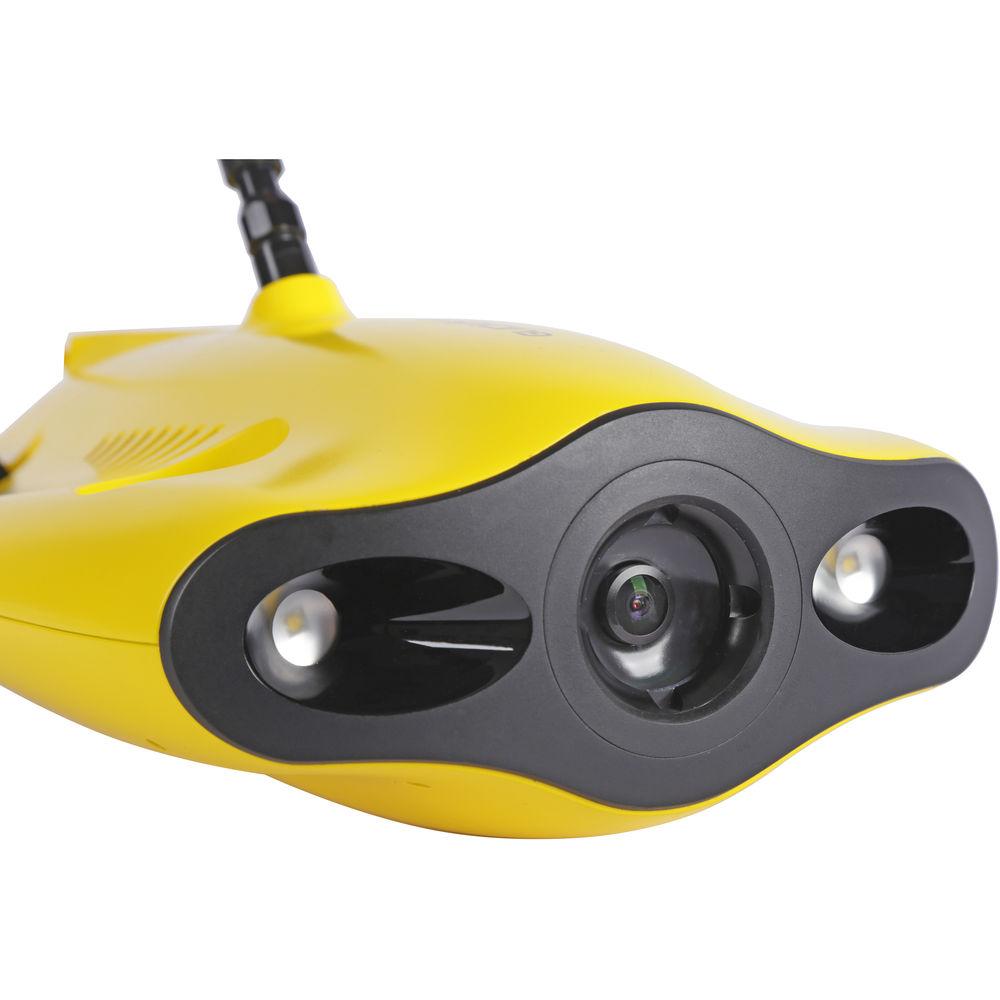

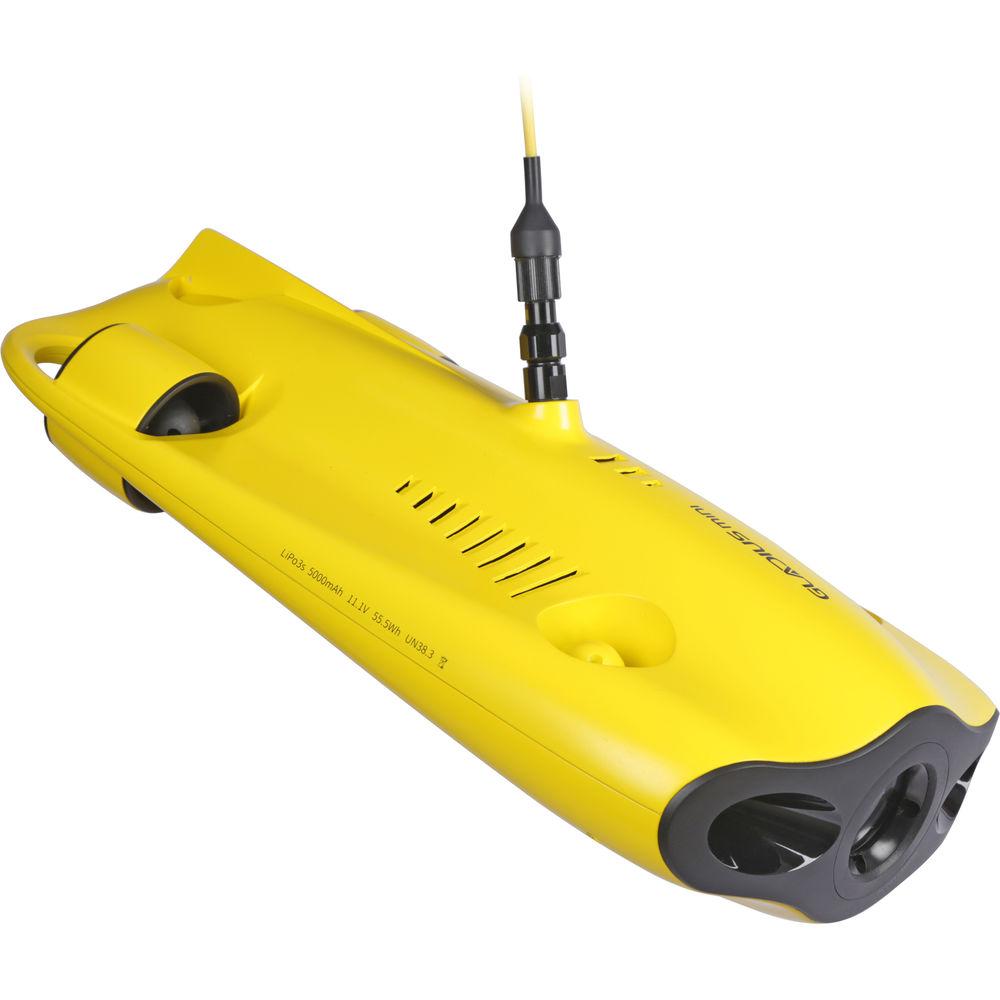

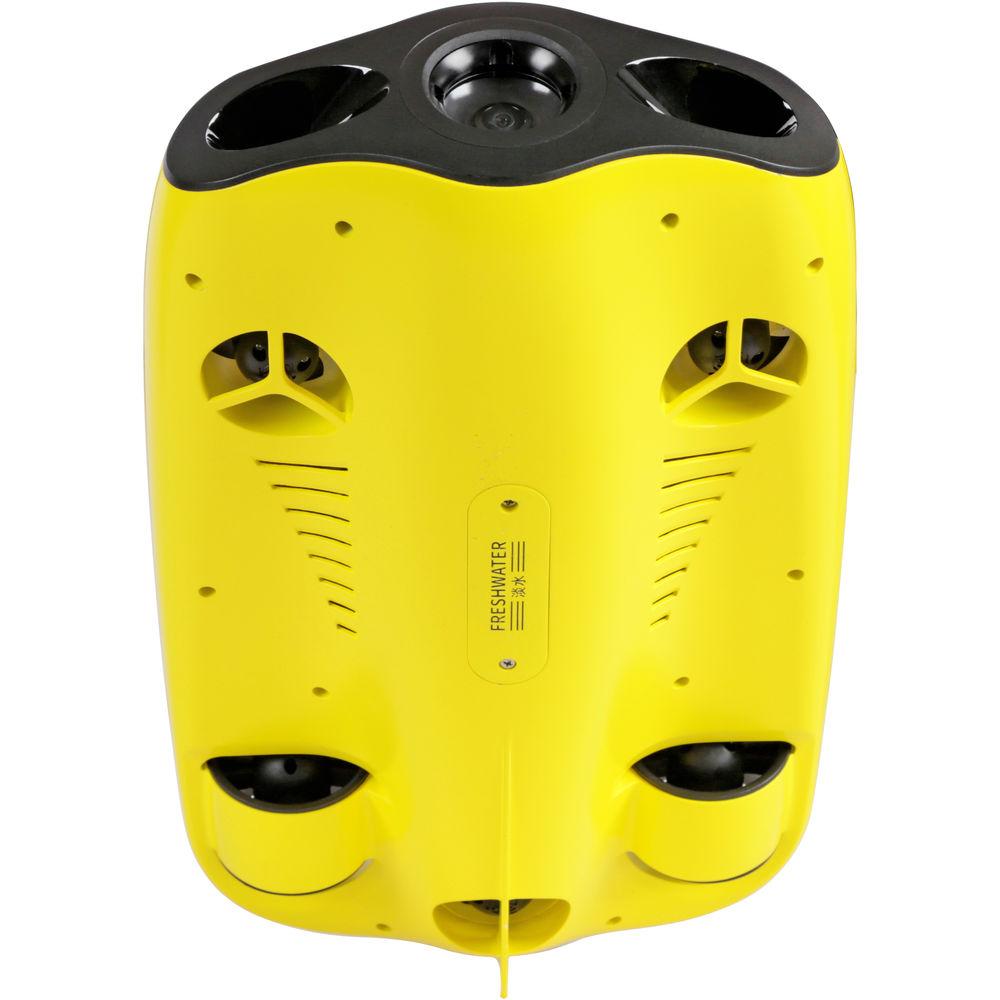

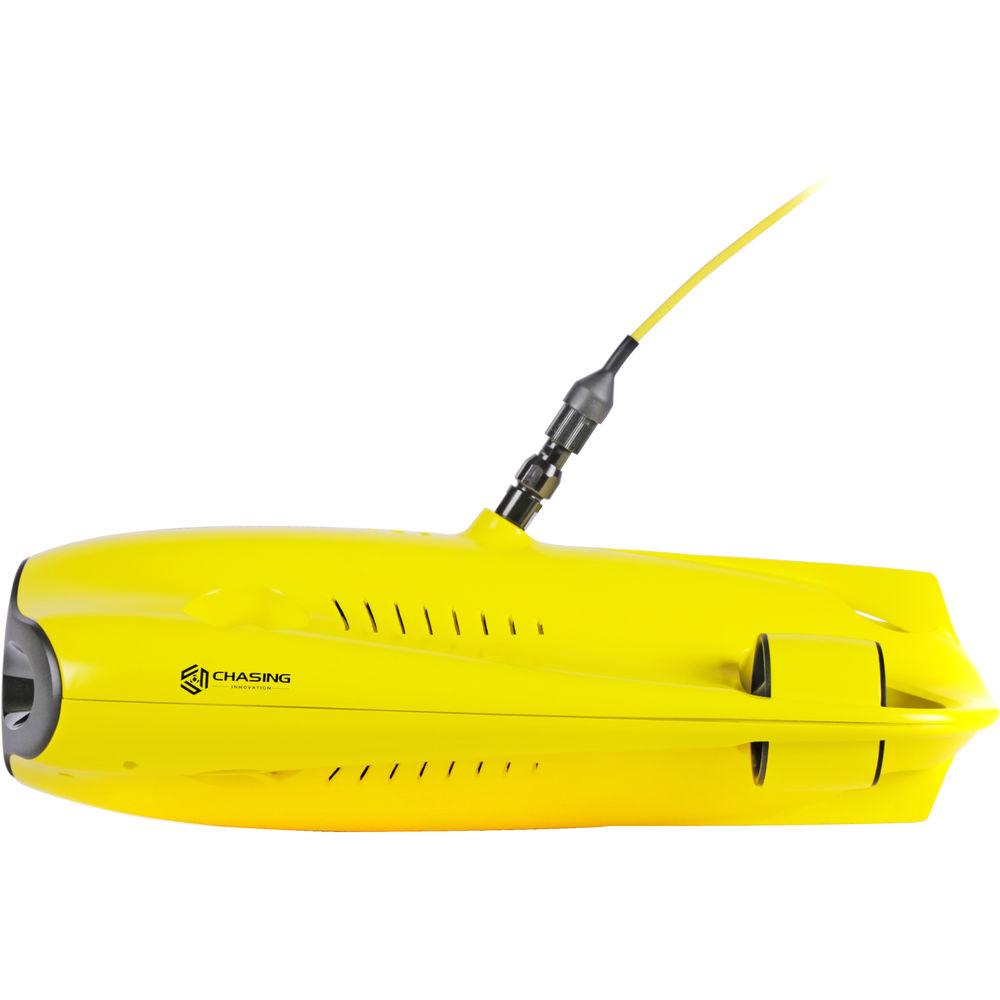

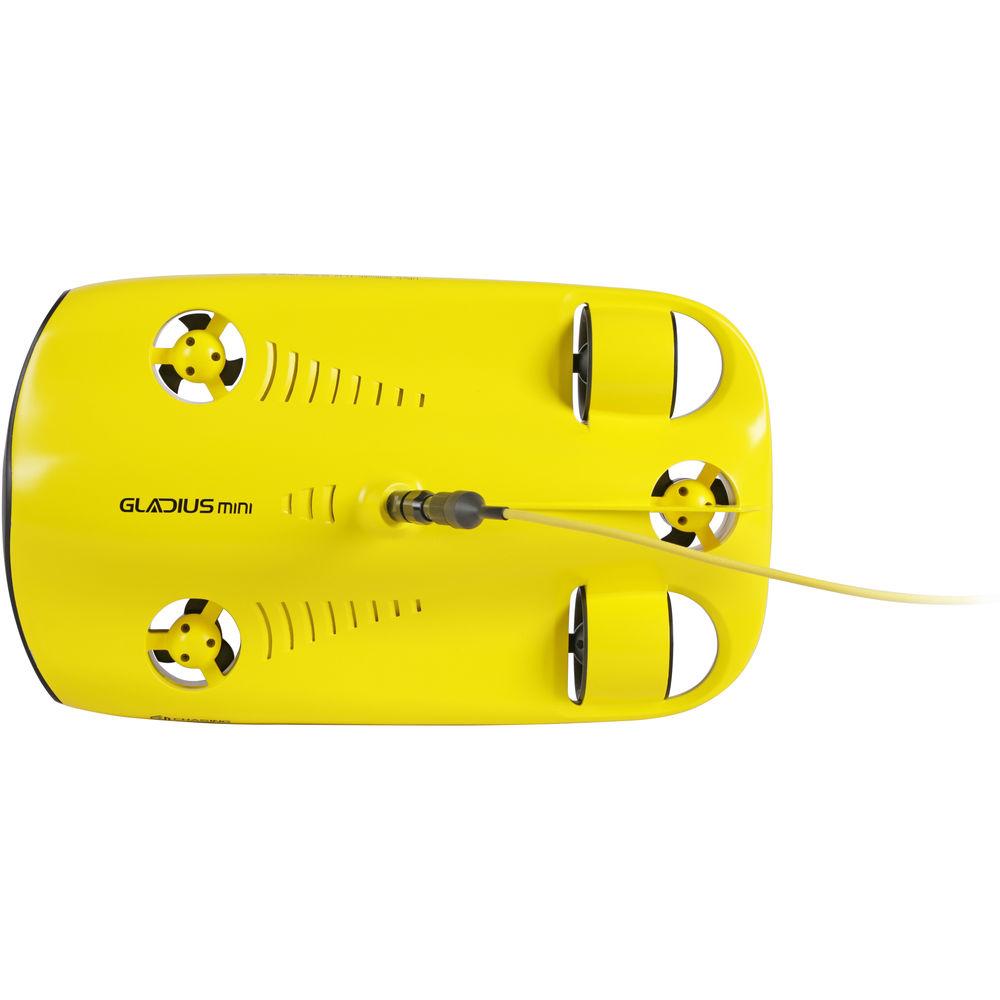

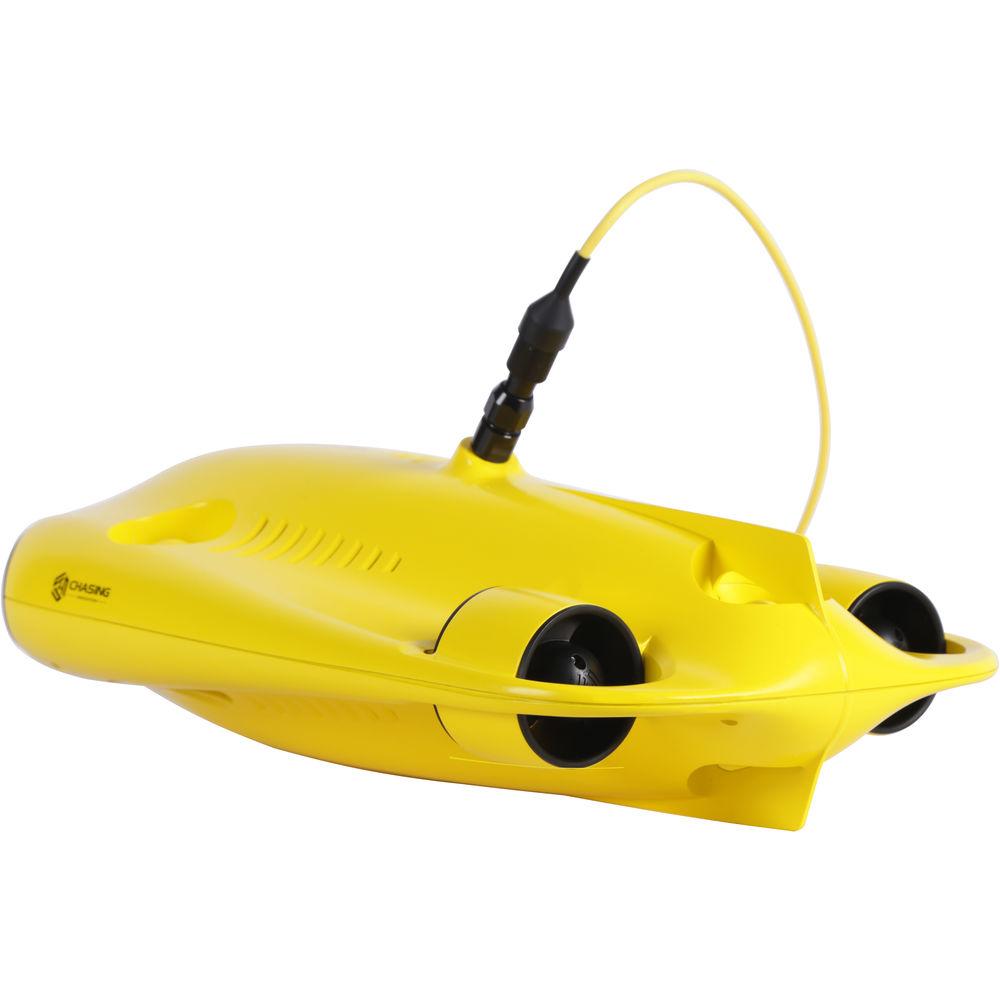

Explore, capture, and share 4K UHD video and 12Mp photos of the world beneath the surface with the Gladius Mini Underwater ROV Kit from Chasing Innovation. This bundle includes the Gladius Mini vehicle and base station, a wireless transmitter/controller, batteries and chargers, a 32GB memory card, and a 150' tether.

ROV

    Applications
    • Explore underwater environments and marine life as far as 328' below the surface
    • Inspect undersides of boats, aquaculture facilities, or infrastructure such as dams and supports
    • Grab underwater footage for content creation
    Video and Photo
    • Records 4K UHD video
    • Real-time sharing on social media
    • Captures 12MP still photos
    • 1/2.3" CMOS sensor, f/3 lens
    • Two 1200-lumen dimmable LED lights
    Power
    • Two horizontal thrusters produce top speed of 4 knots (2 meters/second)
    • Three vertical thrusters allow 1 meter/second vertical descent/ascent
    • Can move tilted up to 45° for up or down angled viewing
    • One-touch depth lock mode
    • AI intelligent control algorithm to ensure stable operation
    • Powered by one 5000mAh, 5.5Wh battery with maximum two-hour runtime

Base Station and Transmitter

    • Not for use in water
    • 164' tether for connection to ROV
    • Video game-style transmitter/remote controller connects wirelessly to station to control ROV operation
    • Smartphone can also connect to station to control ROV and camera, and receive live video feed
    • Bluetooth & Wi-Fi connectivity
    • Station contains battery with 2600mAh capacity for up to 8-hour runtime
    • Records to 64GB memory card

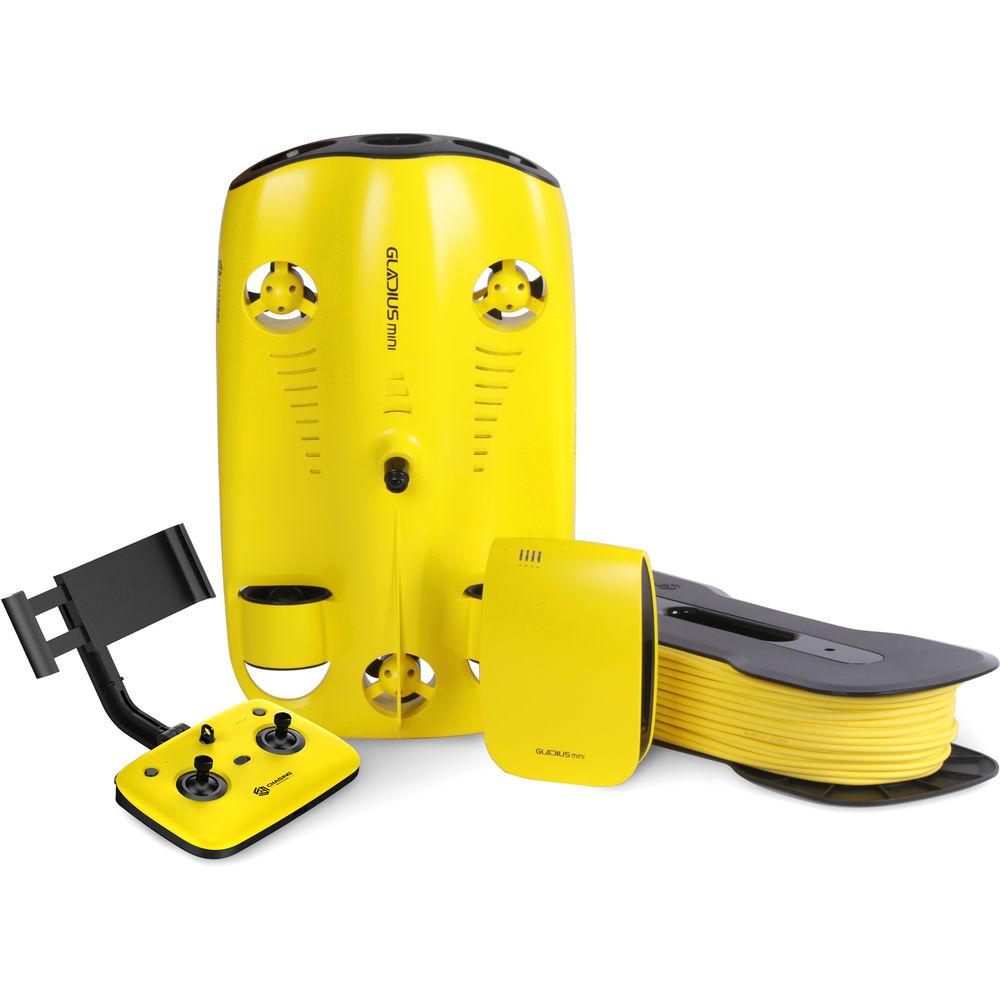

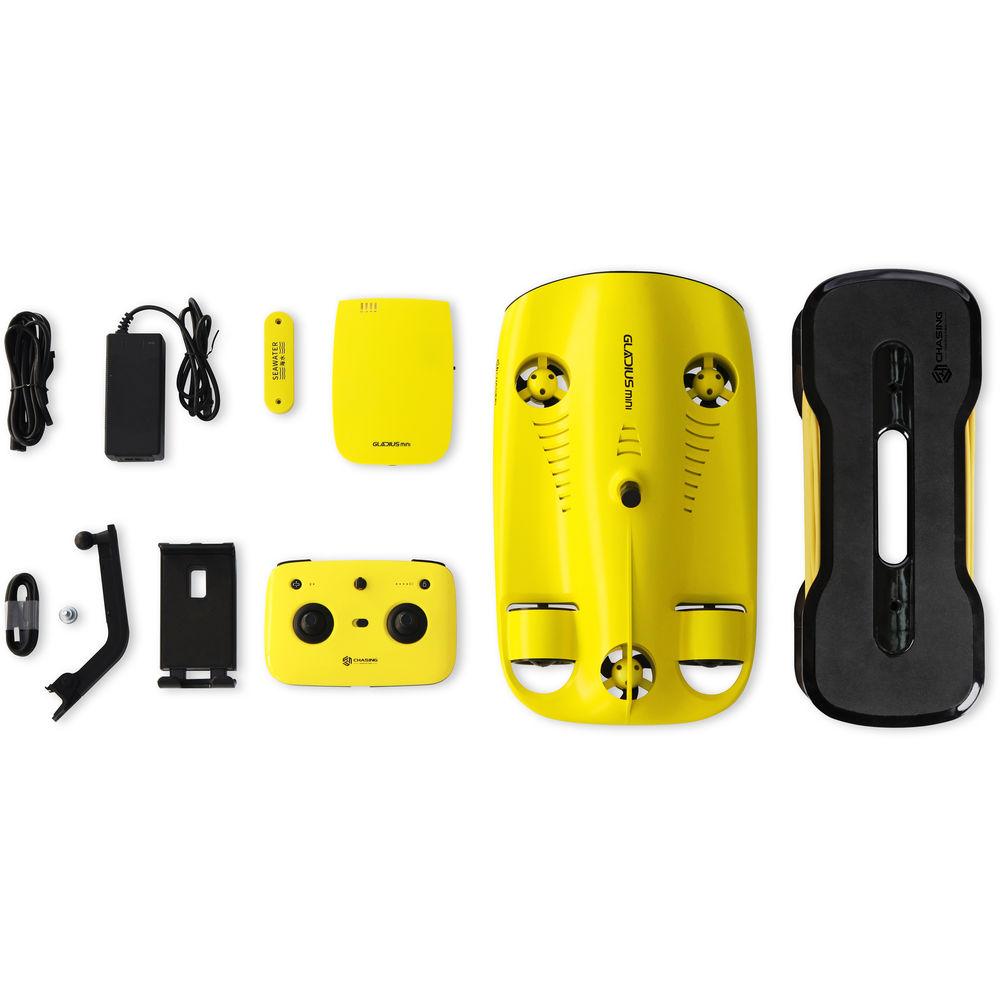

In the Box CHASING-INNOVATION Gladius Mini Underwater ROV Kit (164' Tether)
  • Base Station
  • Remote Control
  • Tether & Spool
  • 2 x Chargers for ROV & Base Station
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the CHASING-INNOVATION Gladius Mini Underwater ROV Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Download User Manual

    The user manual for the CHASING-INNOVATION Gladius Mini Underwater ROV Kit can be downloaded in PDF format at the link stated below.
    Download PDF user manual - CHASING-INNOVATION Gladius Mini Underwater ROV KitDownload PDF User Manual - https://www.search-manual.com/ upload/ chasing-innovation-gladius-mini-underwater-rov-kit-382117-user-manual.pdf
    (PDF file, 6.34 MB)


    Technical parameters

    CHASING-INNOVATION GM50 Specs

    Image Sensor 1/2.3" CMOS
    Resolution Photo:
    12 MP: 4000 x 3000
    Video:
    FHD 3840 x 2160 / 30 fps
    Full HD: 1920 x 1080 / 120 fps
    1920 x 1080 / 60 fps
    1920 x 1080 / 30 fps
    File Formats Photo: JPEG, DNG
    Video: MP4
    Aperture f/3.0
    ISO Range 100-3200
    Field of View 95°
    Bitrate 60M
    Memory 64 GB card
    Depth Rating 328' / 100 m
    Speed Max. Cruising: 4 Knots / 2 Meters per Second
    Max. Ascending/Descending: 2 Meters per Second
    Sensor IMU: 3-Axis Gyroscope/Accelerometer/Compass
    Depth Sensor: ± 0.5m
    Temperature Sensor: ± 3.6°F / 2°C
    Lighting 2 x Adjustable 1200-Lumen LEDs
    Power Rechargeable Battery: 5000 mAh, 55.5 Wh
    Charge Time: 2 h
    Runtime: 2 h
    Operating Temperature 14 to 104°F / -10 to 40°C
    Dimensions 15.2 x 8.9 x 5.4" / 38.5 x 22.6 x 13.8 cm
    Weight 5.5 lb / 2.5 kg
    Connectivity Tether: 164' / 50 m
    Battery Capacity: 2600 mAh, 28.8 Wh
    Runtime: 8 h
    Charge Time: 1 h
    Weight Approx. 3.3 lb / 1.5 kg
    Voltage 12.6 VDC V, 3 A
    Connectivity Wi-Fi connection to base station
    Operating Frequency 2.4 GHz
    Wi-Fi Range Up to 32.8' / 10 m
    Operating Temperature 14 to 113°F / -10 to 45°C
    Package Weight 13.135 lb
    Box Dimensions (LxWxH) 18.1 x 16.4 x 8.95"
