User Manual for CHAUVET DJ 4BAR Flex T USB Fixture Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ 4BAR Flex T USB
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ 4BAR Flex T USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

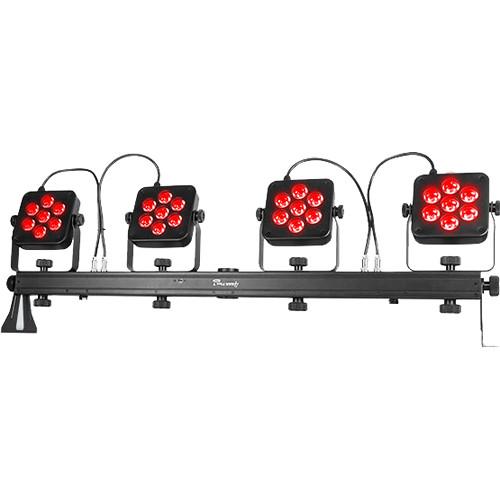

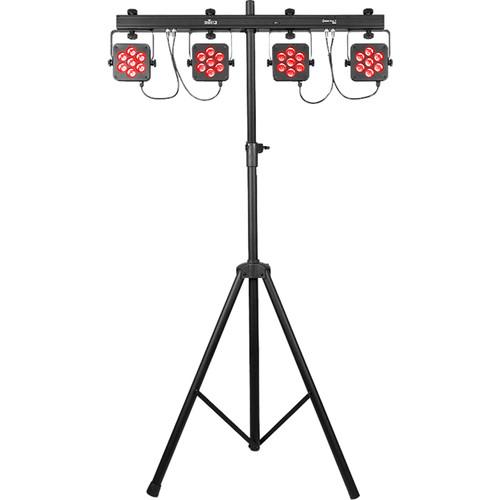

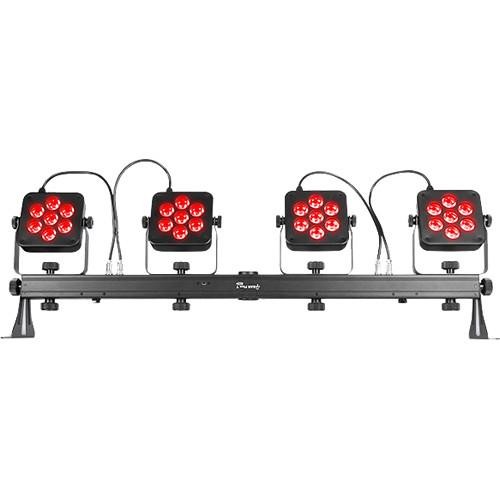

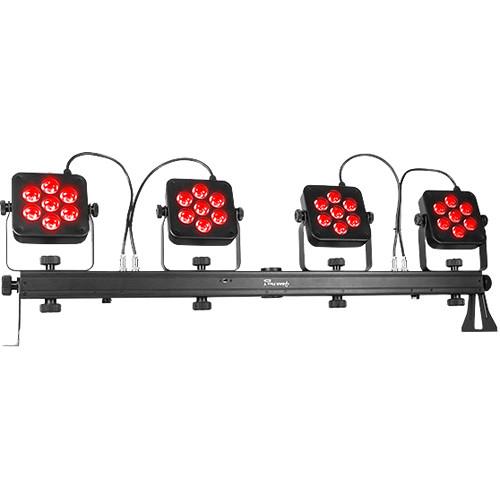

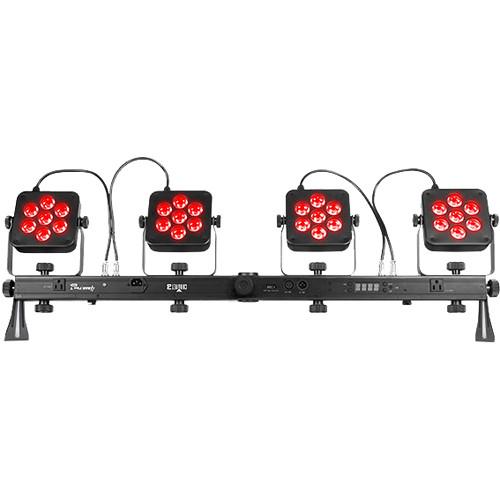

Product description The 4BAR Flex T USB Fixture from CHAUVET DJ is compatible with D-Fi USB for wireless master/slave or DMX control. It includes two L-brackets and mounts on tripods or speaker stands using the pass-through hole, without the need for additional clamps. You can mount up to four additional fixtures to the top of the 4BAR Flex T USB and supply electricity to the additional lights by using the built-in Edison plugs.You can also create large, coordinated light shows with other 4BAR fixtures in master/slave mode. - D-Fi USB compatibility for wireless master/slave or DMX control
- Supplys electricity to the additional lights by using the built-in Edison plugs
- Includes two L-brackets and carry bag
- Multiple control options include standalone, DMX mode, wireless footswitch, or the IRC-6
- Safely mounts on truss using built-in bolts

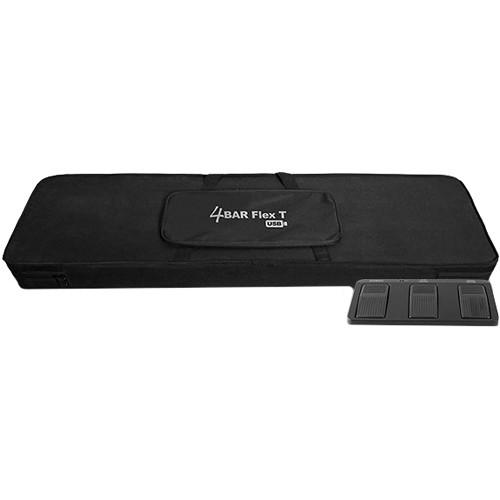

UPC: 781462216009 In the Box CHAUVET DJ 4BAR Flex T USB Fixture Power Cord Carry Bag Wireless Footswitch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ 4BAR Flex T USB Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ 4Bar Flex T USB Specs | DMX Channels | 3 or 15 | | DMX Connectors | 3-pin XLR | | Light Source | 28 LEDs (tri-color RGB)
Power: 3 W, 800 mA | | LED Life Expectancy | 50,000 hours | | Strobe Rate | 0 to 22 Hz | | Beam Angle | 18° (per pod) | | Field Angle | 31° (per pod) | | Illuminance | 2330 lux at 6.6' (2 m), per pod | | Power Linking | 8 units at 120 V
16 units at 230 V | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Consumption | 64 W, 1 A at 120 V, 60 Hz
63 W, 0.5 A at 230 V, 50 Hz | | Certifications | CE | | Stand Height | 7.2' (2.2 m) | | Controllers | Optional: IRC - 6, D-Fi USB | | Dimensions | 47.4 x 5.5 x 14.8" (120.5 x 14 x 37.5 cm)
Controller: 12.4 x 5.2 x 1.5" (31.5 x 13.2 x 3.8 cm) | | Weight | 11.6 lb (5.3 kg)
Controller: 0.8 lb (1.8 kg) |
