User Manual for CHAUVET DJ 4BAR LT USB Complete Wash Lighting System Kit Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ 4BAR LT USB Complete
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ 4BAR LT USB Complete contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

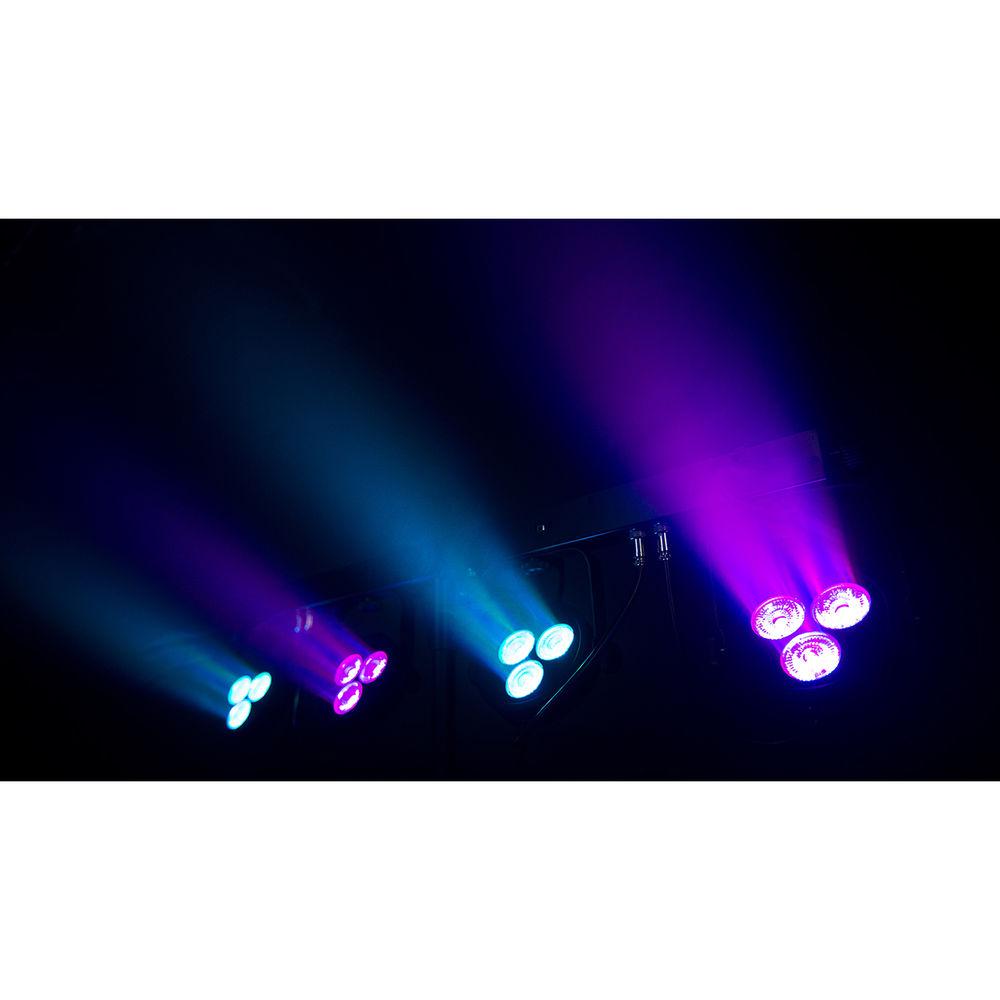

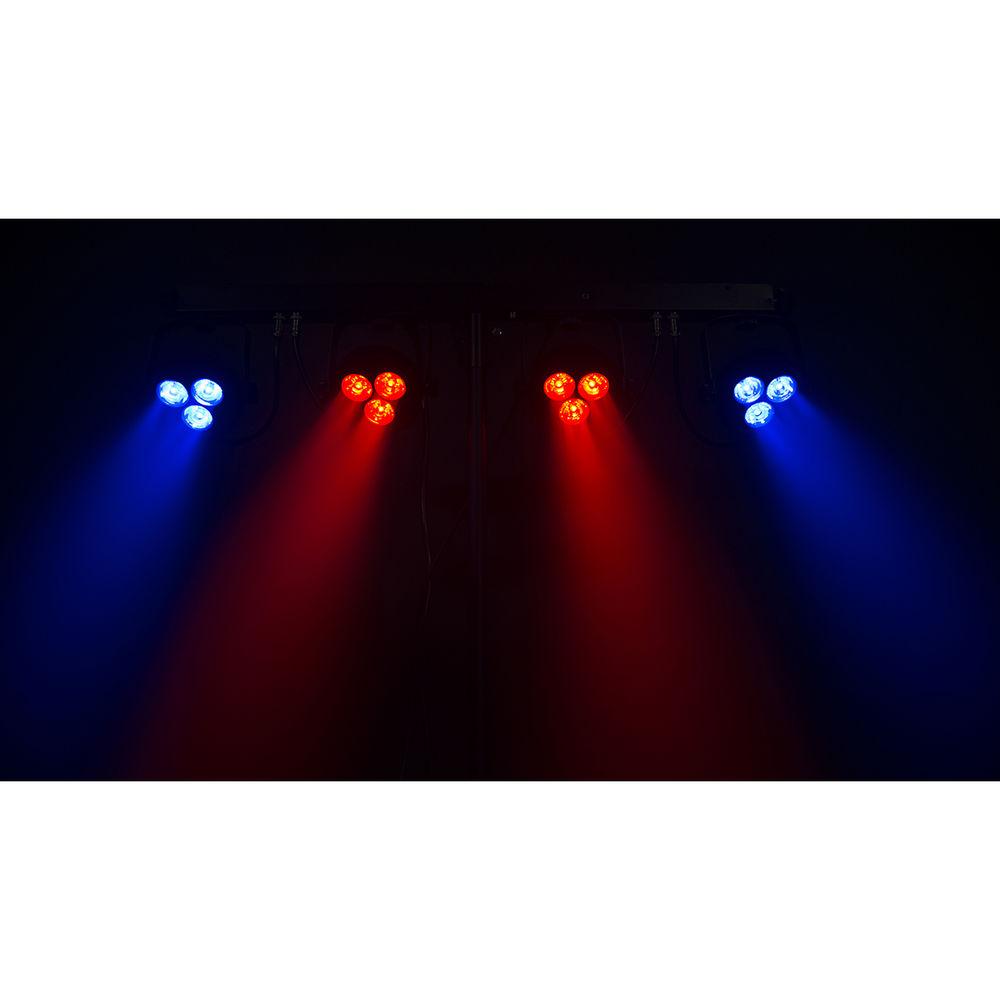

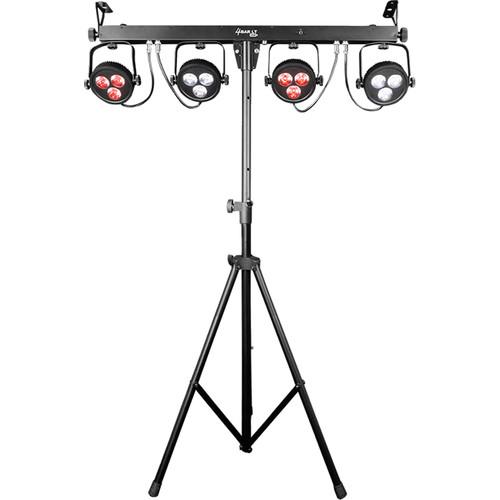

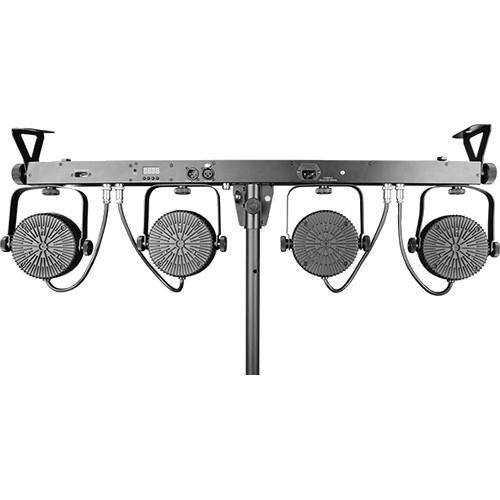

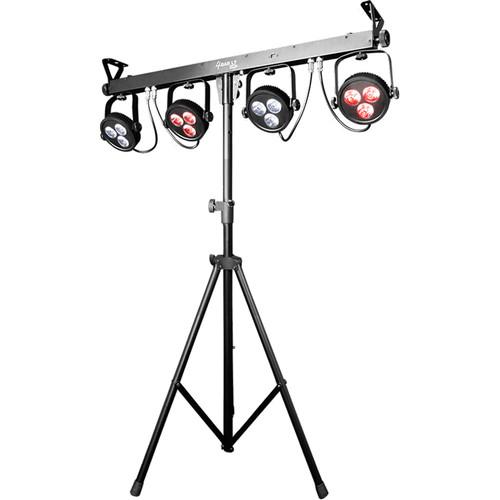

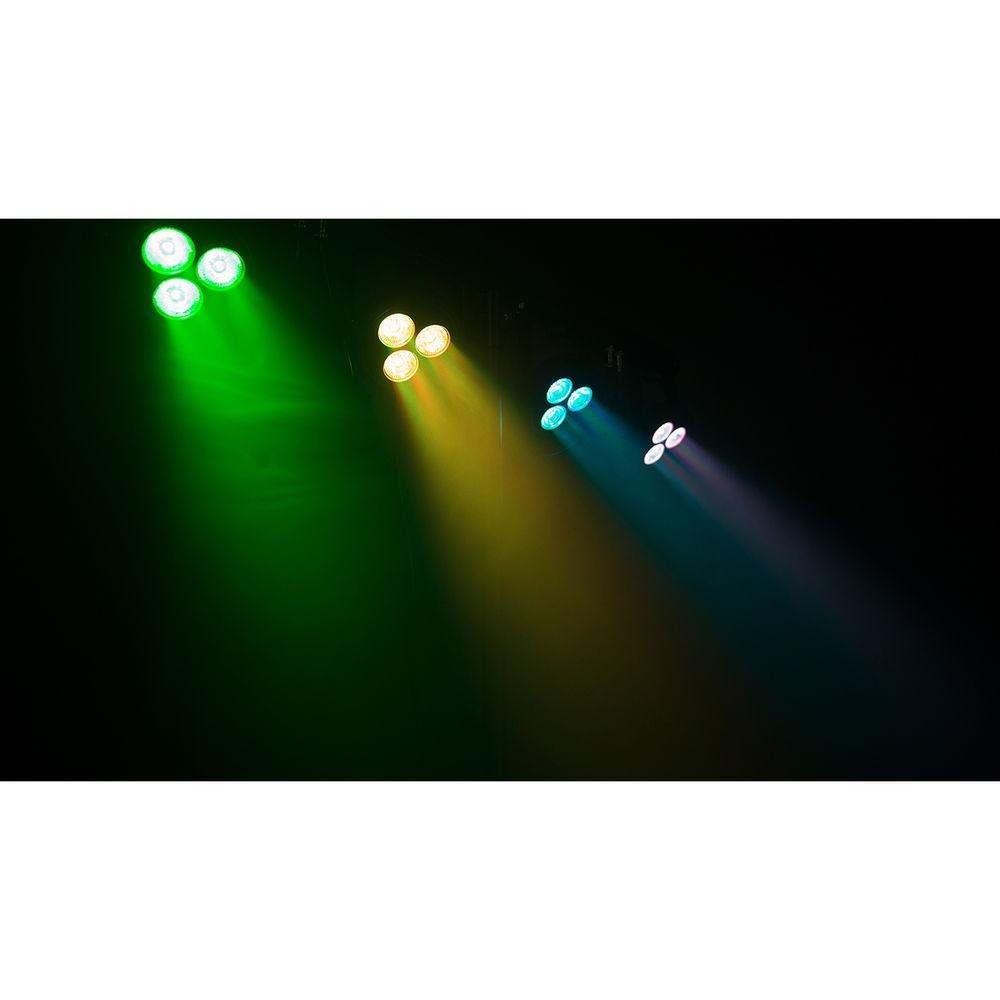

Product description The 4Bar LT USB Complete Wash Lighting System Kit from Chauvet features four fully adjustable round pods with three 9W LEDs, a tripod stand mount, a carrying bag, and a footswitch. They can be used to achieve total room or stage coverage in applications for theaters, rehearsals, bars, and more. Create coordinated light shows in Master/Slave mode and easily control static colors and automated programs with the optional IRC-6 remote (not included). The kit allows you to set up and tear down quickly using the included tripod, carry bag, and the footswitch. Features - Enhanced, brighter version of the popular Mini 4BAR 2.0 with round pods and 9W LEDs
- D-Fi USB compatibility for wireless master/slave or DMX control
- Easily set up and tear down in seconds with the included tripod, carry bags, and footswitch
- Create large, coordinated light shows with other 4BAR fixtures in master/slave mode
- Achieve total room or stage coverage with four individually adjustable heads
- Easily control static colors and automated programs with the optional IRC-6 remote
- Sound-activated programs dance to the beat of the music
In the Box CHAUVET DJ 4BAR LT USB Complete Wash Lighting System Kit Power Cord Carrying Bag Tripod Stand Footswitch Limited 2-Year Warranty for Fixtures Limited 1-Year Warranty for Bag, Trussing, and Footswitch Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ 4BAR LT USB Complete Wash Lighting System Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ 4BARLTUSB Specs | Light Source | 12 x RGB (tri-color) LEDs, 9 W (1.2 A) | | Life Expectancy | 50,000 hours | | Beam Angle | 16° | | Field Angle | 24° | | Illuminance | At 6.56' (2 m): 2,053 lux | | Strobe Rate | 0 to 22 Hz | | DMX Connectors | Input: 3-pin XLR
Output: 3-pin XLR | | DMX Channel Modes | 2 x Modes: 3 or 15 channels | | Wireless Control | D-Fi USB (available separately)
IRC-6 Remote (available separately) | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging, internal) | | Power Connectors | Input: IEC
Output: Edison
Plug: Edison | | Power Consumption | 120 V, 60 Hz: 52 W
230 V, 50 Hz: 51 W | | Operating Current | 120 V, 60 Hz: 0.8 A
230 V, 50 Hz: 0.4 A | | Fuse | T 1 A, 250 V | | Maximum Temperature | 104°F | | Cooling System | Convection | | Stand Height | 50 to 83" (127 to 211 cm) | | Dimensions (L x W x H) | 36.1 x 3.7 x 10.8" (918 x 95 x 274 mm) | | Weight | 10.8 lb (4.9 kg) | | | | Package Weight | 24.0 lb | | Box Dimensions (LxWxH) | 46.5 x 13.0 x 5.0" |
