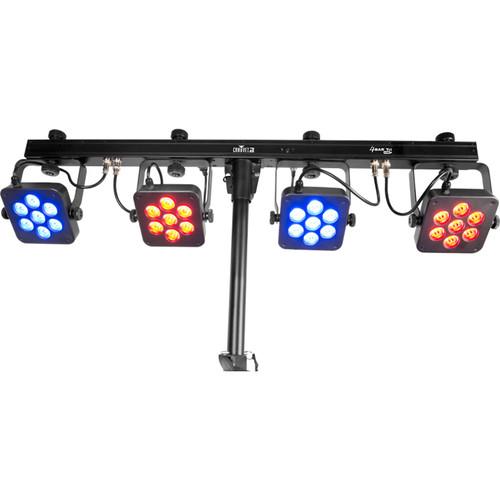

User Manual for CHAUVET DJ 4BAR Tri USB Wash Lighting Kit Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ 4BAR Tri USB Wash
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ 4BAR Tri USB Wash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

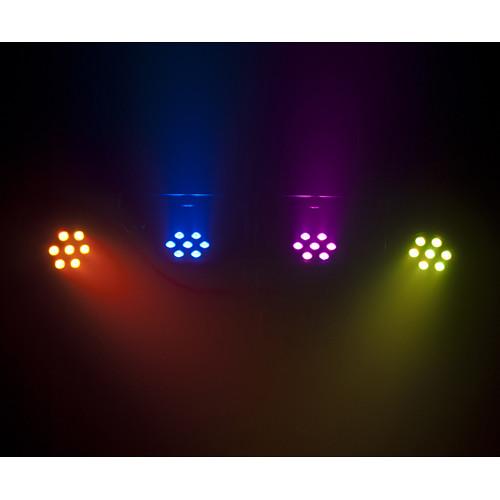

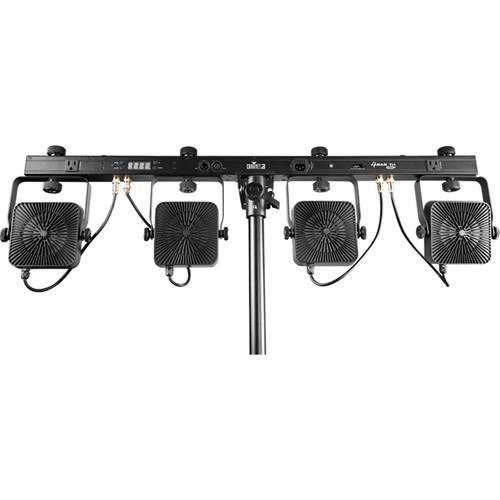

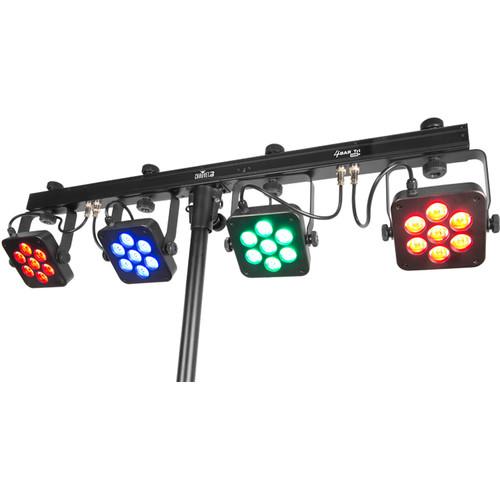

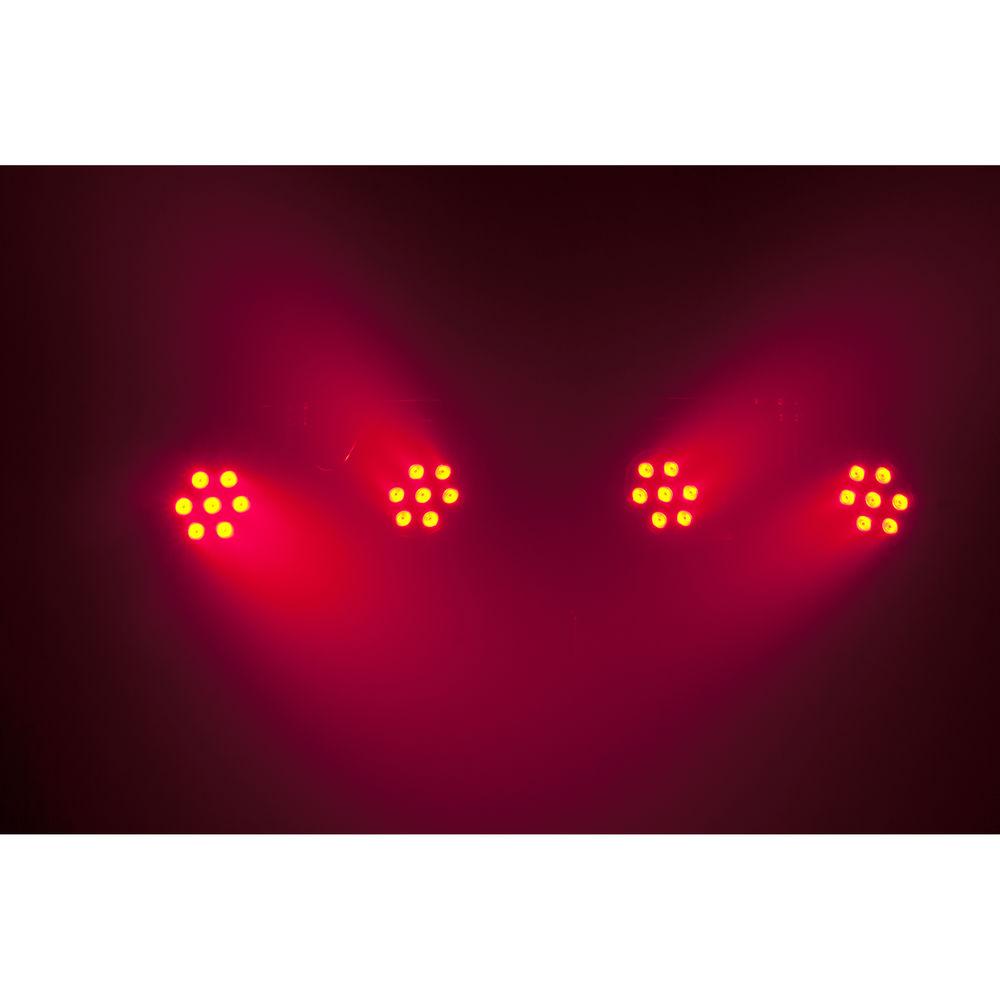

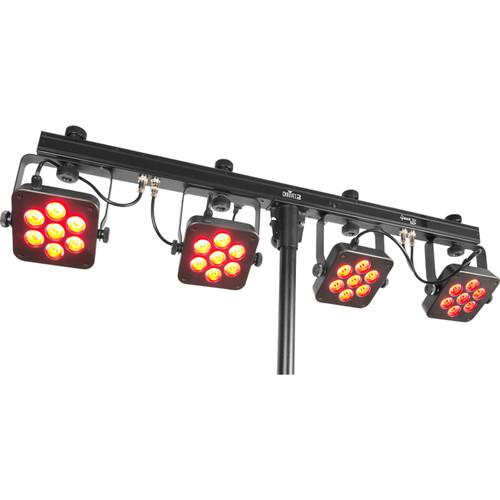

Product description The 4BAR Tri USB Wash Lighting Kit from Chauvet DJ features high-intensity, tri-color (RGB) LEDs that can be controlled wirelessly through the included footswitch or a separately sold IRC-6 controller. It offers D-Fi USB compatibility for wireless master/slave or DMX control and can achieve total room or stage coverage with four individually adjustable heads. The wash lights can be power-linked for fewer cables and extensions cords and are designed with built-in bolts for safely mounting them to a truss. The kit also includes an easy-to-use tripod stand and a carry bag. - Complete wash lighting setup with high-intensity, tri-color (RGB) LEDs
- Wireless control with included footswitch or separately sold IRC-6 controller
- Easy to set up and take down in a short amount of time
- Create large, coordinated light shows with other 4BAR fixtures using the master/slave mode
- D-Fi USB compatibility for wireless master/slave or DMX control
- Mount up to four additional fixtures to the top of the 4BAR Tri USB
- Achieve total room or stage coverage with four individually adjustable heads
- Minimize multi-colored shadows
- Increase mounting options by safely mounting to truss using built-in bolts
- Link multiple units for fewer cables and extensions cords
- Sound-activated programs dance to the beat of the music.

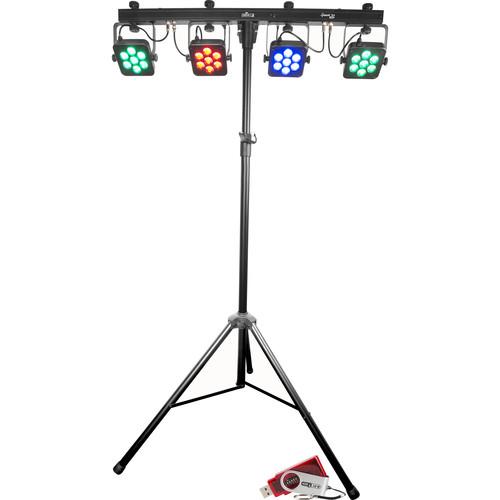

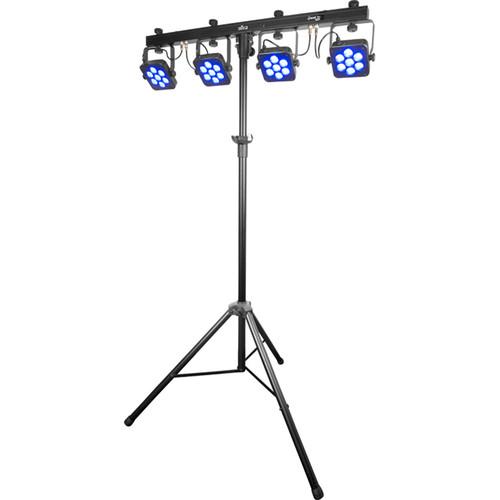

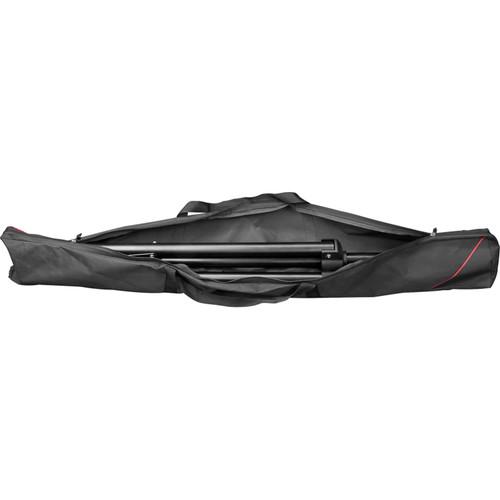

UPC: 781462206413 In the Box CHAUVET DJ 4BAR Tri USB Wash Lighting Kit Footswitch Tripod Stand Carrying Bag Limited 2-Year Warranty on Lights and Controller Limited 1-Year Warranty on Tripod Stand and Carrying Bag Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ 4BAR Tri USB Wash Lighting Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ 4Bar Tri USB Specs | DMX Channels | 3, 15 | | DMX Connectors | 3-pin XLR | | Light Source | 28 x LEDs (tri-color RGB)
3 W, 1 A
Life expectancy: 50,000 hr | | Strobe Rate | 0 to 25 Hz | | PWM Frequency | 1200 Hz | | Beam Angle | 18° | | Field Angle | 31° | | Illuminance | 2330 lux @ 2 m (per pod) | | Power Linking | 8 units @ 120 V
14 units @ 230 V | | Input Voltage | 100 to 240 VAC, 50/60 Hz | | Power and Current | 69 W, 1 A @ 120 V, 60 Hz
66 W, 0.5 A @ 230 V, 50 Hz | | Compatibility | Tripod sizes: 1.3 to 1.6" / 3.4 to 4.0 cm | | Approvals and Certifications | CE | | Dimensions | 41.3 x 2.0 x 10.6" / 104.9 x 5.1 x 26.9 cm
Controller: 12.4 x 5.2 x 1.5" / 31.5 x 13.2 x 3.8 cm
Stand height: 7.4' / 2.3 m | | Weight | 20.6 lb / 9.3 kg
Controller: 0.8 lb / 0.4 kg | | | | Package Weight | 30.0 lb | | Box Dimensions (LxWxH) | 52.0 x 18.5 x 5.0" |
