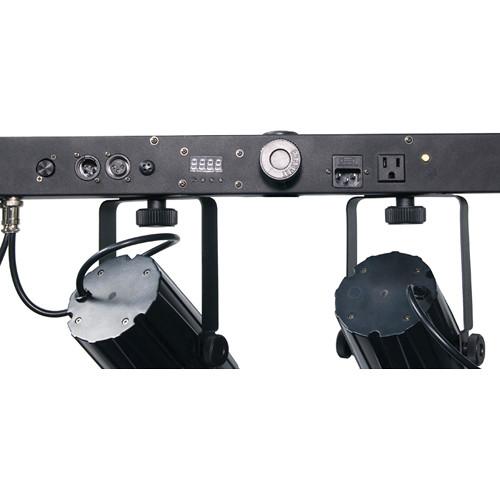

User Manual for CHAUVET DJ 4PLAY Ready-to-Go LED Moonflower Light Fixture with Colored Casing Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ 4PLAY Ready-to-Go LED Moonflower
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ 4PLAY Ready-to-Go LED Moonflower contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

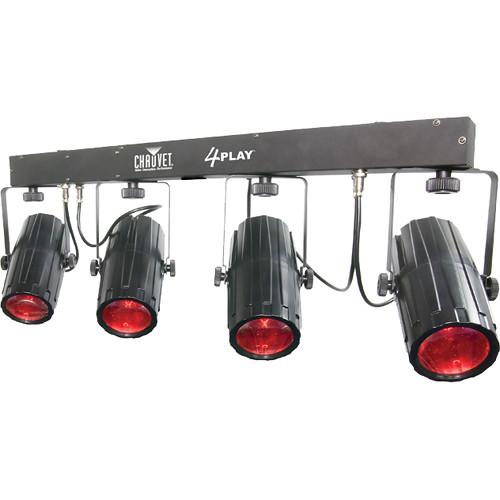

Product description The 4PLAY Ready-to-Go LED Moonflower Light Fixture from CHAUVET consists of 4 non-moving heads with colored casings and a total of 228 LEDs (48 red, 72 green, 72 blue, 36 white). Each of the individually controllable heads can be aimed to fill a room with red, green, blue, and white beams. The fixture can work with a DMX controller when linked by DMX serial connections. Synchronized shows can be generated with easy-to-access built-in automated programs in master/slave mode. The power-linking feature eliminates the need to run cables and extension cords, thereby saving time (30 units @ 120 V; 46 units @ 230 V). The 4Play Fixture can be truss mounted using the included bolts to save floor space. - 228 LEDs (48 red, 72 green, 72 blue and 36 white)
- Each color in each head is controllable for maximum flexibility
- Synchronized shows can be generated with easy-to-access built-in automated programs in master/slave mode
- Each of the 4 heads is individually adjustable and controllable, allowing the user to spread the effect as wide or as narrow as they want
- Rotating, razor-sharp beams penetrate the air (no moving heads)
- Safely mounts to most standard tripods (including 4BAR) and speaker stands
- Each head can be positioned individually to achieve maximum room coverage
- Power-linking feature eliminates the need to run cables and extension cords, thereby saving time (30 units @ 120 V; 46 units @ 230 V)
- Can be truss mounted using the included bolts or clamps (available separately) to save floor space
- Sound-activated programs respond to the beats of the music

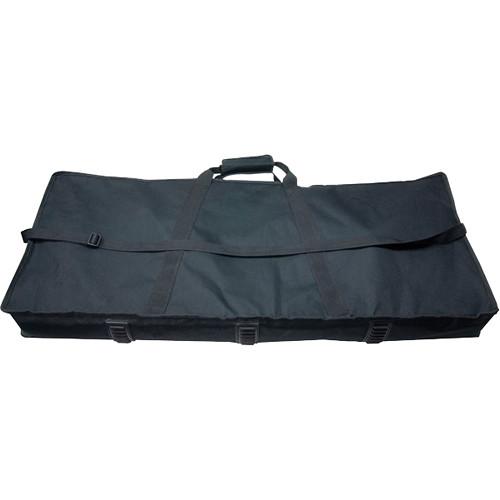

- Free carry bag included to make transportation easy
UPC: 781462204433 In the Box CHAUVET DJ 4PLAY Ready-to-Go LED Moonflower Light Fixture with Colored Casing Transport Bag Power Cable Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ 4PLAY Ready-to-Go LED Moonflower Light Fixture with Colored Casing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ 4PLAY Specs | DMX | Channel: 6
Connector: 3-pin XLR
Recommended Address: 507 (highest)
Master / Slave Connection: Yes | | Sound Mode | Sound Active Mode supported | | Light Sources | 228 LEDs (48 red, 72 green, 72 blue, 36 white) | | Operating Life | 100,000 hours | | Strobe Rate | 0 to 20 Hz | | Coverage Angle | 25° (per light) | | Tripod | Fitting Size: 1.3 to 1.5" (33 to 38 mm) | | Approvals | CE, RoHS | | Power Linking | 30 units @ 120 V; 46 units @ 230 V | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Consumption | LED: 0.25 W (20 mA)
Power:
12 W, 0.2 A @ 120 V, 60 Hz
19 W, 0.2 A @ 230 V, 50 Hz | | Ambient Temperature | 104°F (40°C) (maximum) | | Dimensions | 33.0 x 3.5 x 12.5" (83.8 x 8.9 x 31.8 cm) | | Weight | 12.7 lb (5.7 kg) | | | | Package Weight | 16.8 lb | | Box Dimensions (LxWxH) | 36.0 x 15.0 x 5.0" |
