User Manual for CHAUVET DJ COLORband Pix USB LED Wash Light Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ COLORband Pix USB LED
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ COLORband Pix USB LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

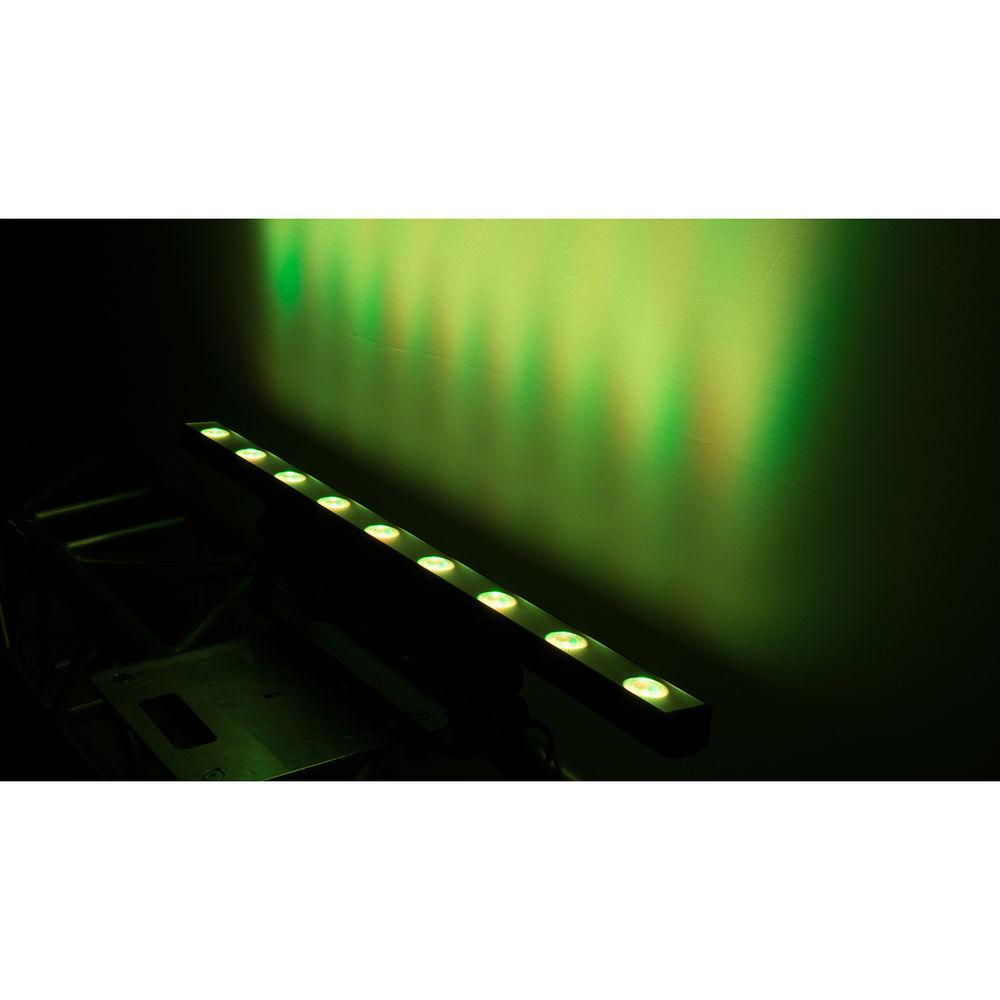

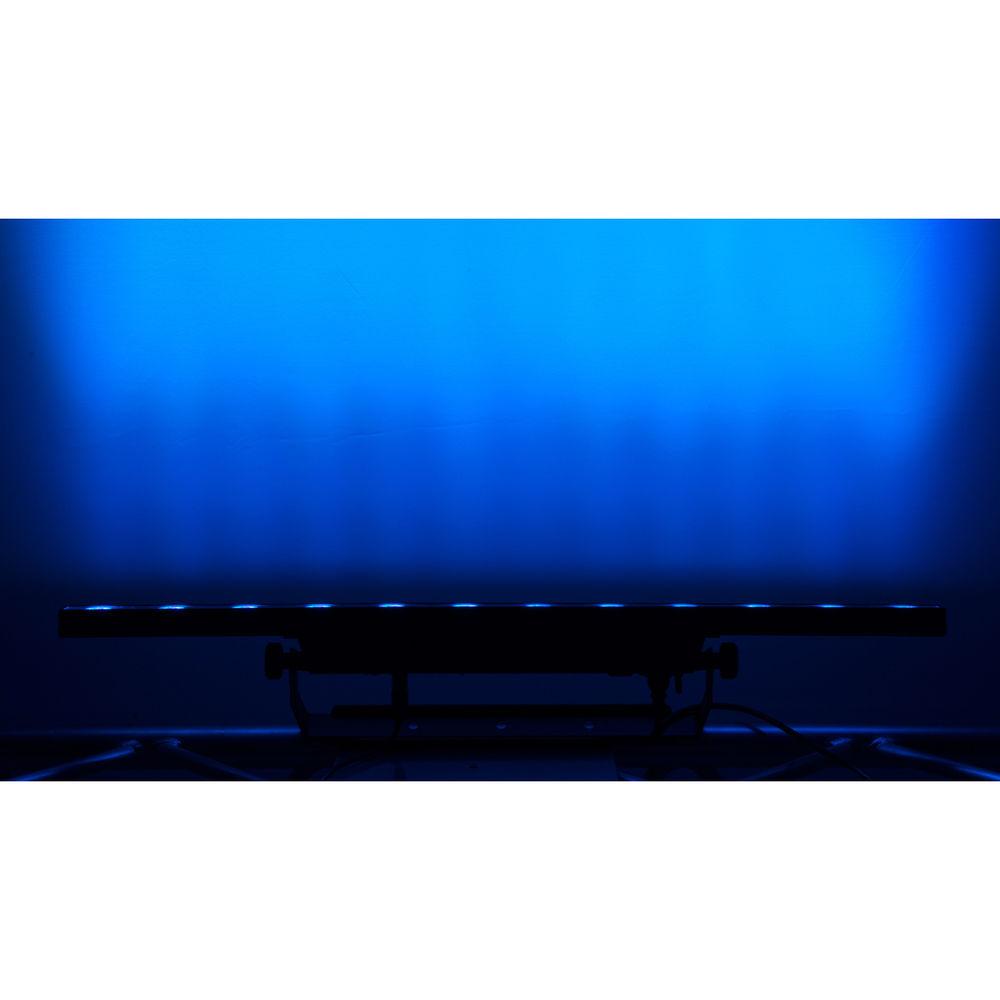

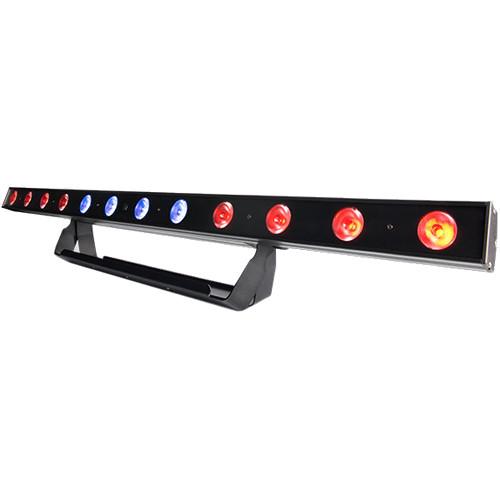

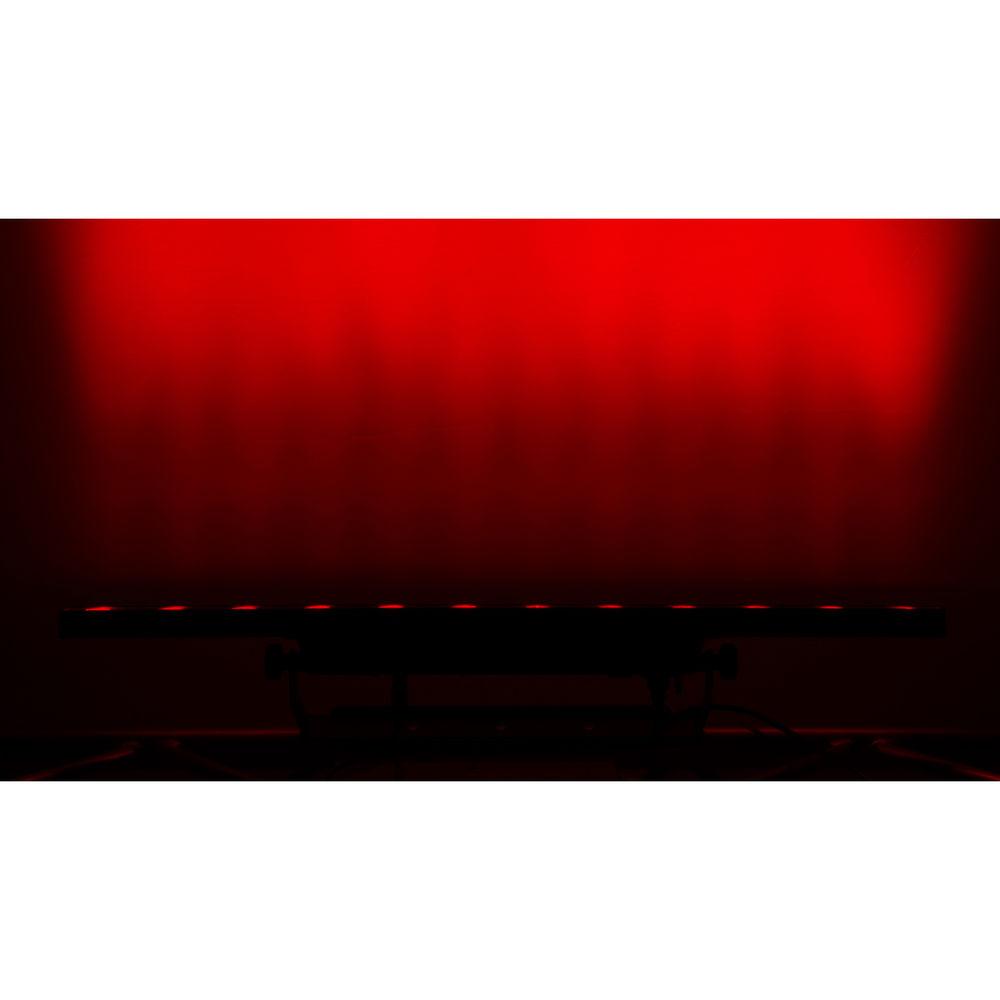

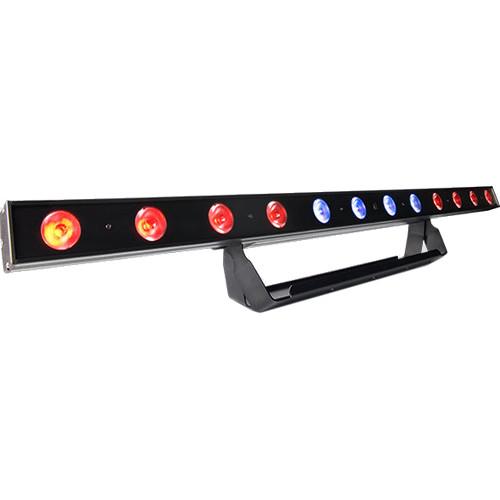

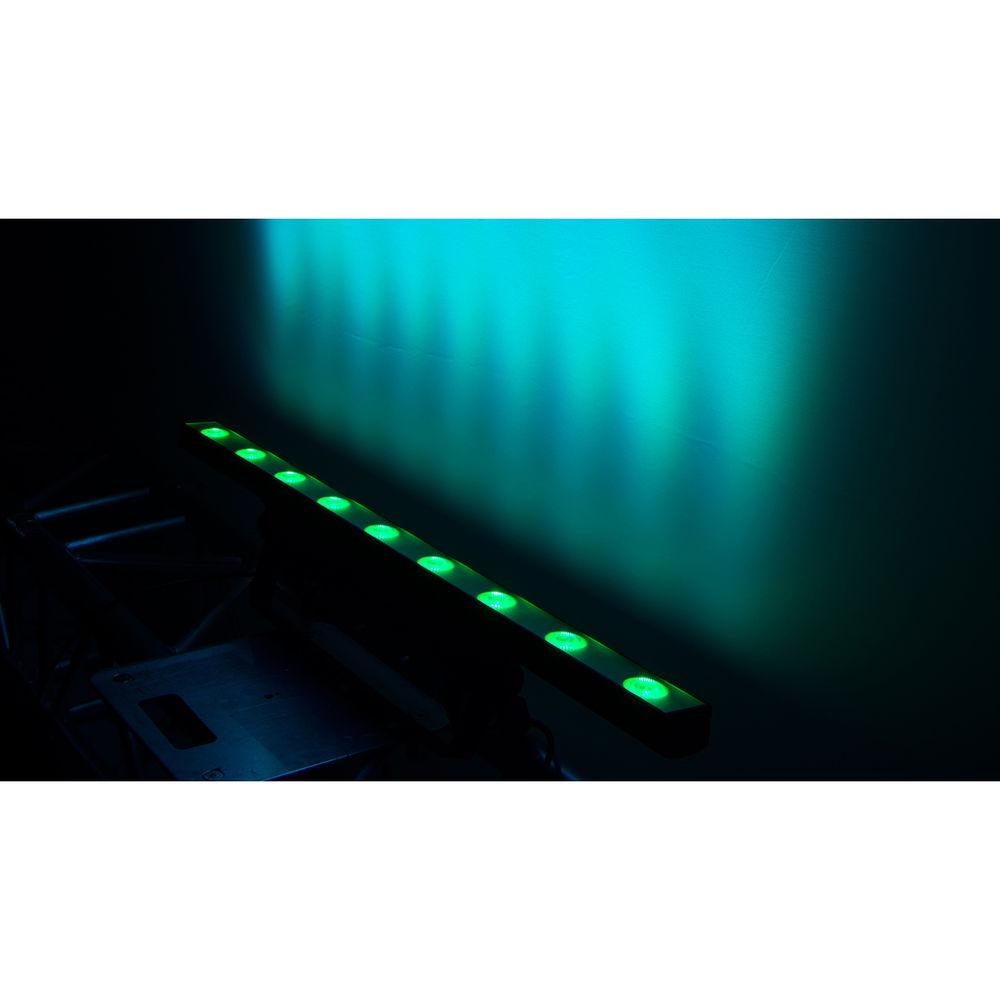

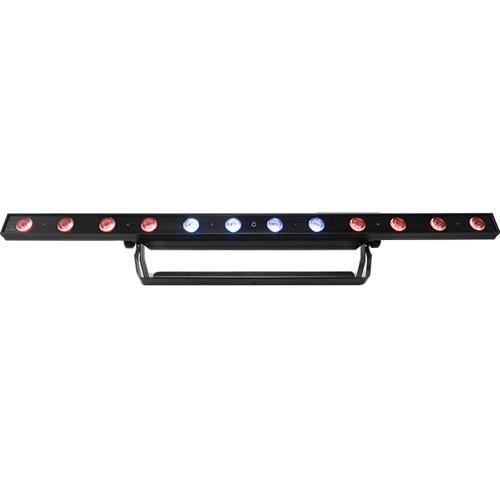

Product description The COLORband Pix USB LED Wash Light from Chauvet is a linear LED wash light that functions as a pixel mapping effect, a blinder, or a wall washer. It features D-Fi USB compatibility for wireless Master/Slave or DMX control and can be used to create amazing animations and video effects for nightclub, live stage, and restaurant applications.The fixture's high-power, tri-color LEDs nearly eliminate multicolor shadows, and its high-frequency LED dimming lets you achieve flicker-free operation, which is suitable for video applications. In addition, save time running cables and power cords by power linking multiple units.Furthermore, the COLORband Pix USB is ideal for quiet applications due to its silent operation and no moving parts. It also includes a power cord and a hanging bracket with mounting hardware. - Full-size LED strip light functions as a pixel mapping effect, blinder, or wall washer
- D-Fi USB compatibility for wireless Master/Slave or DMX control
- Create amazing animations and video effects with individual LED control
- Convenient access to multiple pre-built programs with or without DMX
- Easily generate complex shows with ShowXpress Pixels
- Includes multiple DMX personalities for a wide variety of programming styles
- Nearly eliminate multicolor shadows with high-power, tri-color LEDs
- Achieve flicker-free video operation with high-frequency LED dimming
- Save time running cables and power cords by power linking multiple units
- Ideal for quiet applications due to silent operation and no moving parts
- Point-and-shoot operation of static colors and automated programs with the optional IRC-6 remote
- Easily transports in the optional CHS-60 VIP Gear Bag
UPC: 781462215187 In the Box CHAUVET DJ COLORband Pix USB LED Wash Light Hanging Bracket with Mounting Hardware Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ COLORband Pix USB LED Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

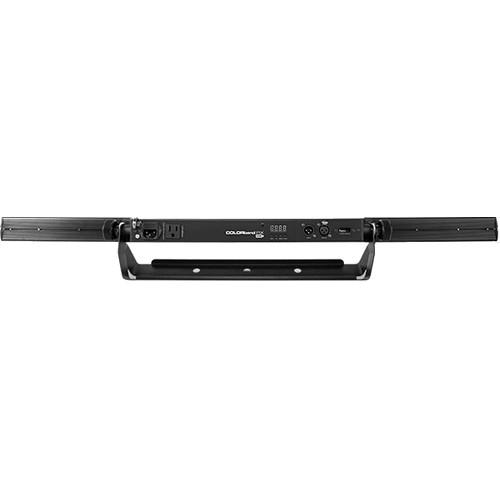

Technical parametersCHAUVET DJ COLORband Pix USB Specs | Light Source | 12 x RGB (tri-color) LEDs; 3 W (1,000 mA) | | Life Expectancy | 50,000 hours | | Illuminance | 2,245 lux @ 6.56' (2 m) | | Beam Angle | 27 ° | | Field Angle | 45° | | Strobe Rate | 0 to 24.5 Hz | | PWM Frequency | 1.22 kHz | | DMX Channel Modes | 10 x Modes: 3, 4, 6, 7, 8, 9, 12, 18, 36 or 41 channels | | DMX Connectors | Input: XLR 3-Pin
Output: XLR 3-Pin | | Wireless Control | D-Fi USB Wireless DMX (available separately)
IRC-6 Remote (available separately) | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | Input: IEC
Output: Edison | | Power Linking | 11 units @ 120 V; 21 units @ 230 V | | Power and Current | 50 W, 0.7 A @ 120 V, 60 Hz
47 W, 0.4 A @ 230 V, 50 Hz | | Approvals | CE, MET | | Dimensions (L x W x H) | 38.9 x 2.0 x 6.2" (987 x 49 x 157 mm) | | Weight | 4 lb (1.8 kg) | | | | Package Weight | 8.5 lb | | Box Dimensions (LxWxH) | 41.5 x 8.0 x 4.0" |
