User Manual for CHAUVET DJ COLORband T3 BT - Compact Linear Wash LED Strip Light with Bluetooth Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ COLORband T3 BT -
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ COLORband T3 BT - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

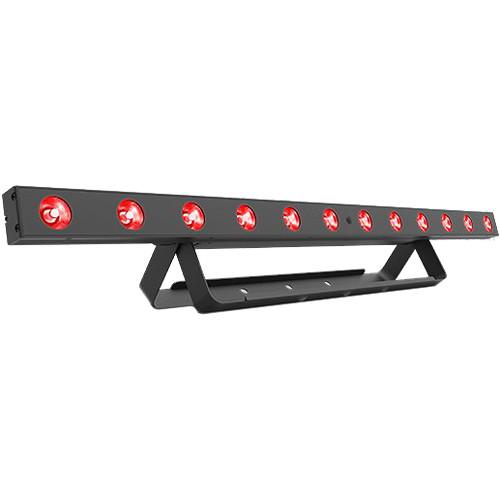

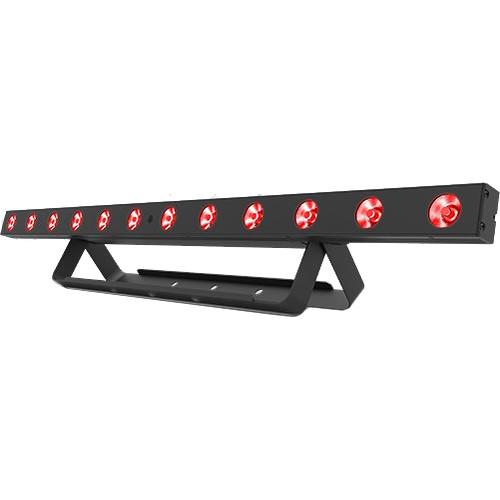

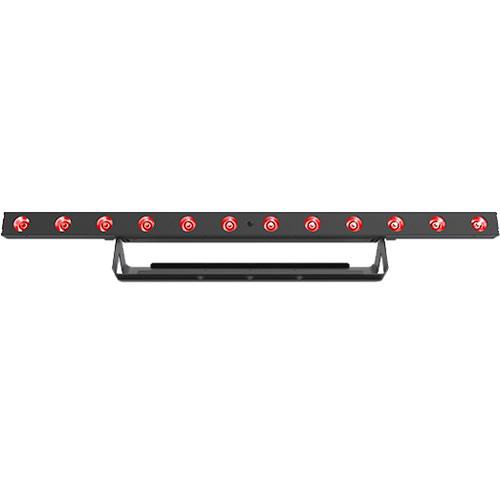

Product description The Chauvet DJ COLORband T3 BT is a compact linear wash LED strip light with built-in Bluetooth wireless technology, allowing you to control the fixture from any smartphone or tablet without any additional hardware. The fixture utilizes twelve tricolor RGB (red, green, blue) 2.5 W LEDs that can be addressed in three zones of four LEDs for creating professional automated effects.
The COLORband T3 can set static colors or automated programs by utilizing the free BTAir control app, via DMX, or via the optional IRC-6 remote. DMX channel modes include 3, 5, or 13 for simple to advanced controls. Additionally, up to 15 units (@120 V) can be power-linked, which helps simplify setup and cabling. The Chauvet DJ COLORband T3 BT ships with a standard IEC power cord, hanging bracket, and mounting hardware. -
- Compact linear wash LED strip light with built-in Bluetooth wireless technology
- Control directly from a smart phone or tablet without any additional hardware
- Three zones of control create professional automated effects
- Easily set static colors or automated programs with the optional IRC-6 remote
- Save time running cables and extension cords by power linking multiple units
- Access built-in automated programs via optional IRC-6 remote, master/slave, or DMX
- Compatible with the CHS-60 VIP gear bag
UPC: 781462211776 In the Box CHAUVET DJ COLORband T3 BT - Compact Linear Wash LED Strip Light with Bluetooth Power Cord Hanging Bracket Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ COLORband T3 BT - Compact Linear Wash LED Strip Light with Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ COLORband T3 BT Specs | DMX Channels | Modes: 3, 5, or 13 | | DMX Connectors | 3-pin XLR | | Maximum Unobstructed Distance | 150.0' / 45.7 m | | Light Source | 12 x LEDs (tricolor RGB), 2.5 W (1 A) | | Strobe Rate | 0 to 25 Hz | | PWM Frequency | 7.8 kHz | | Beam Angle | 42° | | Operating Frequency | 2.4 GHz | | Coverage Angle | 70° | | Illuminance | 548 lux at 6.6' / 2.0 m | | Power Linking | 15 units @ 120 V
28 units @ 230 V | | Power | Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current:
37 W, 0.5 A @ 120 V, 60 Hz
36 W, 0.2 A @ 230 V, 50 Hz | | Bluetooth Version | 4.2 | | Approvals | CE, FCC | | Dimensions (W × H × D) | 39.3 x 6.2 x 2.0" / 998.2 x 157.5 x 50.8 mm | | Weight | 6.6 lb / 3.0 kg | | | | Package Weight | 8.2 lb | | Box Dimensions (LxWxH) | 41.4 x 8.8 x 3.5" |
