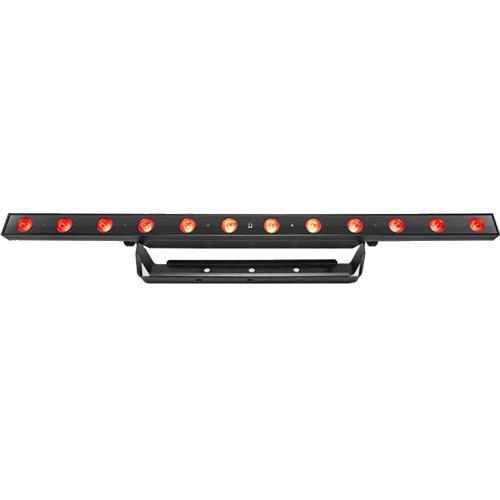

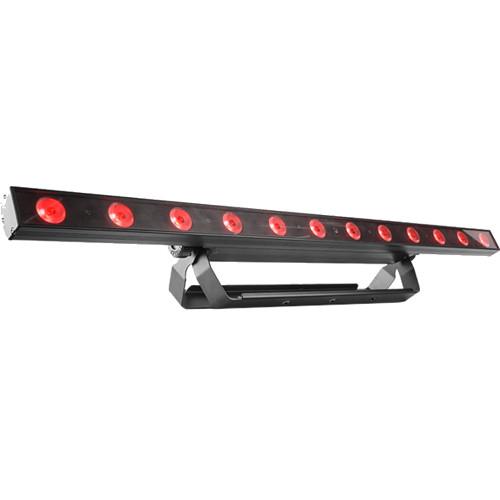

Product description Create exciting multicolor looks, chase effects, and wall washes with the CHAUVET COLORband T3 USB. Featuring twelve, high-powered, tricolor RGB (red, green, blue) LEDs, and a wide field angle of 45°, this 38.9" linear fixture is well suited for venue uplighting, dance floor color washing, or providing illumination of stage performers, without distracting multicolor shadows.The COLORband T3 USB allows for both standalone and wired/wireless DMX operation. It offers automated programs such as Sound-Active, Auto Programs, Strobe, RGB Dimming, and Static Color for fast setup in standalone mode. Use the master/slave configuration to create coordinated lights shows without any DMX programming. Five DMX channel modes (3, 6, 8, 9, or 14 channels) enable various levels of control. Plug a D-Fi USB transceiver (available separately) into the unit's USB port and pair with a D-Fi-enabled controller for instant, wireless DMX communication. Alternatively, you can use a standard 3-pin DMX cable for wired connection. The fixture is compatible with the IRC-6 wireless remote (available separately).The COLORband T3 USB supports power-linking via its pass-through IEC input and Edison output. Connect a single IEC power cable to the wall and daisy-chain up to 21 units at 120V, or up to 38 units at 230V. The universal, auto-ranging power supply ensures functionality from 100 to 240 VAC. A hanging bracket allows for flexible positioning and a safety-cable loop provides additional safety when truss-mounted. - Lighting
-
- 12 tricolor RGB LEDs
- High-powered LEDs nearly eliminate multicolored shadows
- Silent operation – no moving parts
- Create chase effects, wash walls, or use as a blinder
- Control
-
- Use one of five DMX channel modes: 3, 6, 8, 9, or 14
- Connect to the fixture with DMX cables, or wirelessly with the D-Fi USB transceiver (available separately)
- Let the environment control the COLORband T3 USB in Sound-Active mode
- Use master/slave configuration with other COLORband T3 USB fixtures for a coordinated show
- One of the pre-programmed shows can automatically control the unit
- The IRC-6 wireless remote control (available separately) can be used in place of a DMX console to control the fixture
- Linking
-
- Data-link the COLORband T3 USB to other fixtures via the 3-pin DMX output
- Power-link up to 21 fixtures at 120V, or up to 38 fixtures at 230V
UPC: 781462215170 In the Box CHAUVET DJ COLORband T3 USB RGB LED Linear Fixture Power Cord Hanging Bracket with Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ COLORband T3 USB RGB LED Linear Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ COLORband T3 USB Specs | LED Source | 12 x 3 W tricolor RGB (red, green, blue) LEDs
Current: 700 mA
Life Expectancy: 50,000 hours | | Illuminance | 1760 lux at 6.6' / 2 m | | Beam Angle | 27° | | Field Angle | 45° | | Dimming | 0-100%, electronic | | Operational Modes | Strobe (variable)
Static Color with color macros
Sound-Active
Auto Programs
Standalone
Master/Slave
DMX | | Strobe Rate | 0-26 Hz | | Wireless Control | D-Fi USB wireless DMX (D-Fi USB transceiver available separately)
IRC-6 remote (available separately) | | DMX Connectors | Input: 1 x 3-pin XLR

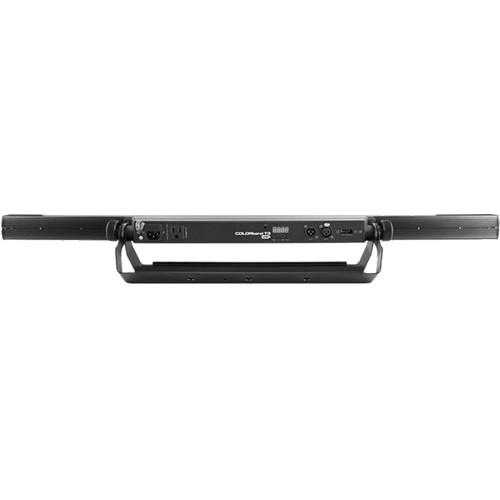

Output: 1 x 3-pin XLR | | DMX Channel Modes | 5 x Modes: 3, 6, 8, 9, or 14 channels | | Input Voltage | 100-240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | Input: 1 x IEC
Output: 1 x Edison | | Power Linking | 21 units at 120 VAC, 8 A
38 units at 230 VAC, 8 A | | Power and Current | 27 W, 0.4 A at 120 VAC, 60 Hz
26 W, 0.2 A at 230 VAC, 50 Hz | | Fuse | T 1 A, 250 V | | Maximum Temperature | External: 104°F / 40°C | | Cooling System | Convection | | Approvals | CE, MET, RoHS | | Dimensions (L x W x H) | 38.9 x 2 x 6.2" / 98.7 x 4.9 x 15.7 cm | | Weight | 5.8 lb / 2.7 kg | | | | Package Weight | 8.0 lb | | Box Dimensions (LxWxH) | 41.5 x 8.0 x 3.5" |
