User Manual for CHAUVET DJ COLORpalette LED Light Bank System Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ COLORpalette LED Light Bank
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ COLORpalette LED Light Bank contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

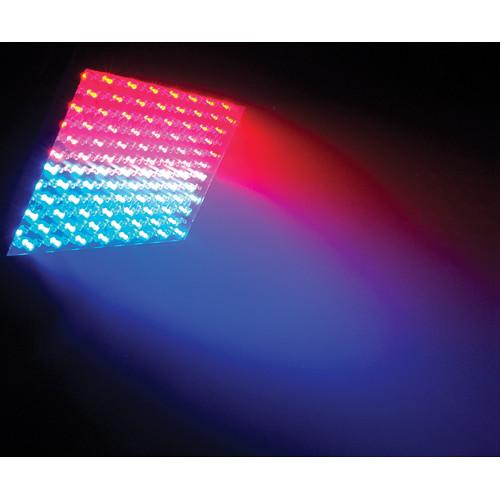

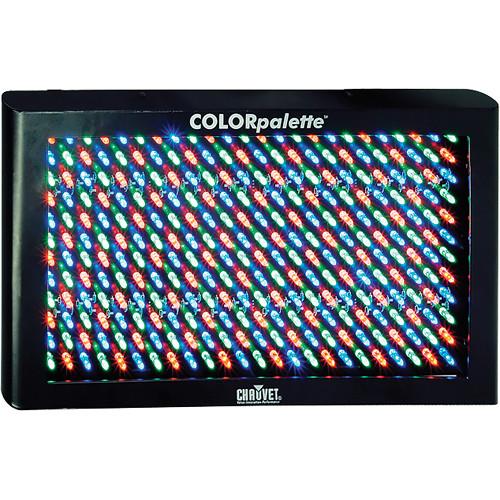

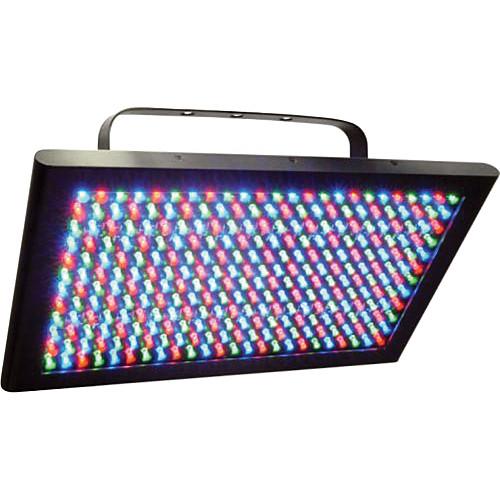

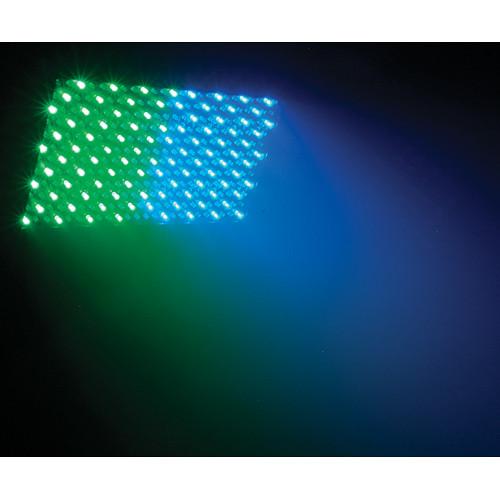

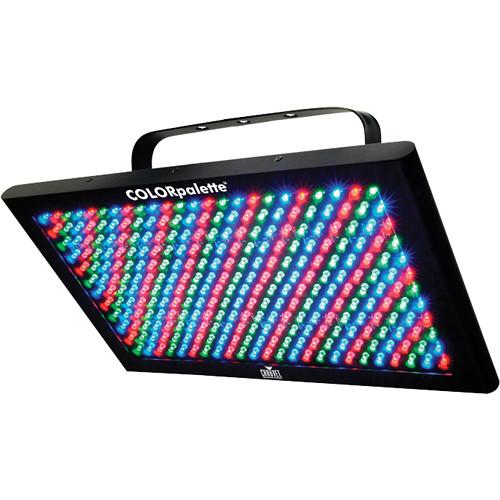

Product description The Chauvet COLORpalette LED Light Bank System is a 16.75 x 9.75" RGB panel offering 6,9,15 or 27-channel of DMX-512 control. The greater the number of channels chosen by the user the more refined and precise the control of the spectrum of light.Ideal for DJ's or others in the performance field, uses include clubs, concerts and special events. The panel may be hung from its yoke using optional O or C clamps or mounted to a truss or wall with the included brackets.The COLORpalette is cable of serial connection to up to 32 fixtures with a maximum recommended data link distance of 500 meters (1640 feet). The auto-switching internal power supply is rated at 100-240VAC. Features include blackout, color fading, strobe, static color and RGB color mixing as well as sound activation. Note: DMX controller not included. - Multi-Channel DMX
- 6, 9, 15 to 27-channel DMX-512 LED panel offer increasing precision and degree of control over the spectrum.
- Operating Modes
- 6-channel: RGB control
9-channel: 2 sections of RGB control
15-channel: 4 sections of RGB control
27-channel: 8 sections of RGB control - Automation
- Built-in automated programs via master/slave or DMX.
- Audio
- Built-in sound activated programs via master/slave or DMX.
- Hanging, Truss or Wall Mount
- Hang fixture via optional C or O clamp. Truss or wall mount using included brackets.
- Multi-Voltage
- The COLORpalette is autoswitching 100V - 240V 50/60Hz for use worldwide.
- Low-profile
- Panel is only 7" (18 cm) deep.
UPC: 781462202330 In the Box CHAUVET DJ COLORpalette LED Light Bank System COLORpalette Fixture Power Cord User Manual 2 Year Manufacturer's Warranty User Manual PDF 717.8kbyaqadczvuytvt Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ COLORpalette LED Light Bank System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ COLORpalette Specs | Light Source | 288 LEDs | | Rating | 1334 lux @ 1 m | | Beam Angle | 31 x 29° (Field Angle: 56 x 54°) | | Operating Voltage | 100-240VAC, 50-60Hz, auto-switching | | Dimming | Via optional DMX Controller | | Mount | Optional "C" or "O" clamp | | Dimensions | 16.8 x 9.8 x 7" (43 x 25 x 18 cm) | | Weight | 6.2 lbs (2.8 kg) | | | | Package Weight | 7.2 lb | | Box Dimensions (LxWxH) | 18.8 x 11.5 x 4.7" |
