User Manual for CHAUVET DJ COLORstrip DMX LED Linear Wash Light Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ COLORstrip DMX LED Linear
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ COLORstrip DMX LED Linear contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|
Product description - CHAUVET COLORstrip
- COLORstrip at the DJ Tour

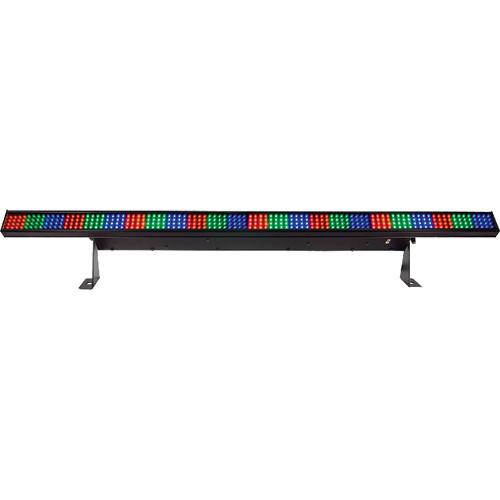

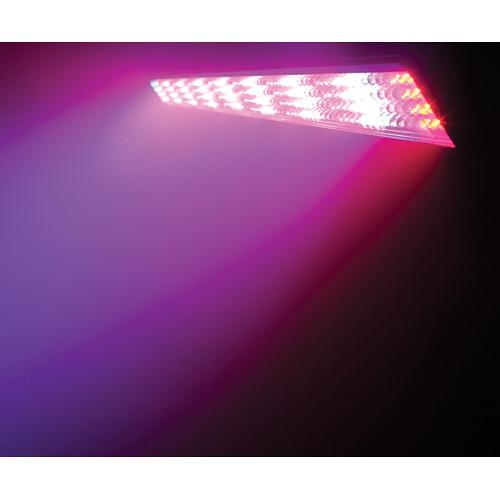

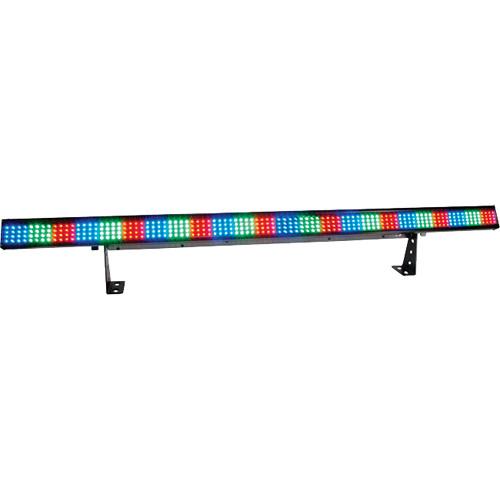

The Chauvet COLORstrip DMX LED Linear Wash Light is a long, narrow source ideal suited to lighting walls, backgrounds, cycloramas or other near-flat surfaces.The autoswitching (100-240VAC), 384 LED source is controllable via an optional DMX controller or optional LED-FS1 Footswitch. The COLORstrip may be operated individually or daisy-chained up to 32 fixtures via its additional power outputs. Operating modes include, blackout, dimmer, flash and static. It is linkable with Chauvet COLORbank LED, COLORbank LED 2, COLORstrip Mini, DIAMONDstrip and DIAMONDstrip Mini fixtures. - Broad Source
- 4-channel DMX-512 LED linear wash light, ideal for cyclorama lighting.
- Operating Modes
- Blackout, static or constant on, dimmer and strobe for special effects.
- Flexibility
- Static colors and RGB color mixing with or without DMX controller.
- Master/Slave or DMX Control of Light and Audio
- Built-in automated programs via master/slave or DMX. Built-in sound active programs via master/slave or DMX.
- Other Compatible Chauvet Fixtures
- Linkable with COLORbank LED, COLORbank LED 2, COLORstrip Mini, DIAMONDstrip and DIAMONDstrip Mini.
- Additional Power and Slave Outputs
- Additional power output enables daisy-chaining a maximum of 32 units while slave output allows color-changing runway effect with a maximum of 31 units.
- Optional Foot Controller
- The Optional COLORstrip Foot Controller (LED-FS1), connects to the COLORstrip with the included 21'(6.4 m) 6-pin cable. The 4-pedal unit controls strobe effects, blackout, static colors and chase (light sequence).
UPC: 781462000431 In the Box CHAUVET DJ COLORstrip DMX LED Linear Wash Light COLORstrip LED Light 2 x Tall Mounting Brackets 2 x Short Mounting Brackets Power Cord User Manual 2 Year Manufacturer's Warranty User Manual PDF 956kbcseutvzbudbzbsawubrswszr Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ COLORstrip DMX LED Linear Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ COLORstrip Specs | Light Source | 384 LEDs | | Beam Angle | Per light: 63 x 29° (Field Angle: 82 x 52°) | | Operating Voltage | 100-240VAC, 50-60Hz, auto-switching | | Dimming | Via optional DMX Controller | | Mount | 2 Each: Tall Mounting Brackets, Short Mounting Brackets | | Dimensions | 38 x 2.5 x 6" (96.5 x 6.4 x 15.2 cm) | | Weight | 4.4 lbs (2 kg) | | | | Package Weight | 6.5 lb | | Box Dimensions (LxWxH) | 39.5 x 5.0 x 4.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 43 owners. Add your rating and experience with the product.
