Product description - COLORstrip Mini FX by CHAUVET DJ

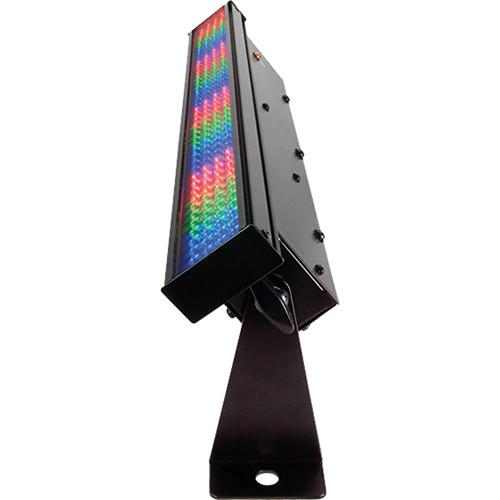

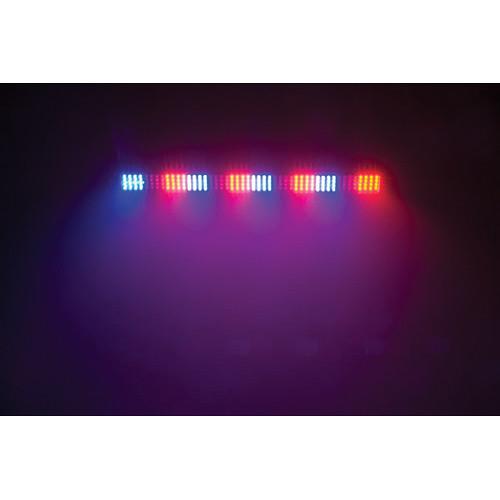

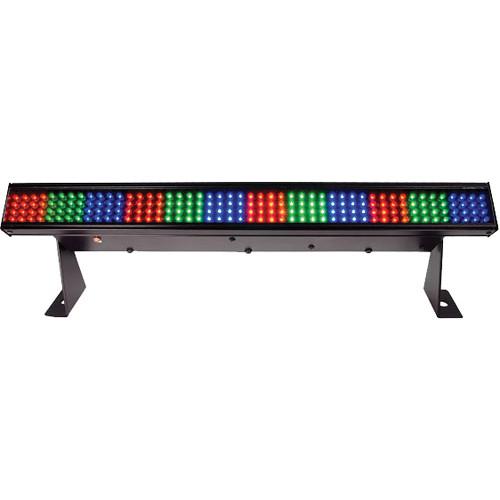

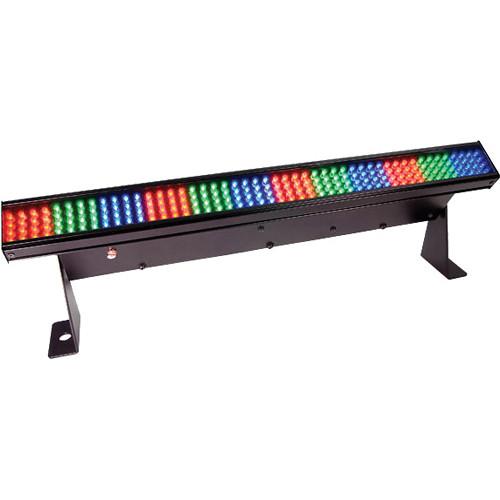

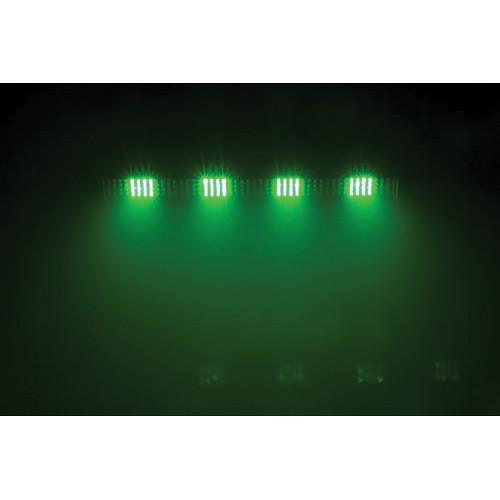

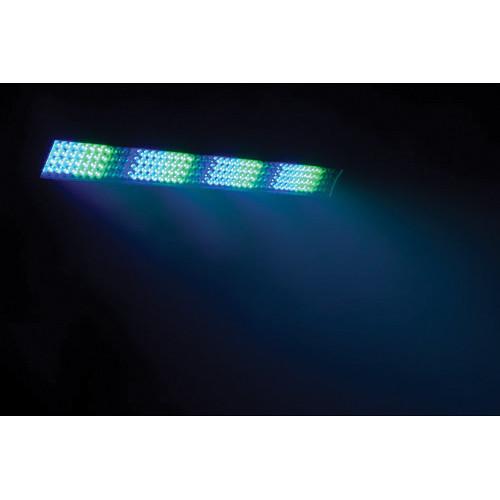

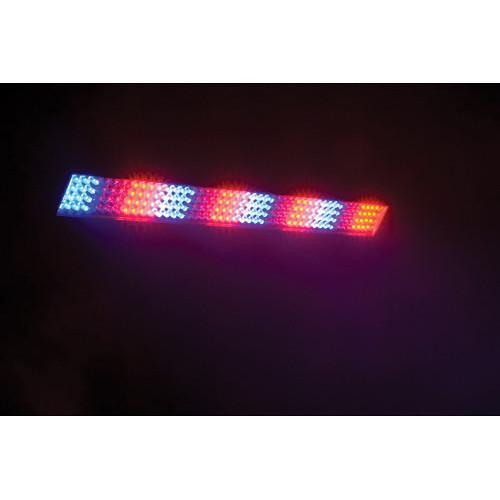

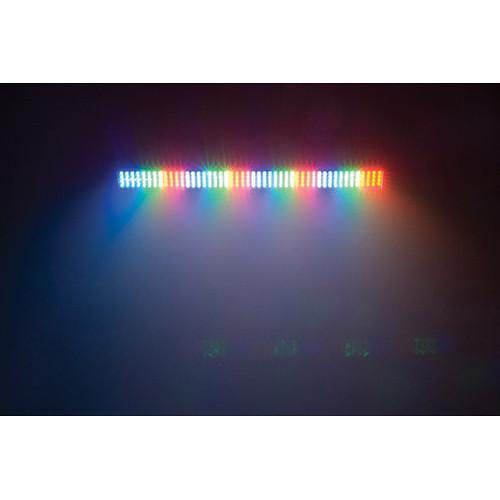

The Chauvet COLORstrip Mini LED Linear Wash Light is a 19” 4-channel DMX -512 controlled light bar powered by 192 red, green and blue LEDs. The lightweight (3.3 lb) COLORstrip can easily be truss or ceiling mounted and at only 3.8” in depth, it will squeeze into spaces that a bigger light just can't. With a field angle of 68° x 51° the COLORstrip is most often used as a wall washer or up-light from floor level. Up to 32 units can be controlled by DMX or up to 31 units can be linked via Master / Slave mode for a multi-colored runway effect. You can also power link up to 20 units to cut down on extension cable tangle. The COLORstrip is multi-voltage, so you can use it anywhere there's electricity. It's also compatible with Chauvet's Satellite System so you can go cordless with a Satellite battery. -
- 4-channel DMX-512 LED linear wash light
- Blackout/static/dimmer/strobe
- Static colors and RGB color mixing with or without DMX controller
- Built-in automated programs via master/slave or DMX
- Built-in sound activated programs via Master / Slave or DMX
- Compatible with CHAUVET Satellite system
- Additional power output: max 20 units @ 120V
- Additional slave output allows for color-changing runway effect (up to 31 units)
UPC: 781462203726 In the Box CHAUVET DJ COLORstrip Mini LED Linear Wash Light 2 x Tall Mounting Brackets 2 x Short Mounting Brackets Power Cord Warranty Card User Manual 2 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ COLORstrip Mini LED Linear Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ COLORstrip Mini Specs | Light Source | 192 (64 red, 64 green, 64 blue) LEDs
Lamp life: 50,000 hours | | DMX Interface | 4 channels | | Photometrics | Lux: 820 @ 1m | | Field Angle | 68 x 51° (Beam angle: 37 x 33°) | | Power Consumption | 120V, 60Hz: 21W, 0.3A max., 0.2A inrush
230V, 50Hz: 23W, 0.2A max., 0.3A inrush | | Power Requirements | Auto-switching: 100 - 240V AC 50 / 60Hz | | Dimensions | 19 x 3.8 x 5.1" (482 x 97 x 130 mm) | | Weight | 3.3 lb (1.5 kg) | | | | Package Weight | 4.2 lb | | Box Dimensions (LxWxH) | 20.9 x 5.1 x 4.0" |
