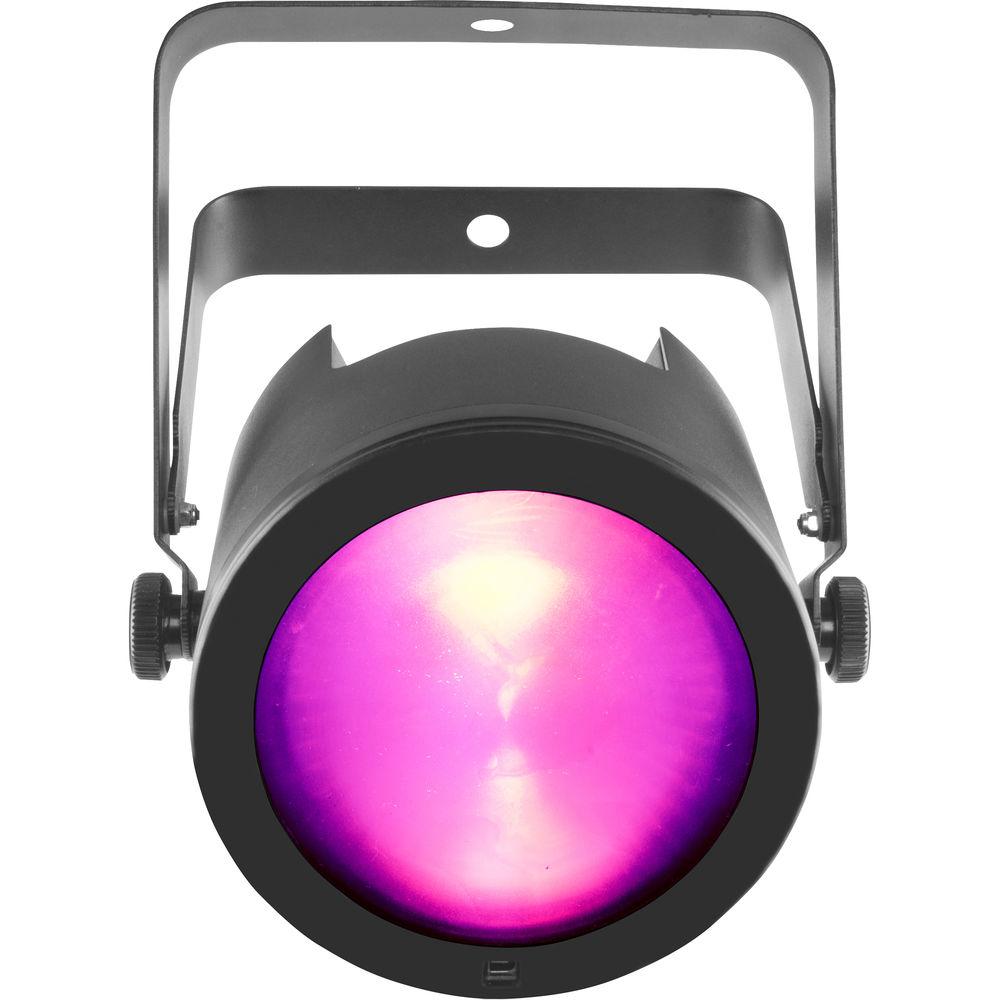

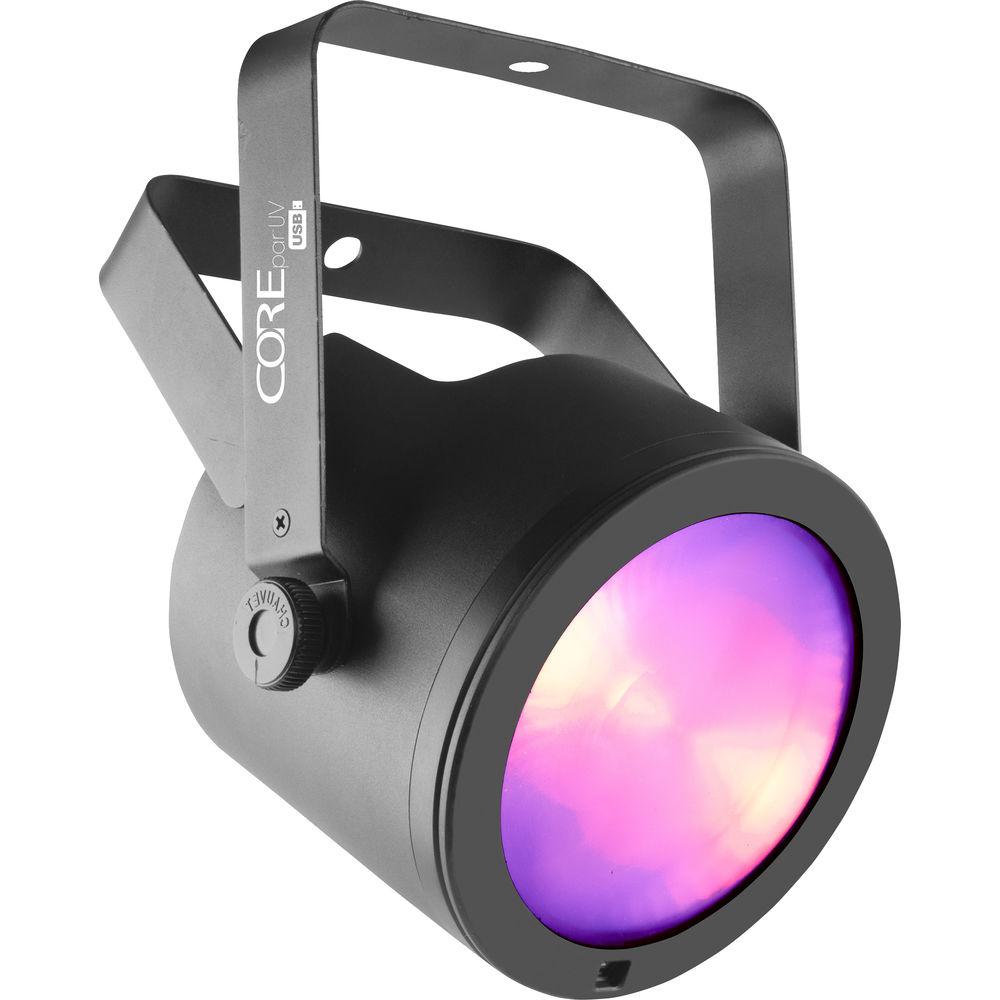

Product description The COREpar UV USB Light from Chauvet DJ produces a full spectrum of light with Chip-on-Board color mixing technology and includes a separate magnetic lens, allowing you to easily switch from an ultra-wide wash to a narrow beam in seconds. High-frequency LED dimming achieves smooth LED fades and offers a flicker-free performance when used in video applications. Multiple control options include DMX, master/slave, and sound activation modes as well as wireless control via D-Fi USB compatibility. A separately sold IRC-6 remote control provides point-and-shoot operation of static colors and automated programs. The unit's durable sit-flat housing features power and DMX outlets on the side. - Compact, ultra-wide UV wash with Chip-on-Board technology

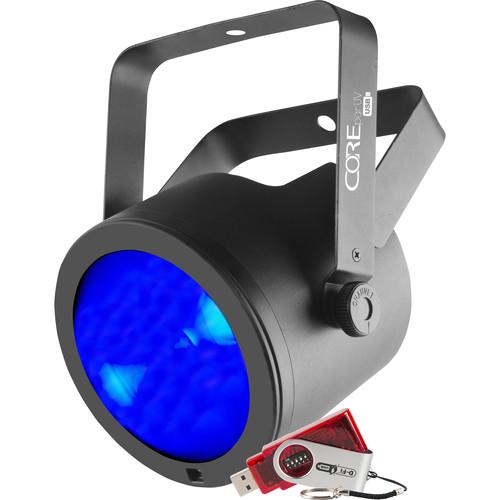

- D-Fi USB compatibility for wireless master/slave or DMX control
- Included magnetic Fresnel lens provides the flexibility to switch from ultra-wide to narrow beam in seconds
- Robust housing for durability during travel
- Sit-flat housing hugs the floor and features power and DMX outlets on the side of the unit
- Achieve flicker-free video operation with high-frequency LED dimming
- Power link multiple units for a minimum of power cables and extension cords
- A separately sold remote control provides point-and-shoot operation of static colors and automated programs
- Multiple control options include DMX, master/slave, and sound-active modes
- Create customized colors using the built-in LED display
- Built-in dimming curves for smooth LED fading
UPC: 781462214265 In the Box CHAUVET DJ COREpar UV USB Light Magnetic Fresnel Lens Dual-Bracket Mounting Yoke Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ COREpar UV USB Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ COREpar UV USB Specs | DMX Channels | 1, 5 | | DMX Connectors | 3-pin XLR input and output | | Light Source | 1 x COB LED (UV)
70 W, 1.5 A
Life expectancy: 50,000 hr | | Wavelength | 390 to 400 nm | | Strobe Rate | 0 to 33 Hz | | PWM Frequency | 2,000 Hz | | Angle | Coverage Angle:
Without Fresnel Lens: 100°
With Fresnel Lens: 50° | | Illuminance | Not specified by manufacturer | | Input Voltage | 100 to 240 VAC, 50/60 Hz | | Power and Current | 67 W, 0.975 A @ 120 V, 60 Hz
65 W, 0.517 A @ 230 V, 50 Hz | | Power Connections | IEC input and output | | Power Linking | 8 units @ 120 V
15 units @ 230 V | | Approvals | CE | | Wireless Control | IRC-6 remote (sold separately)
D-Fi USB (requires D-Fi USB dongles, sold separately) | | Display | Four-button LCD for menu | | Dimensions | 5.5 x 7.9 x 10.0" / 13.9 x 20.0 x 25.3 cm | | Weight | 4.6 lb / 2.1 kg |
