User Manual for CHAUVET DJ D-Fi Hub Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ D-Fi Hub
- Product category: DMX Devices CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DMX Devices
 |
User manual for the CHAUVET DJ D-Fi Hub contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|
Product description - The CHAUVET DJ D-Fi USB - Here's How it Works

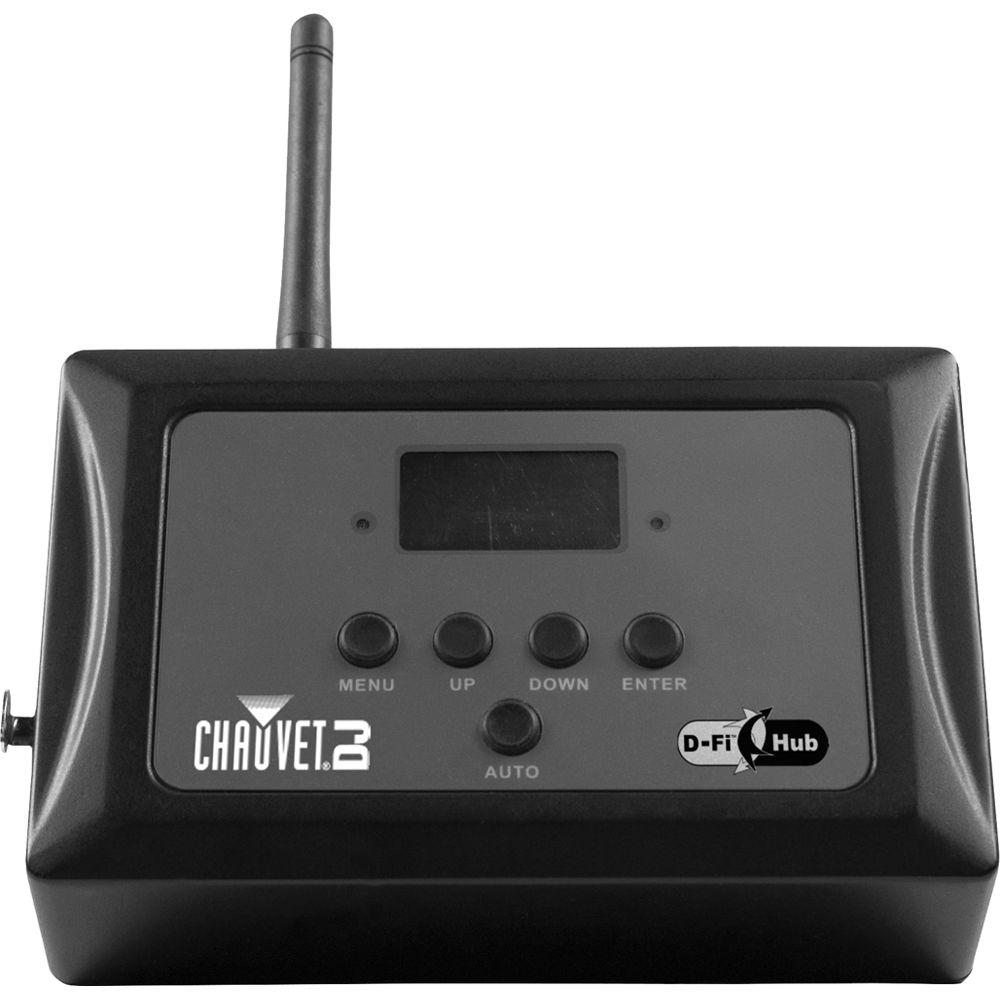

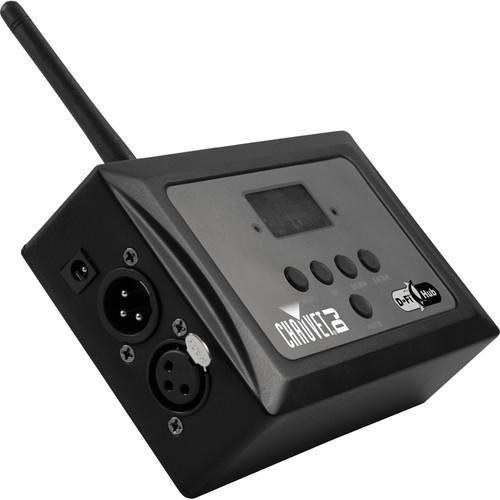

The D-Fi Hub from Chauvet is a compact, easy-to-use DMX unit that functions as either a transmitter or receiver. For more stable communication between units, it operates on a 2.4 GHz frequency range and includes an auto function which finds the best frequency and syncs the units effortlessly. You can wirelessly synchronize an unlimited number of D-Fi-ready fixtures simultaneously and operate them using the simple navigation on the OLED digital display. - Attributes
-
- Compact, easy-to-use wireless D-Fi transmitter and receiver in a single unit
- Wirelessly synchronize an unlimited number of D-Fi-ready fixtures and receivers simultaneously
- Built-in options include manual or automatic channel selection
- Simple navigation and text readout using the OLED digital display

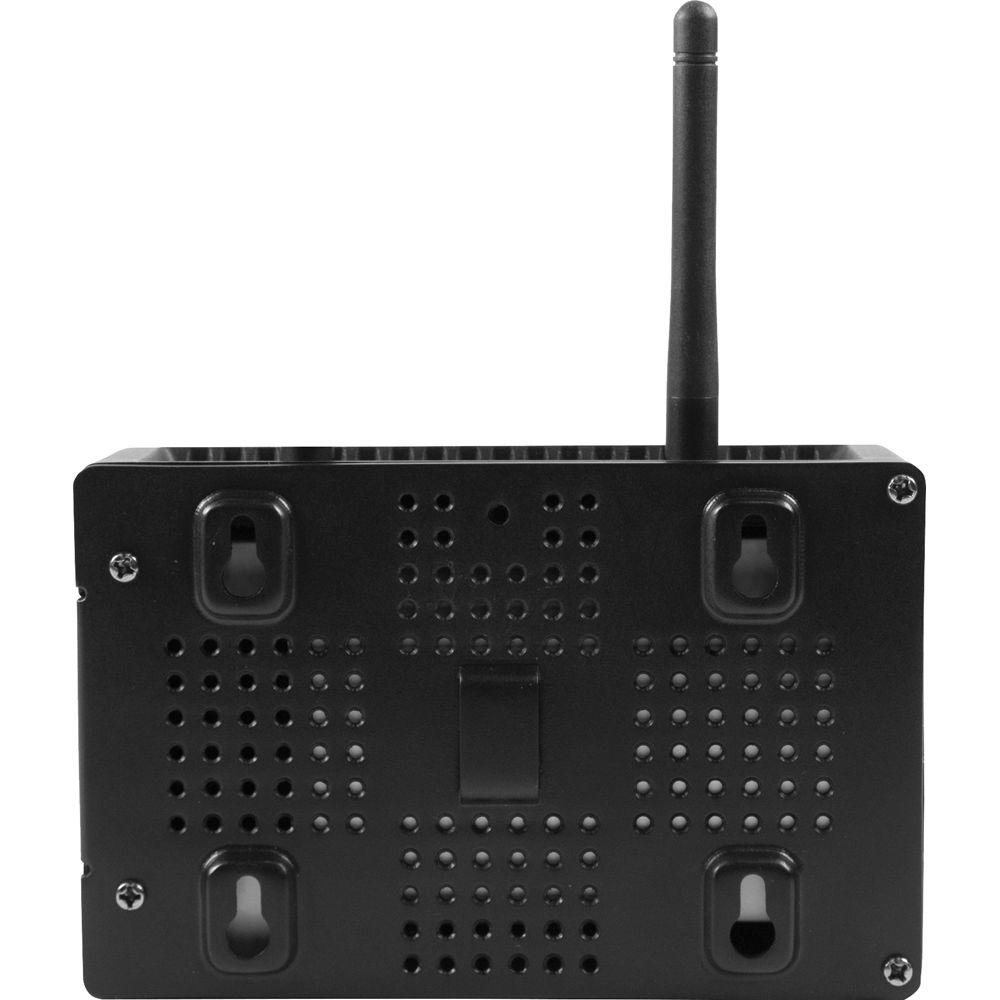

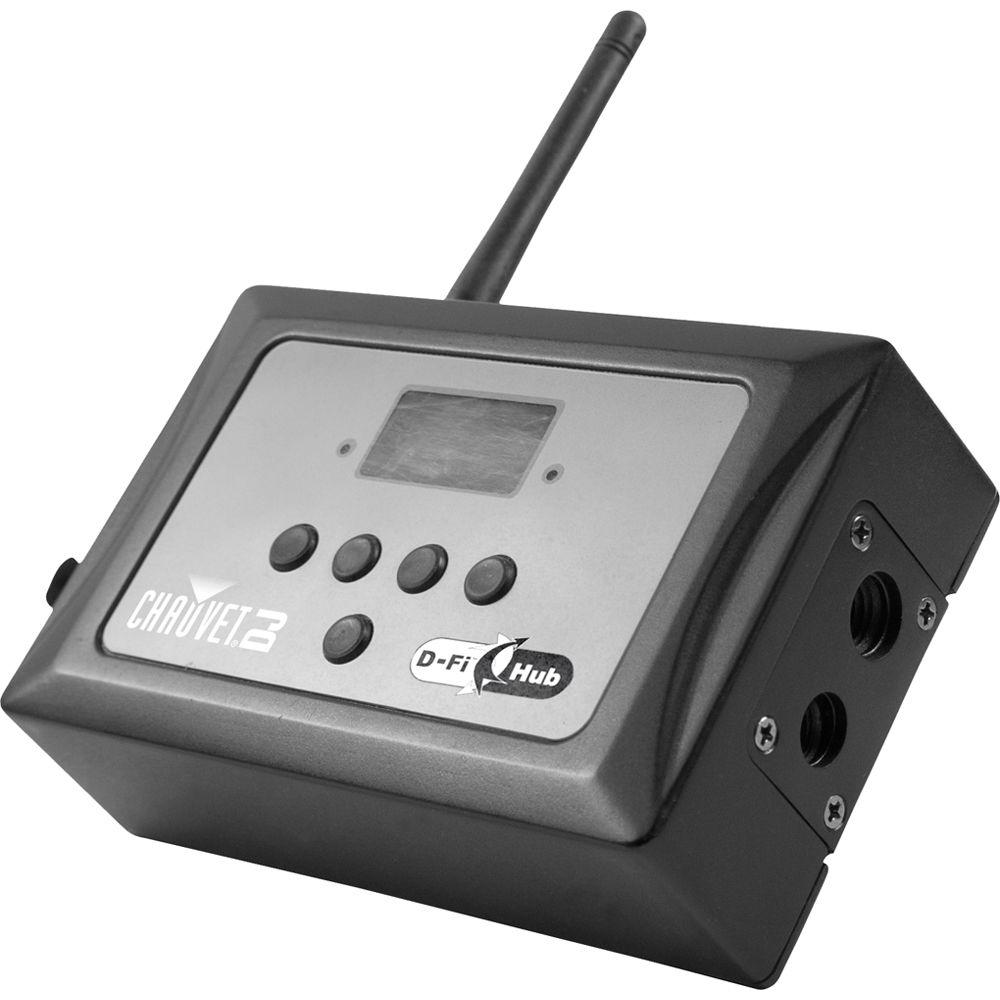

- Mounting options include built-in hook and loop fastener strap, keyhole mounting holes, M10 and M12 threaded holes for direct mounting to truss
- Fully FCC, RTTE, CE compliant
UPC: 781462211646 In the Box CHAUVET DJ D-Fi Hub Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ D-Fi Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ DFIHUB Specs | DMX Connectors | DMX connectors: 3-pin XLR | | Operating Frequency | 2.412 to 2.484 GHz | | Antenna Connector | RP-SMA | | Maximum Unobstructed Distance | 656' (200 m) | | Input Voltage | 9 VDC, 500 mA
External power supply: 100 - 240 VAC, 50/60 Hz | | Power Consumption | At 120 VAC, 60 Hz: 4.0 W, 0.1 A
At 230 VAC, 50 Hz: 4.0 W, 0.1 A | | Approvals | CE, FCC, RTTE | | Mounting Options | Built-in hook and loop fastener strap
Keyhole mounting holes
M10 and M12 threaded holes for direct mounting to truss | | Dimensions | 4.0 x 3.2 x 1.6" (102 x 82 x 41 mm) | | Weight | 1.2 lb (0.6 kg) | | | | Package Weight | 1.205 lb | | Box Dimensions (LxWxH) | 9.7 x 5.1 x 3.45" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 08 owners. Add your rating and experience with the product.
