CHAUVET DJ Derby X DMX Effects

Search your instruction manual in PDF to download

User Manual for CHAUVET DJ Derby X DMX Effects Light

Click to enlarge the picture
CHAUVET DJ Derby X DMX Effects Light Contents of the user manual for the CHAUVET DJ Derby X DMX Effects
  • Product category: DJ & Effect Lights CHAUVET DJ
  • Brand: CHAUVET DJ
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for CHAUVET DJ DJ & Effect Lights

User manual for the CHAUVET DJ Derby X DMX Effects contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any CHAUVET DJ product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!



Product description

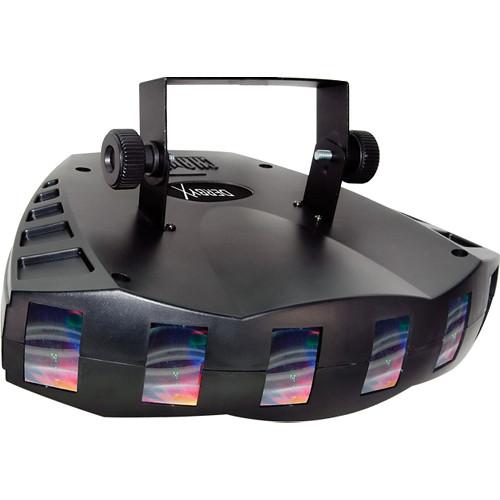

The Chauvet Derby X DMX Effects Light is a 6-cluster hanging LED fixture that has become increasingly popular for concert, entertainment, DJ and dance club venues. The fixture projects a barrage of multi-colored light rays or beams distributed vertically and horizontally in a 90 degree pattern. For more intensity and greater coverage up to 4 units may be stacked together. Operating modes include Stand Alone Mode which allows a single unit to respond to the beat of the music via an internal microphone. The sound sensitivity can be adjusted by turning a knob on the rear of the light. In Master/Slave Mode the user can link up to 32 units together via DMX cables without a controller. All units mimic the settings entered on the first or "Master" unit. In DMX Mode, individual or ganged units are controlled remotely by any universal DMX controller (available separately). The Derby X can operate on voltages from 100-240VAC.
    Derby DMX
  • 8-channel DMX-512 controlled LED derby effect displays a barrage of light beams.
    Effects
  • Blackout for quick-dark scene switches, Static for constant beam of light and Strobe for eye-popping action effects.
    RGB Control
  • Individual control of red, green and blue LEDs within each cluster (6 total).
    Program Remote Control Via DMX
  • Built-in automated programs via DMX.
    Sound Activation
  • Built-in sound activated programs via master/slave or DMX.
    Multi- Unit Capability
  • Mount multiple units together with adjustable, optional bracket (XBRACKET).
    Power Output for Additional Lights
  • Additional power output: max 27 units @ 120V (see manual for details).
UPC: 781462202910 In the Box CHAUVET DJ Derby X DMX Effects Light
  • Derby X Effects Light
  • Power Cord
  • User Manual
  • 2 Year Manufacturer's Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the CHAUVET DJ Derby X DMX Effects Light in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    CHAUVET DJ Derby X Specs

    Light Source 6 LED clusters, 90 LEDs total
    Rating Not Available from Manufacturer
    Beam Angle 96°
    Operating Voltage 100-240VAC, 50-60Hz, auto-switching
    Dimming Via optional DMX Controller
    Mount Optional bracket, O or C clamp
    Dimensions 11.9 x 15 x 7.4" (30 x 38 x 19 cm)
    Weight 4 lbs (1.8 kg)
    Package Weight 6.65 lb
    Box Dimensions (LxWxH) 16.1 x 14.0 x 6.9"

    Rating

    80% users recommend this product to others. And what about you?
    Rating: 4.0 of 5

    This product has already been rated by 44 owners. Add your rating and experience with the product.
