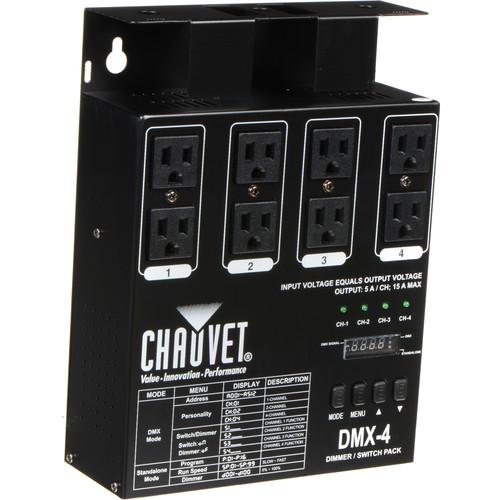

User Manual for CHAUVET DJ DMX-4LED 4-Channel Dimmer Pack Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ DMX-4LED 4-Channel Dimmer Pack
- Product category: Dimmers CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ Dimmers
 |
User manual for the CHAUVET DJ DMX-4LED 4-Channel Dimmer Pack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|
Product description The Chauvet DMX-4LED 4-Channel Dimmer Pack is a rugged dimmer/relay unit with up to 4-channels of DMX assignable and non-DMX control. Independently switch and dim fixtures and lighting effects. Each of the 4 sets of outlets (duplex) can be set to any DMX address and independently set as a dimmer or relay. In addition, the DMX-4LED features 16 user selectable chase patterns built in. - 4-channel dimmer/switch pack optimized for use with small LED fixtures
- Each channel can be set to any DMX address which makes it extremely easy to program
- Each channel can be individually set as a dimmer or a switch which offers great flexibility
- 4 duplex outlets allow up to 8 devices to be controlled simultaneously
- Separate LED indicators clearly show the status of each channel
- Easy-access to built-in automated programs generate a synchronized show
- Automated programs have adjustable speeds and dimmer levels which offer great control without DMX
UPC: 781462206277 In the Box CHAUVET DJ DMX-4LED 4-Channel Dimmer Pack 2 Year Warranty Manual PDF 820.9kbteqwuzav Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ DMX-4LED 4-Channel Dimmer Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

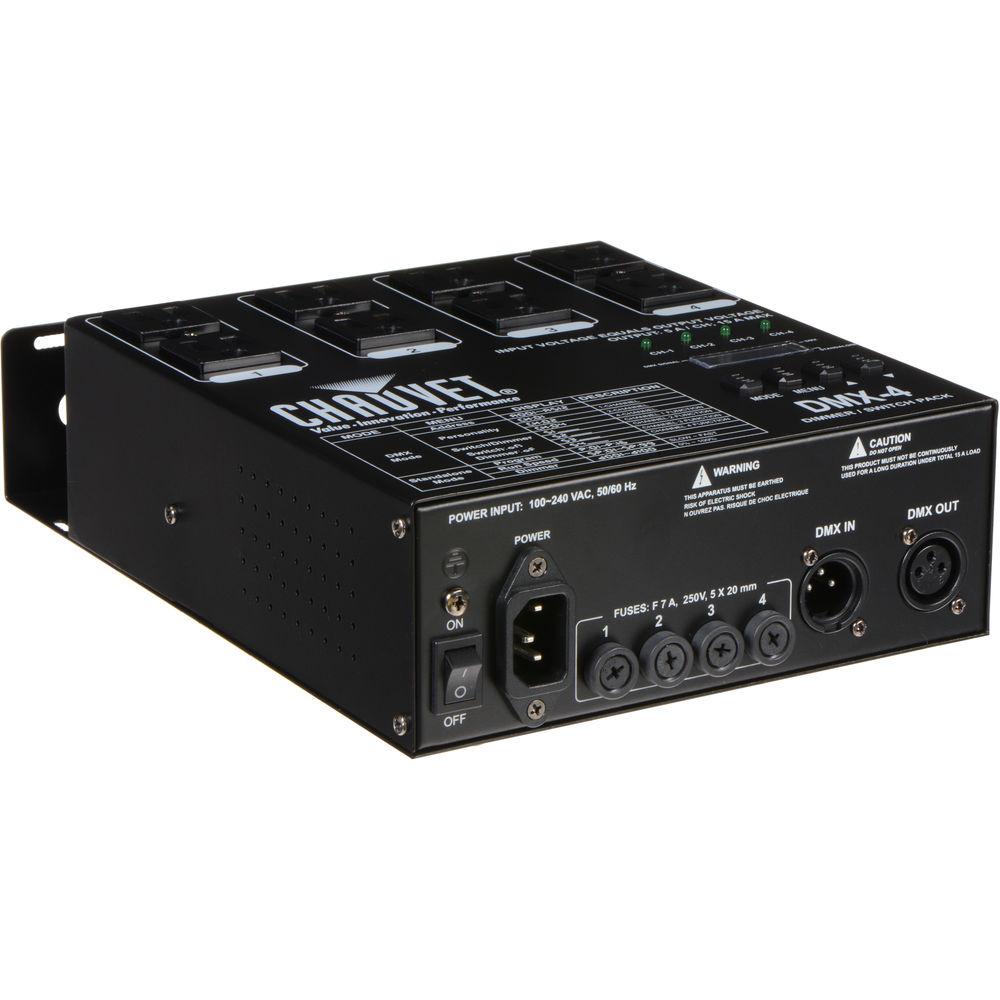

Technical parametersCHAUVET DJ DMX-4 Specs | Control | Data input: locking 3-pin XLR female socket
Data output: locking 3-pin XLR male socket Data pin configuration: Pin 1 shield, pin 2 (-), pin 3 (+)
Protocol: DMX-512 USITT DMX Channels (user-configurable): 1, 2, 4 | | Temperature | Maximum ambient temperature: 104° F (40° C)
Indoor use only | | Power Supply | Power output: 5A per channel, 15A max
AC power: Autoswitching 100-240VAC 50/60Hz | | Dimensions (LxWxH) | 8.3 x 7.7 x 2.8" (210 x 194 x 70mm) | | Weight | 5 lbs (2.2 kg) | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 11.2 x 9.8 x 3.7" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 06 owners. Add your rating and experience with the product.
