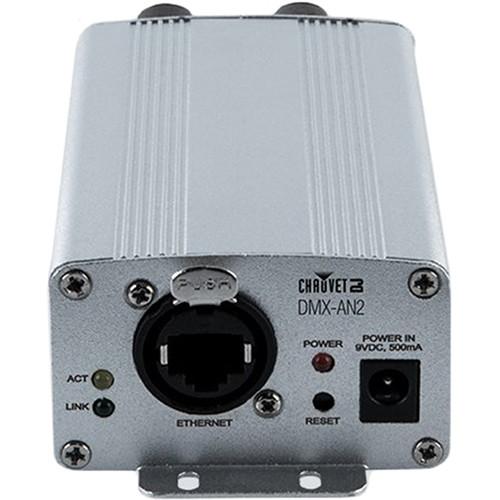

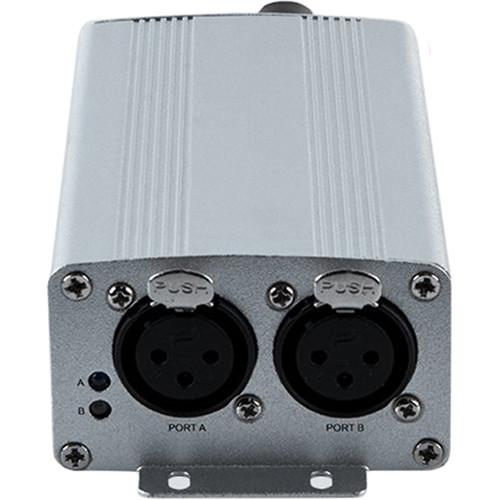

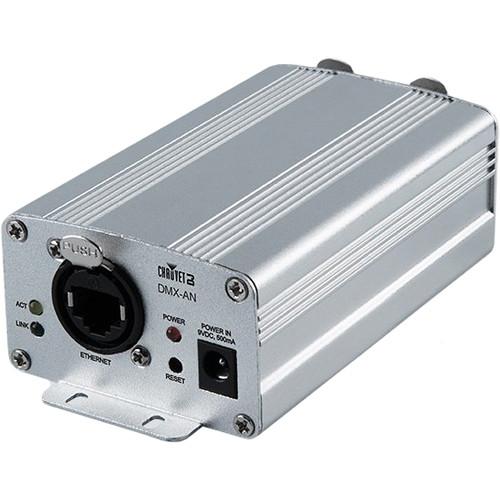

Product description The Chauvet DJ DMX-AN2 is a multipurpose Art-Net/sACN node that converts one Ethernet cable to two DMX universes. With its optical and electrical isolation, the DMX-AN2 is ready for any situation, while the durable Neutrik etherCON in/thru port ensures reliable performance. Both outputs can be set to either Art-Net or sACN, and the DMX-AN2 functions as an Art-Net to DMX or DMX to Art-Net interface. The unit supports Power over Ethernet (POE) or can be powered by the included external power supply. -
- Multipurpose Art-Net/sACN node converts 1 Ethernet cable to 2 DMX universes
- Optical and electrical isolation is ready for any situation
- No universe/subnet setup with the built-in web-based GUI
- Durable Neutrik etherCON in/thru port ensures reliability
- Automatically redirect the web page if the IP address is changed
- Supports Power over Ethernet (POE) or an external power supply
- Both outputs can be set to either Art-Net or sACN
- Functions as an Art-Net to DMX or DMX to Art-Net interface
- Onboard LED indicators quickly inform status
- Integrated mounting bracket to quickly install into any location
UPC: 781462218577 In the Box CHAUVET DJ DMX-AN2 - DMX/Art-Net/sACN Interface Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ DMX-AN2 - DMX Art-Net sACN Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ DMX-AN2 Specs | DMX Channels | 1024 | | Connectors | 2 x DMX 3-Pin XLR | | Control Protocol | Art-Net, DMX, sACN
Art-Net Version: 3 | | Voltage | Input Voltage: 9 VDC, 500 mA
External Power Supply: 100 to 240 VAC, 50/60 Hz
POE: 48 V, 0.4 A | | Approvals | CE | | Dimensions | 4.7 x 2.5 x 1.5" / 120 x 64 x 39 mm | | Weight | 0.4 lb / 0.2 kg | | | | Package Weight | 0.845 lb | | Box Dimensions (LxWxH) | 7.8 x 6.4 x 2.9" |
