User Manual for CHAUVET DJ EVE E-100Z Ellipsoidal LED Spot Fixture Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ EVE E-100Z Ellipsoidal LED
- Product category: Stage & Studio CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ Stage & Studio
 |
User manual for the CHAUVET DJ EVE E-100Z Ellipsoidal LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

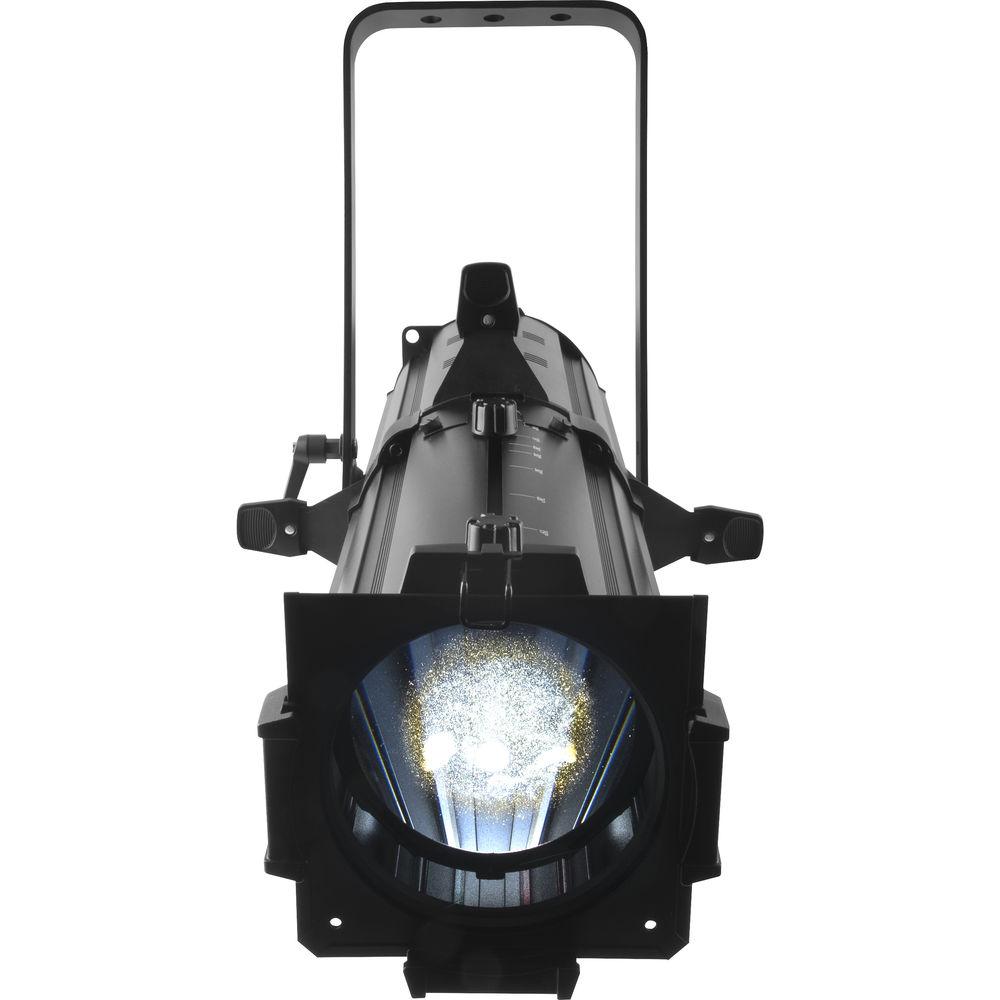

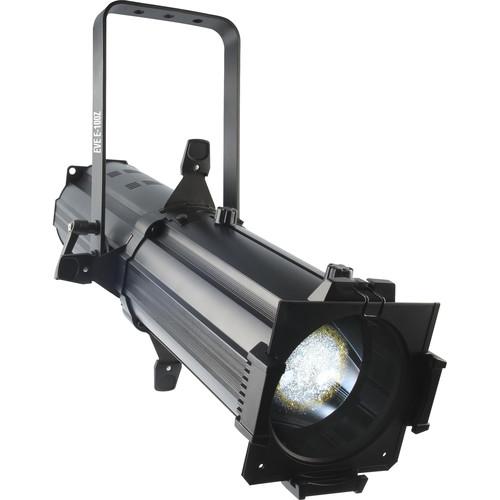

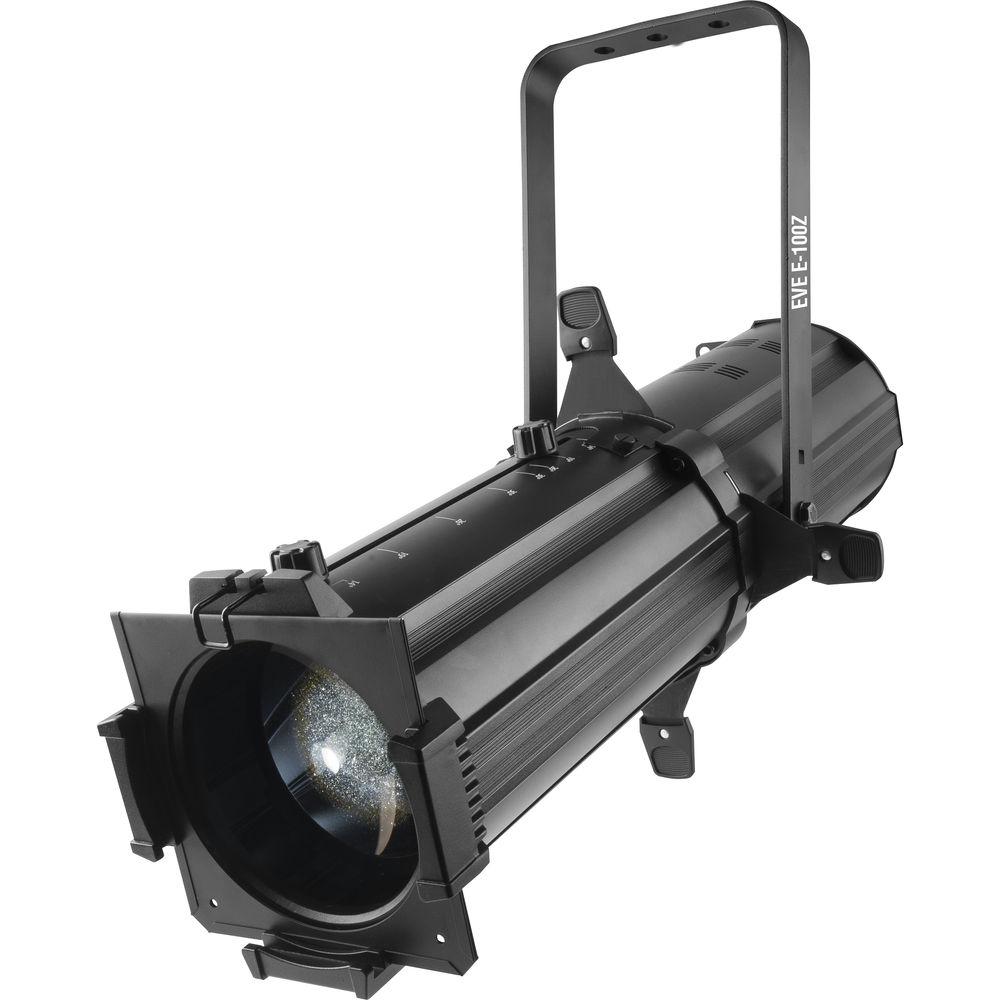

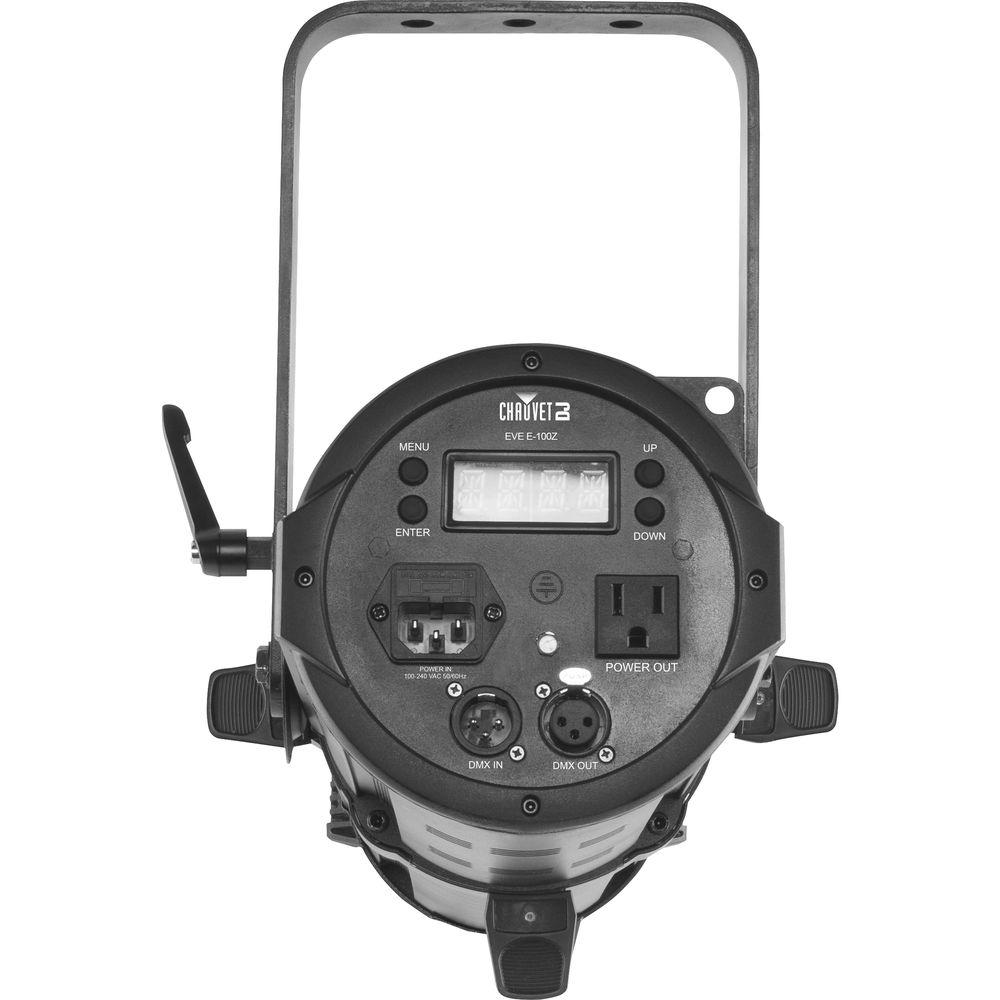

Product description The EVE E-100Z is an ellipsoidal LED spot fixture with a built-in dimmer and DMX control. It is primarily designed for use in a theatrical lighting grid, but it can also be used in film and video productions. Dimming the fixture is controllable locally or via DMX choosing dimming with either 1 or 3 channels of control. Manual zoom and focus adjustment lets you tune your light's coverage, which can be further refined with the included framing shutters. A built-in LED info screen aids you in navigating the menu system.
The EVE E-100Z incorporates an internal gobo slot that accepts glass or metal gobos. This enables you to project a shape or image, and the zoom and focus knobs allow you to control the size and focus of the image. The included gel frame enables placing a gel or diffusion in front of the ellipsoidal. The neutral yoke features three pre-drilled holes that you can use to mount your choice of clamps or stand adapters. The integrated safety loop provides a secure point for a safety cable when hanging the fixture from a grid. - Attributes
-
- Compact LED ellipsoidal outputs a hard-edged beam ideal for gobo projection
- Highlight areas by altering the projected beam with built-in framing shutters
- The warm white 100-watt LED bulb is rated for 50,000 hours
- Included removable power cord
- The fixture supports power pass-through allowing you to daisy chain 9 lights together on a 120-volt line (16 on a 230-volt line) and not have to run discrete power cords to each fixture
- DMX
- 3-channel DMX profile allows you to control the brightness, dimming speed settings, and strobe
- Strobe is controllable from 0 to 30 Hz
UPC: 781462215361 In the Box CHAUVET DJ EVE E-100Z Ellipsoidal LED Spot Fixture Gobo Holders for Glass and Steel Gobos Gel Frame 4 x Framing Shutters Removable Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ EVE E-100Z Ellipsoidal LED Spot Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Eve E-100Z Specs | Light Source | 1 x 100 W LED (warm white) | | Life Expectancy | 50,000 hours | | Illuminance | 14°: 15,100 lux @ 6.6' / 2.0 m
30°: 3,800 lux @ 6.6' / 2.0 m | | Gobos | Gobo Size M
Outside Dimensions: 2.6" / 66 mm
Image Area: 1.9" / 47 mm
Thickness: 0.08" / 2 mm (max) | | Zoom Angle | 14 to 30° (manual) | | Focus | Manual | | Strobe Rate | 0 to 30 Hz | | Dimming | Local and DMX dimming | | DMX Connectors | Input: 1 x 3-pin XLR
Output: 1 x 3-pin XLR | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | Input: IEC
Output: Edison
| | Power Linking | 120 V: 9 units
230 V: 16 units | | Power Consumption | 120 V (60 Hz): 106 W, 0.9 A
230 V (50 Hz): 103 W, 0.5 A | | Approvals | CE, MET | | Dimensions | 24 x 7.2 x 16.9" / 611 x 183 x 430 mm | | Weight | 12.6 lb / 5.7 kg | | | | Package Weight | 18.5 lb | | Box Dimensions (LxWxH) | 29.5 x 12.0 x 12.0" |
