CHAUVET DJ EVE E-50Z 50W LED

Search your instruction manual in PDF to download

User Manual for CHAUVET DJ EVE E-50Z 50W LED Ellipsoidal

Click to enlarge the picture
CHAUVET DJ EVE E-50Z 50W LED Ellipsoidal Contents of the user manual for the CHAUVET DJ EVE E-50Z 50W LED
  • Product category: Stage & Studio CHAUVET DJ
  • Brand: CHAUVET DJ
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for CHAUVET DJ Stage & Studio

CHAUVET DJ EVE E-50Z 50W LED Ellipsoidal CHAUVET DJ EVE E-50Z 50W LED Ellipsoidal CHAUVET DJ EVE E-50Z 50W LED Ellipsoidal CHAUVET DJ EVE E-50Z 50W LED Ellipsoidal CHAUVET DJ EVE E-50Z 50W LED Ellipsoidal CHAUVET DJ EVE E-50Z 50W LED Ellipsoidal
User manual for the CHAUVET DJ EVE E-50Z 50W LED contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any CHAUVET DJ product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!



Product description

  • EVE E-50Z by CHAUVET DJ

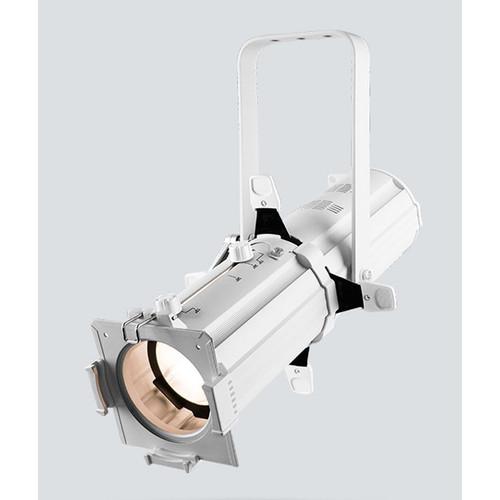

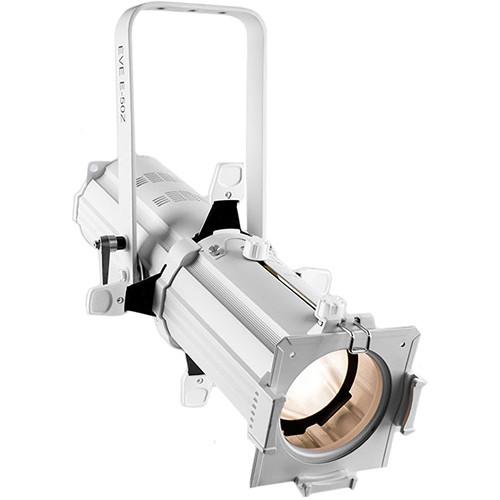

The white EVE E-50Z 50W LED Ellipsoidal from Chauvet DJ is a lighting fixture designed to shine a hard-edged, warm white spotlight for mobile and permanent installations. It features D-Fi USB compatibility for wireless Master/Slave or DMX control and is equipped with manual zoom for flexibility to project from any distance.The lighting fixture's framing shutters let you alter and control the projected beam. The EVE E-50Z fixture includes holders for glass and steel gobos as well as a gel frame. It can operate in standalone mode, which eliminates the need for DMX control, and you can save time running extension cords by power-linking multiple units together.

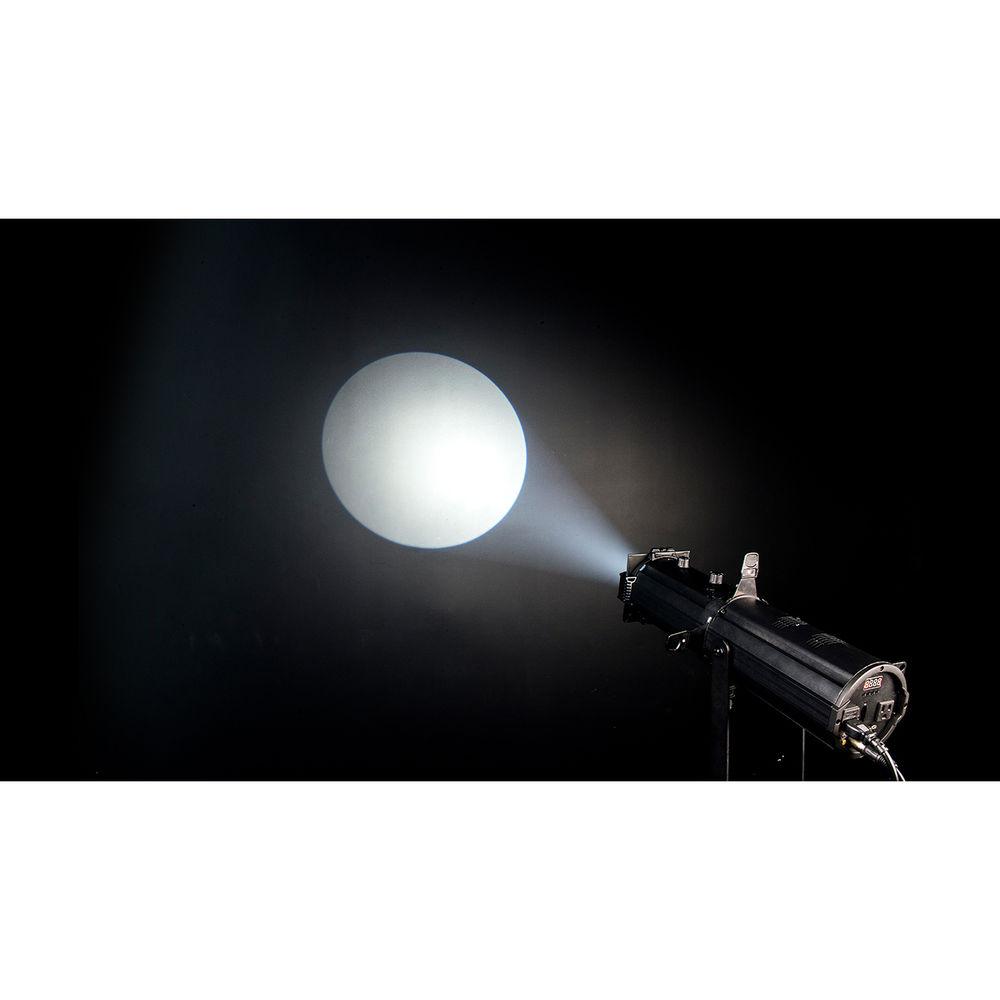

  • LED Ellipsoidal shines a hard-edged, warm white spot in any direction.

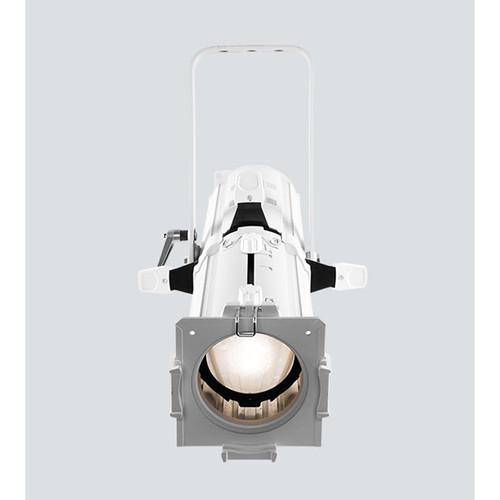

  • Easily highlight areas by altering the projected beam with framing shutters.
  • Flexibility to project from any distance using the manual zoom.
  • D-Fi USB compatibility for wireless Master/Slave or DMX control.
  • Flicker-free operation suitable for on-camera use.

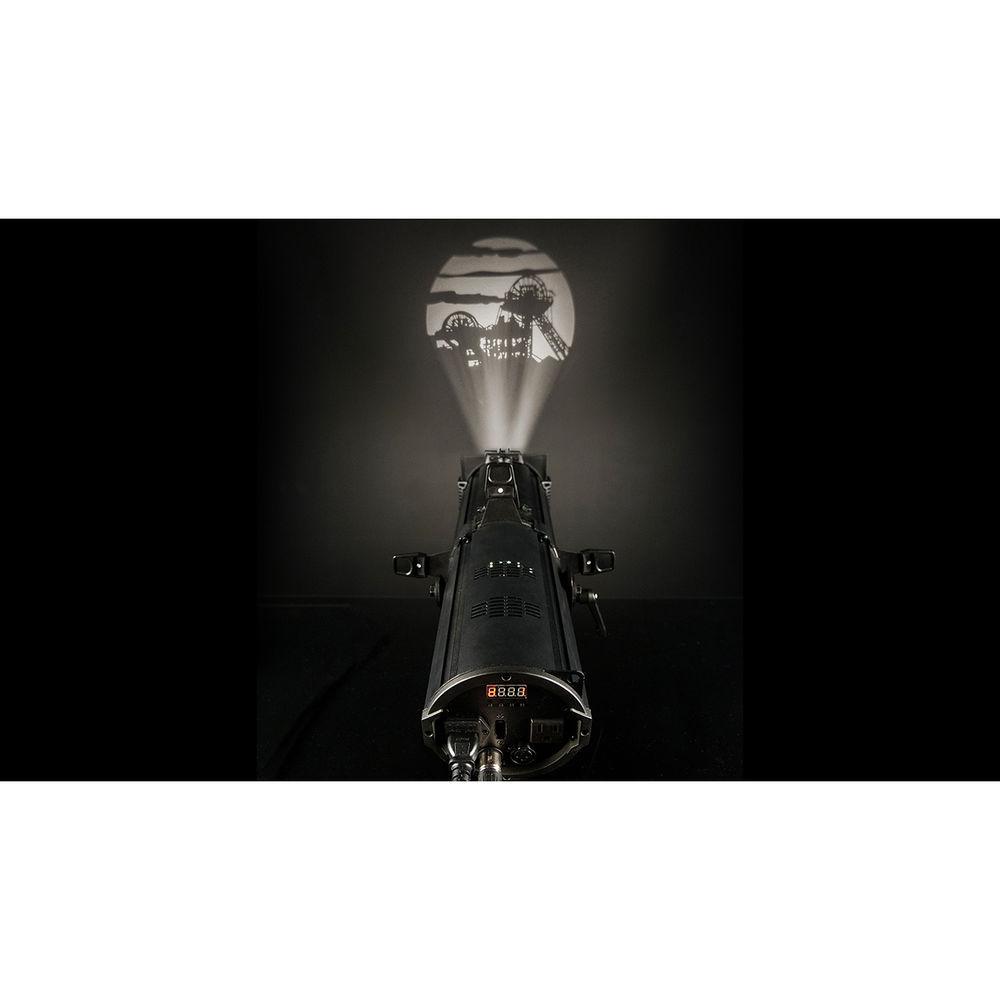

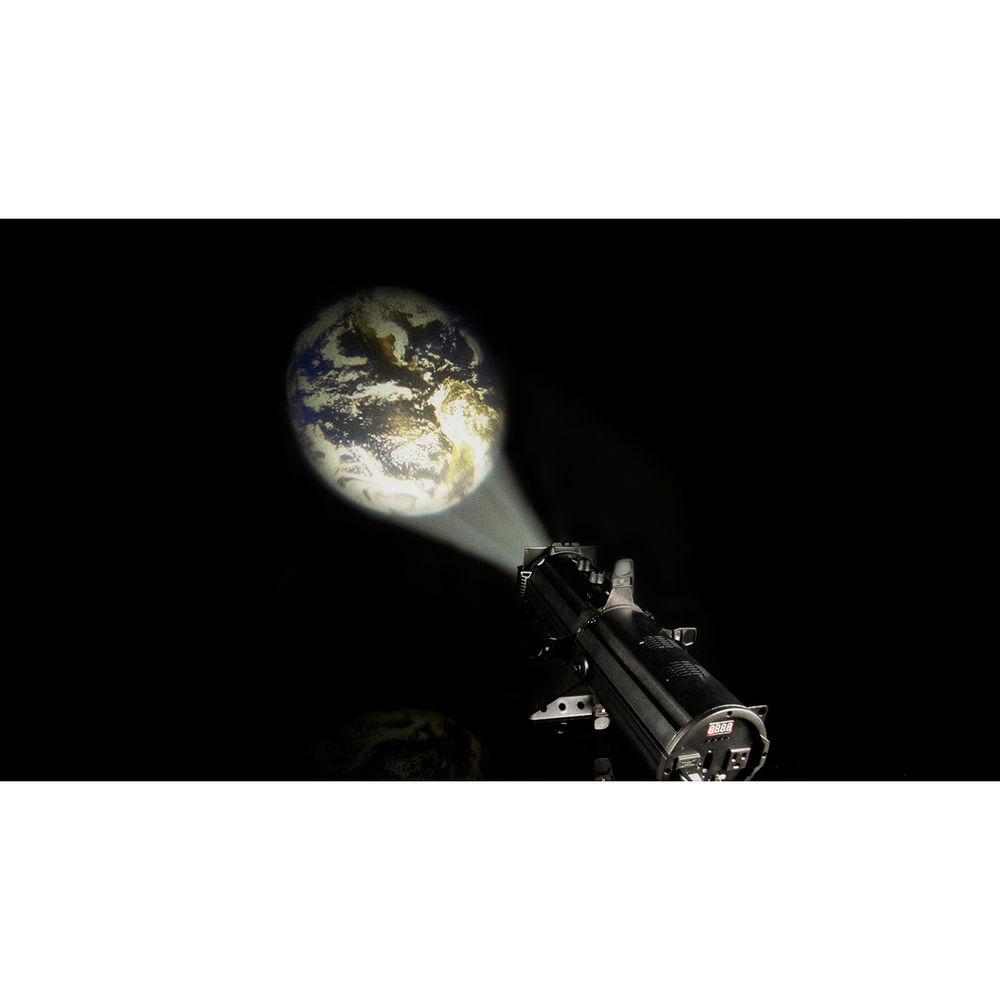

  • Includes holders for glass and steel gobos and a gel frame.
  • Save time running extension cords by power linking multiple units.
  • Eliminate the need for DMX control with standalone operation.
UPC: 781462216269 In the Box CHAUVET DJ EVE E-50Z 50W LED Ellipsoidal (White)
  • Seetronic Powerkon Power Cord
  • Glass Gobo Holder
  • Framing Shutters
  • Gel Frame
  • Steel Gobo Holder
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the CHAUVET DJ EVE E-50Z 50W LED Ellipsoidal in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    CHAUVET DJ EVE E-50Z Specs

    DMX Channels 1 or 3

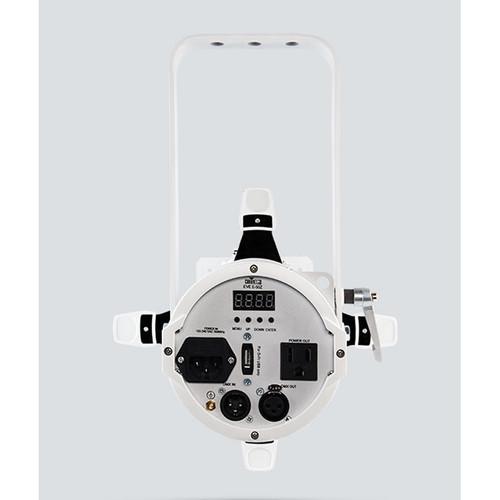

    DMX Connectors 3-pin XLR
    Light Source 1 x LED (warm white) 50 W, (1.3 A), 50,000 hours life expectancy
    Strobe Rate 0 to 29 Hz
    PWM Frequency 1.2 kHz
    Illuminance 20°: 7,910 lux at 2 m
    39°: 2,710 lux at 2 m
    Power Linking 16 units at 120 V
    26 units at 230 V
    Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)
    Power and Current 59 W, 0.5 A at 120 V, 60 Hz
    63 W, 0.3 A at 230 V, 50 Hz
    Gobo Size Outside: 53.3 mm
    Image: 43 mm
    Max Thickness: 2 mm
    Zoom Angle Manual: 20 to 39°
    Approvals CE and MET
    Color Temperature 3500K
    Gel Frame Holder 5.5" (14 cm)
    Controllers D-Fi USB
    CRI 81
    Dimensions (L x H x D) 18.9 x 6.2 x 15" (480 x 157 x 381 mm)
    Weight 9.2 lb (4.2 kg)
    Package Weight 14.3 lb
    Box Dimensions (LxWxH) 25.0 x 11.8 x 11.8"
