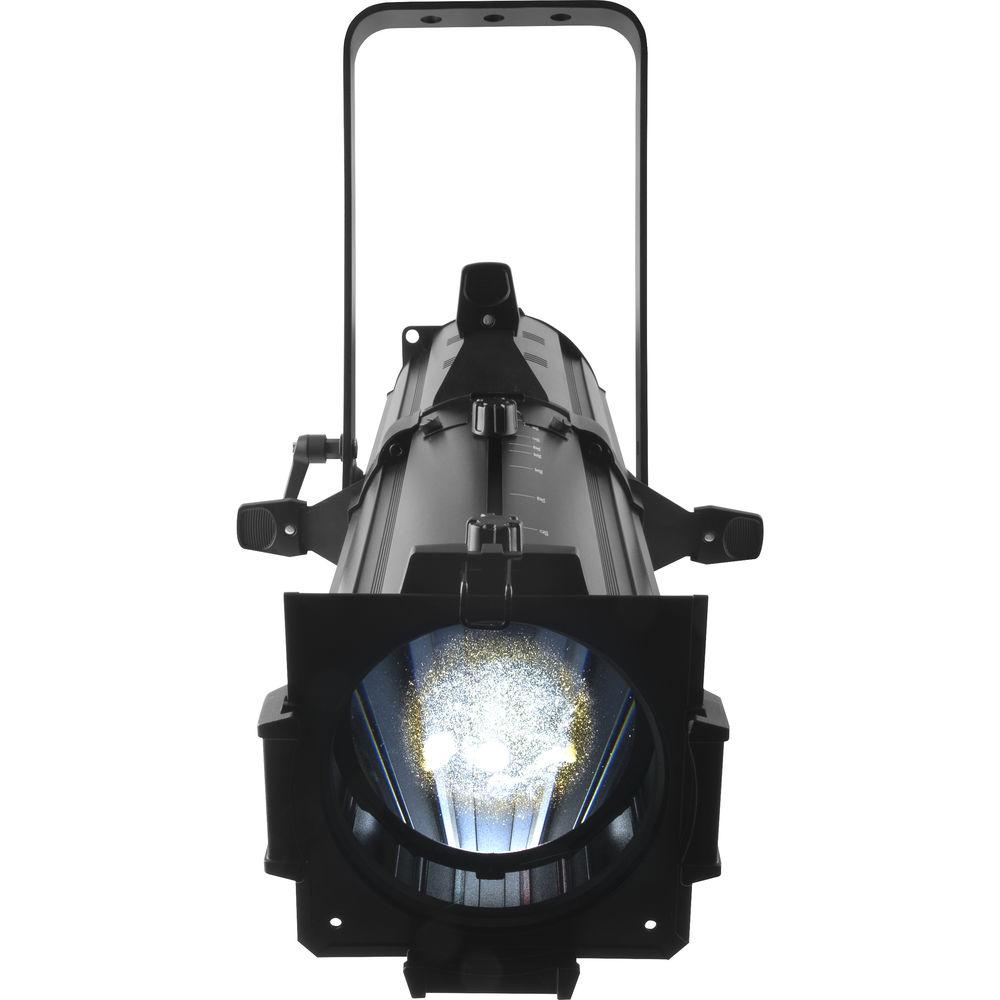

Product description The black EVE E-50Z 50W LED Ellipsoidal from Chauvet DJ is a lighting fixture designed to shine a hard-edged, warm white spotlight for mobile and permanent installations. It features D-Fi USB compatibility for wireless Master/Slave or DMX control and is equipped with manual zoom for flexibility to project from any distance.The lighting fixture's framing shutters let you alter and control the projected beam. The EVE E-50Z fixture includes holders for glass and steel gobos as well as a gel frame. It can operate in standalone mode, which eliminates the need for DMX control, and you can save time running extension cords by power-linking multiple units together. - LED Ellipsoidal shines a hard-edged, warm white spot in any direction.
- Easily highlight areas by altering the projected beam with framing shutters.
- Flexibility to project from any distance using the manual zoom.
- D-Fi USB compatibility for wireless Master/Slave or DMX control.
- Flicker-free operation suitable for on-camera use.
- Includes holders for glass and steel gobos and a gel frame.
- Save time running extension cords by power linking multiple units.
- Eliminate the need for DMX control with standalone operation.
UPC: 781462215828 In the Box CHAUVET DJ EVE E-50Z 50W LED Ellipsoidal (Black) Seetronic Powerkon Power Cord Glass Gobo Holder Framing Shutters Gel Frame Steel Gobo Holder Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ EVE E-50Z 50W LED Ellipsoidal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ EVE E-50Z Specs | DMX Channels | 1 or 3 | | DMX Connectors | 3-pin XLR | | Light Source | 1 x LED (warm white) 50 W, (1.3 A), 50,000 hours life expectancy | | Strobe Rate | 0 to 29 Hz | | PWM Frequency | 1.2 kHz | | Illuminance | 20°: 7,910 lux at 2 m
39°: 2,710 lux at 2 m | | Power Linking | 16 units at 120 V
26 units at 230 V | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power and Current | 59 W, 0.5 A at 120 V, 60 Hz
63 W, 0.3 A at 230 V, 50 Hz | | Gobo Size | Outside: 53.3 mm
Image: 43 mm
Max Thickness: 2 mm | | Zoom Angle | Manual: 20 to 39° | | Approvals | CE and MET | | Color Temperature | 3500K | | Gel Frame Holder | 5.5" (14 cm) | | Controllers | D-Fi USB | | CRI | 81 | | Dimensions (L x H x D) | 18.9 x 6.2 x 15" (480 x 157 x 381 mm) | | Weight | 9.2 lb (4.2 kg) | | | | Package Weight | 15.1 lb | | Box Dimensions (LxWxH) | 25.0 x 11.0 x 10.0" |
