Product description

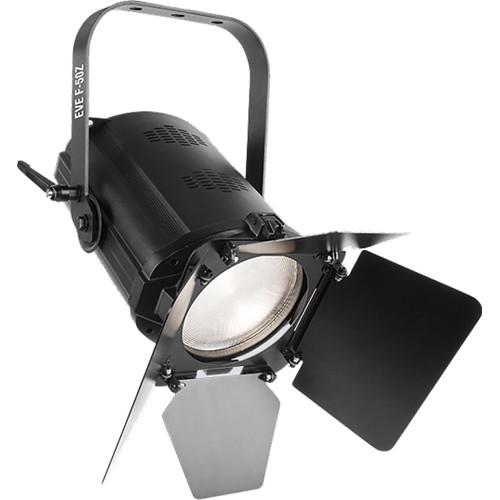

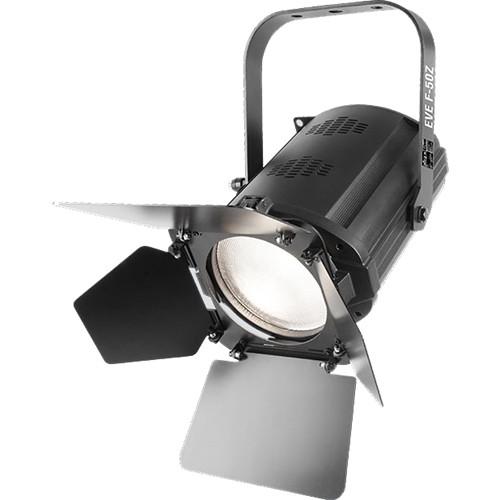

Shine a soft-edged beam on your stage with the EVE F-50Z 50W LED Fresnel Fixture from CHAUVET DJ. Featuring one 3500K LED and a CRI rating of 92, this compact Fresnel will show the true natural colors of a scene and cast in small to medium stages.The light's manual 17-50° zoom functionality gives you the flexibility to project from various distances while compatibility with the optional D-Fi USB transceiver that enables wireless master/slave or DMX control.The EVE F-50Z can also be operated via wired DMX (1- and 3-channel modes) or in a standalone mode. Multiple units can be power-linked to save you the time and hassle of running extension cord. The fixture's auto range of 100 to 240 VAC allows you to plug it anywhere.

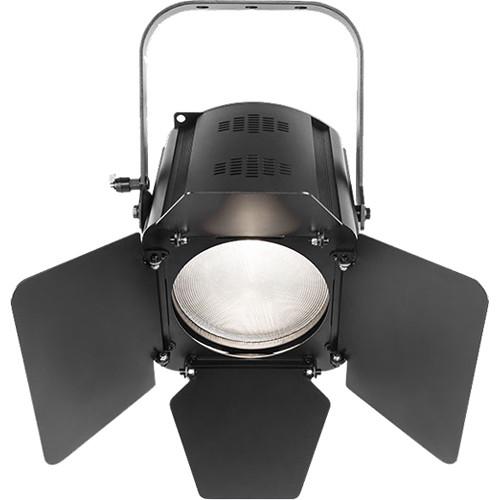

The EVE F-50Z comes with four-leaf barndoors to adjust for tuning your light coverage. A gel frame enables you to add a splash of color to your scene. The integrated yoke features three holes to mount your choice of clamps or stand adapters to the light. UPC: 781462216276 In the Box CHAUVET DJ EVE F-50Z 50W LED Fresnel Fixture
  • Power Cord
  • Barndoors
  • Gel Frame
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the CHAUVET DJ EVE F-50Z 50W LED Fresnel Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: pdf, docx, jpg)

    0%


    Technical parameters

    CHAUVET DJ EVE F-50Z Specs

    Light Source 1 x 50 W / 1.3 A LED
    Color Temperature 3500K
    CRI 92
    LED Life Expectancy 50000 Hours
    Illuminance 17°: 4780 Lux at 6.6' / 2 m
    50°: 998 Lux at 6.6' / 2 m
    17°: 853 Lux at 16.4' / 5 m
    50°: 156 Lux at 16.4' / 5 m
    Beam Angle Narrow: 17°
    Wide: 50°
    Zoom Manual

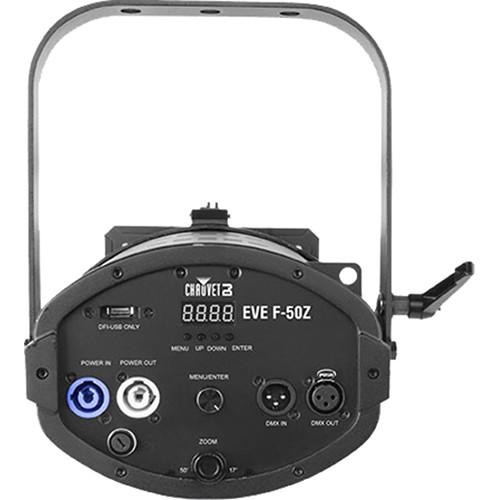

    DMX Channel Modes 1 or 3
    DMX Connectors Input: 1 x 3-Pin XLR
    Output: 1 x 3-Pin XLR
    Controller Compatibility D-Fi USB Transceiver (Available Separately)
    Input Voltage 100-240 VAC, 50/60 Hz
    Power Connectors Input: powerCON Compatible
    Output: powerCON Compatible
    Power Linking 120 V: 16 Units
    230 V: 26 Units
    Power Consumption 120 V (60 Hz): 60 W, 0.5 A
    230 V (50 Hz): 58 W, 0.3 A
    Approvals CE/MET
    Gel Frame Holder 6.25" / 158 mm
    Mounting Hole M12
    Dimensions 11.1 x 8.3 x 13" / 28.1 x 21.2 x 32.8 cm
    Weight 8.41 lb / 3.8 kg
    Package Weight 15.3 lb
    Box Dimensions (LxWxH) 21.0 x 13.8 x 9.6"
