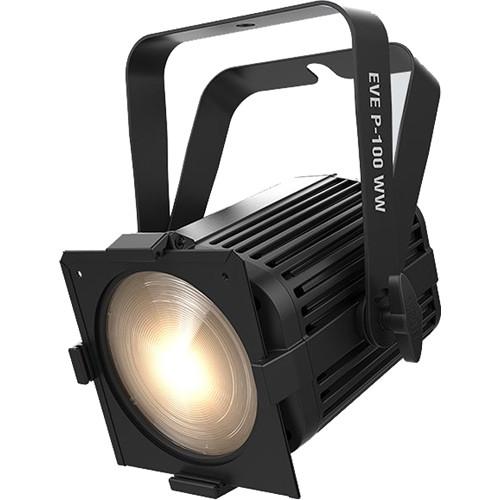

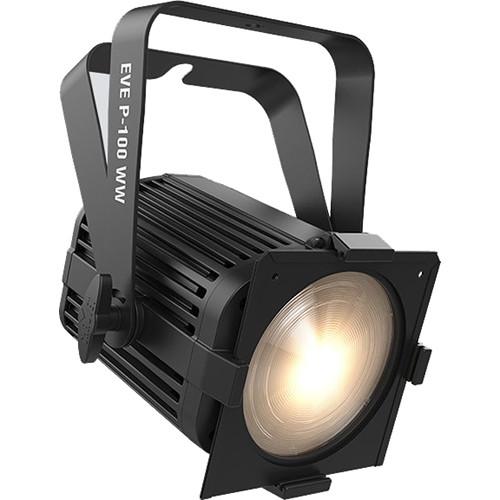

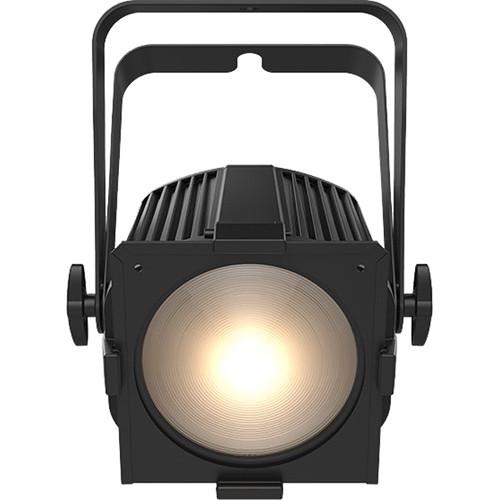

Product description Designed for mobile lighting professionals, the CHAUVET DJ Eve P-100 WW is warm-white LED wash light equipped with a high-output 100W COB LED light source. It comes with two interchangeable magnetic lenses used to alter the fixture's beam angles to either 25, 35, or 53°, or field angles to 40, 50, or 80°. With a 3500K color temperature and flicker-free, silent operation, the unit is well suited for creating bright and even washes for venue uplighting or providing heat-free illumination to performers for video and broadcast applications.The EVE P-100 WW allows for both wired and wireless operation in DMX-controlled configurations. Plug a D-Fi USB transceiver (available separately) into the fixture's USB port and pair with a D-Fi-enabled controller for instant wireless DMX communication, or use a standard 3-pin/5-pin DMX cable for a wired connection. Three DMX channel modes enable varying levels of control over the fixture. For operation without a DMX controller, use the unit in standalone mode with built-in sound-active and automatic programs. You can even synchronize multiple units via master/slave control and create eye-catching, coordinated light shows. Additional controls include an onboard LED display with a 4-button menu for easy navigation.Other features include an auto-sensing power supply and pass-through powerCON I/O to connect a single power cable to the wall and daisy-chain up to 7 units at 120V, or up to 14 units at 230V. Housed in a cast-aluminum housing that provides extra strength without the weight, the EVE P-100 WW comes equipped with a dual-yoke bracket which can be used for conventional mounting to a truss or light stand, or to create a variable-angle floor stand. The fixture ships with a gel frame. - Key Features
-
- High-output warm-white wash light designed for mobile lighting professionals
- Single 100W COB LED
- 3500K color temperature
- Included interchangeable magnetic lenses alter the beam to desired angles
- 25, 35, or 53° beam angles
- 40, 50, or 80° field angles
- Operates in standalone, master/slave, or DMX modes
- DMX channel modes: 1, 2, or 4
- USB port lets you plug the D-Fi USB transceiver (available separately), for wireless master/slave or DMX control
- Built-in automated programs, sound-activated
- LED strobe effect
- High-frequency dimmer: 0 to 100%
- Daisy-chain power for up to 7 units at 120V, or 14 units at 230V
- Multi-voltage operation: 100 to 240 VAC, auto-ranging
- powerCON connectors for secure power connections and power linking
- LED display with 4-button menu for easy navigation
- Flicker-free and silent operation for video applications
- Cast-aluminum housing provides extra strength without the weight
- Double-bracket yoke can be used for conventional mounting or as a variable-angle floor stand
- Built-in 6.25" accessory slot to hold barndoors
- Includes gel frame
UPC: 781462218188 In the Box CHAUVET DJ Eve P-100 WW Warm-White LED Wash Light 25° Lens 35° Lens Gel Frame powerCON Power Cord Hanging Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Eve P-100 WW Warm-White LED Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ EVE P-100 WW Specs | Light Source | 1 x 100 W warm-white COB LED
Current: 2.7 A
Life Expectancy: 50,000 hours | | Color Temperature | 3500K | | Illuminance | 25°:
7920 lux at 6.6' / 2 m, 1369 lux at 16.4' / 5 m
35°:
4340 lux at 6.6' / 2 m, 609 lux at 16.4' / 5 m
53°:
1469 lux at 6.6' / 2 m, 318 lux at 16.4' / 5 m (no lens installed) | | Beam Angle | 25, 35, or 53° | | Field Angle | 40, 50, or 80° | | Operating Modes | DMX
Master/slave
Standalone | | Programs and Effects | Automatic
Sound-active
Strobe: Variable from 0 to 25 Hz

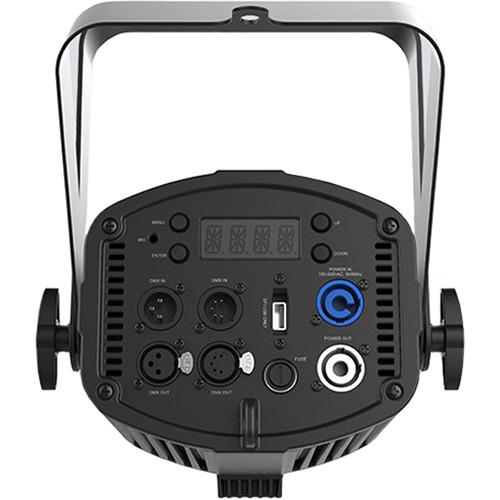

Electronic Dimming: 0 to 100% | | DMX Interface | DMX Channels Modes: 1, 2, or 4 | | DMX Connectors | 3-pin XLR, in/out
5-pin XLR, in/out | | Wireless Control | With D-Fi USB transceiver (available separately) | | Manual Controls | 4-character LED display
4-button control interface | | Power Linking | 7 units at 120 V
14 units at 230 V | | Power Requirements | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power and Current | 120 V (60 Hz): 122 W, 1.2 A
230 V (50 Hz): 119 W, 0.5 A | | Power Connectors | Input: 1 x powerCON
Output: 1 x powerCON
Power Cord: Edison | | Operating Temperature | 104°F / 40°C, maximum | | Cooling | Fanless | | Housing | Cast aluminum | | Mounting | Double-bracket yoke | | Approvals | CE, MET | | Gel Frame Holder | 6.25" / 158.75 mm | | Dimensions | 8.6 x 9.65 x 12.0" / 22.0 x 24.5 x 30.5 cm | | Weight | 7.6 lb / 3.5 kg |
