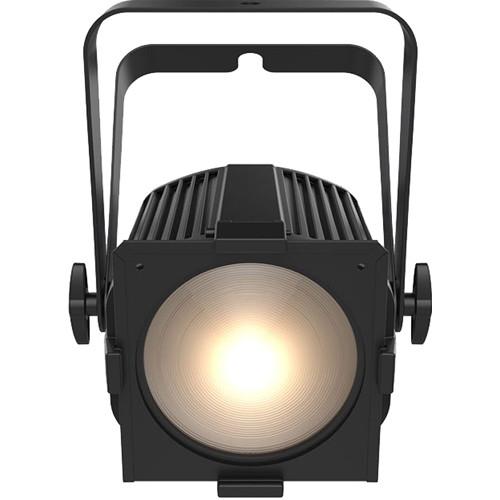

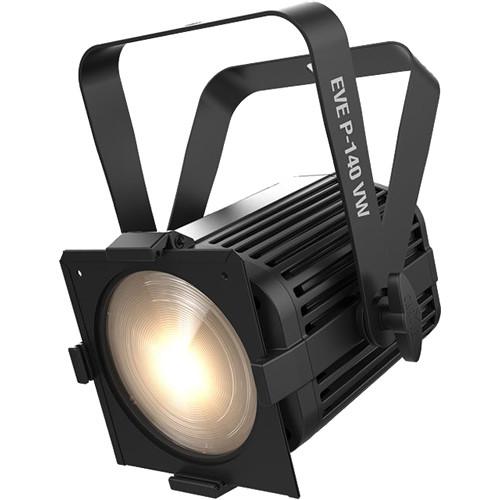

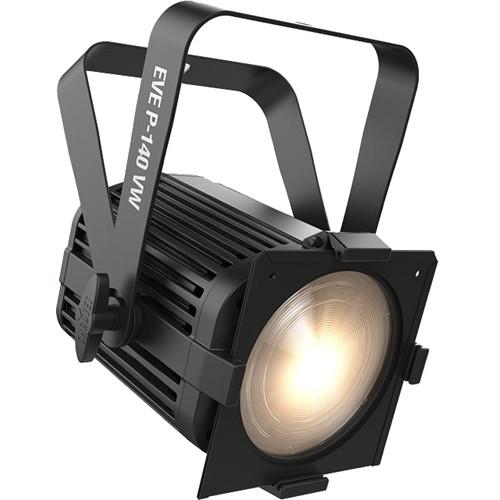

Product description Designed for mobile lighting professionals, the CHAUVET DJ EVE P-140 VW is a 140W variable white LED wash light with thirteen cool white, thirteen warm white, and fourteen amber diodes. It comes with two interchangeable magnetic lenses used to alter the fixture's beam angles to either 25, 35, or 45°, or field angles to 45, 55, or 65°. With color temperatures ranging from 2700 to 13,000K, flicker-free and silent operation, and built-in dimming curves, the unit is well suited for matching the light temperature to existing fixtures or ambient light in video applications.The EVE P-140 VW allows for both wired and wireless operation in either standalone or DMX-controlled configurations. Plug a D-Fi USB transceiver (available separately) into the fixture's USB port and pair with a D-Fi-enabled controller for instant wireless DMX communication, or use a standard 3-pin/5-pin DMX cable for a wired connection. Three DMX channel modes enable varying levels of control over the fixture. For operation without a DMX controller, use the built-in programs in either Sound-Active or automatic mode. You can even synchronize multiple units via Master/Slave control, to create coordinated light shows. Additional controls include an on-board menu with digital display and the IRC-6 wireless remote (available separately).Other features include an auto-sensing power supply and pass-through powerCON I/O to connect a single power cable to the wall and daisy-chain up to 9 units at 120V, or up to 16 units at 230V. Housed in a cast-aluminum housing that provides extra strength without the weight, the EVE P-140 VW comes equipped with a dual-yoke bracket that can be used for conventional mounting to a truss or lighting stand, or to create a variable-angle floor stand. The fixture ships with a gel frame. - Key Features
-
- Robust, variable-white wash light designed for mobile lighting professionals
- 40 x 3.5W LEDs (cool-white, warm-white, and amber)
- 2700 to 13,000K adjustable white color temperatures can match ambient daylight, tungsten light, or anything in-between
- Included interchangeable magnetic lenses alter the beam to desired angles
- 25, 35, or 45° field/beam angles
- 3 x DMX channel modes
- USB port lets you plug the D-Fi USB transceiver (available separately), for wireless Master/Slave or DMX control
- Standalone or Master/Slave configuration
- Built-in automated programs, sound-activated
- Color macros
- LED strobe effect
- Variable electronic dimmer: 0-100%
- Daisy-chain power for up to 8 units at 120V, or 16 units at 230V
- Multi-voltage operation: 100-240 VAC, auto-ranging
- powerCON connectors for secure power connections and power linking

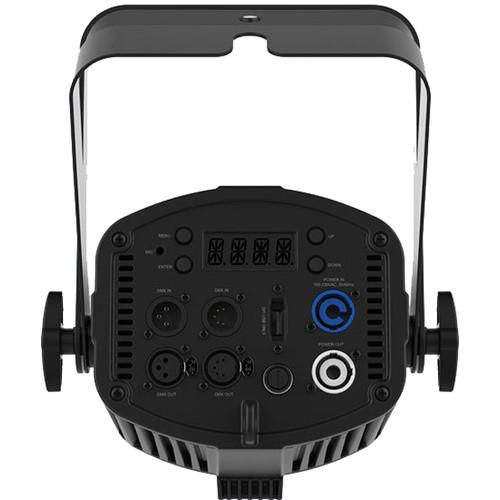

- LED display with 4-button menu for easy navigation
- Flicker-free and silent operation for video applications
- Cast-aluminum housing provides extra strength without the weight
- Double-bracket yoke can be used for conventional mounting or as a variable-angle floor stand
- Compatible with IRC-6 wireless remote
- Built-in gel frame holder and 6.25" accessory slot to hold barn doors
- Includes gel frame
UPC: 781462217945 In the Box CHAUVET DJ EVE P-140 VW Variable-White LED Wash Light 25° Lens 45° Lens Gel Frame Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ EVE P-140 VW Variable-White LED Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ EVE P-140 VW Specs | Light Source | 40 x 3.5 W LEDs (13 x cool white, 13 x warm white, 14 x amber)
Total Power: 140 W
Current: 2.4 A
Life Expectancy: 50,000 hours | | Color Temperature | 2700 to 13,000K | | Illuminance | 2490 lux at 6.6' / 2 m (25°)
1245 lux at 6.6' / 2 m (35°)
806 lux at 6.6' / 2 m (45°) | | PWM Frequency | 2 kHz | | Field Angle | 25, 35, or 45° | | Beam Angle | 25, 35, or 45° | | Operating Modes | DMX
Master/Slave
Standalone | | Effects | Electronic Dimming: 0-100%, with dimming curves
Auto Programs
Sound-Active
Color macros
Strobe: Variable from 0 to 34 Hz | | DMX Interface | DMX Channels Modes: 3, 4, or 9
| | DMX Connectors | 3-pin XLR, in/out
5-pin XLR, in/out | | Wireless Control | D-Fi USB transceiver (available separately)
IRC-6 remote (available separately) | | Manual Controls | 4-character LED display
4-button control interface | | Power Linking | 8 units at 120 V
16 units at 230 V | | Power Requirements | 100-240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | Input: 1 x powerCON
Output: 1 x powerCON | | Power and Current | 120 V (60 Hz): 111 W, 0.9 A
230 V (50 Hz): 112 W, 0.5 A | | Cooling | Fanless | | Housing | Cast aluminum | | Mounting | Double-bracket yoke | | Approvals | CE, MET | | Dimensions | 8.60 x 9.65 x 12.00" / 220.00 x 245.00 x 305.00 mm | | Weight | 7.6 lb / 3.5 kg |
