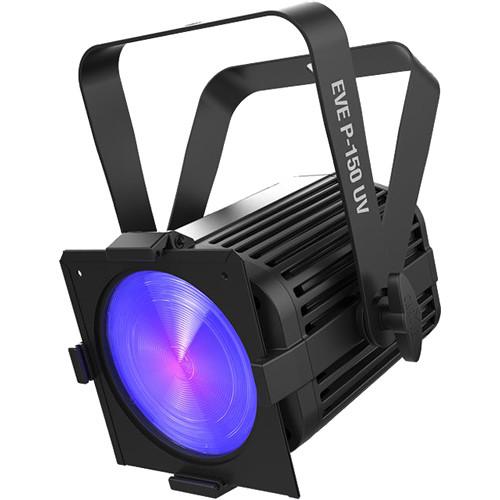

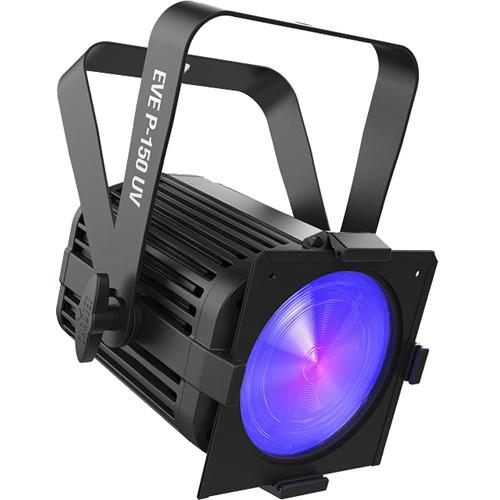

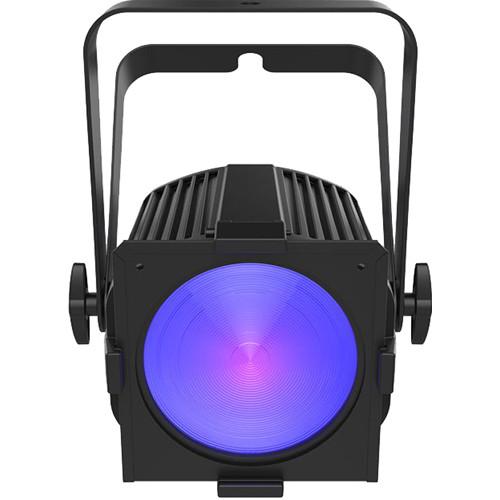

User Manual for CHAUVET DJ EVE P-150 UV LED Black Light Cannon Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ EVE P-150 UV LED
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ EVE P-150 UV LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|
Product description Designed for mobile lighting professionals, the CHAUVET DJ EVE P-150 UV is a 150W LED black light cannon with forty UV (ultraviolet) diodes. Featuring two interchangeable magnetic lenses used to alter the fixture's beam angles to either 25, 35, or 45°, it provides wide ultraviolet washes that enhance the appearance of white or fluorescent colors with a supernatural glow, ideal for clubs, performance stages, theatrical productions, or special-effects installations.The EVE P-150 UV allows for both wired and wireless operation in either standalone or DMX-controlled configurations. Plug a D-Fi USB transceiver (available separately) into the fixture's USB port and pair with a D-Fi-enabled controller for instant wireless DMX communication, or use a standard 3-pin/5-pin DMX cable for a wired connection. Two DMX channel modes enable varying levels of control over the fixture. For operation without a DMX controller, use the built-in programs in either Sound-Active or automatic mode. You can even synchronize multiple units via Master/Slave control, to create coordinated light shows. Additional controls include an on-board menu with digital display and the IRC-6 wireless remote (available separately).Other features include flicker-free and silent operation for video applications, an auto-sensing power supply, and pass-through powerCON I/O to connect a single power cable to the wall and daisy-chain up to 9 units at 120V, or up to 16 units at 230V. Housed in a cast-aluminum enclosure that provides extra strength without the weight, the EVE P-150 UV comes equipped with a dual-yoke bracket that can be used for conventional mounting to a truss or lighting stand, or to create a variable-angle floor stand. The fixture ships with a gel frame. - Key Features
-
- Robust LED black light cannon designed for mobile lighting professionals
- 40 x UV LEDs, 150W total
- Included interchangeable magnetic lenses alter the beam to desired angles
- 25, 35, or 45° beam angles
- 2 x DMX channel modes
- USB port lets you plug the D-Fi USB transceiver (available separately), for wireless Master/Slave or DMX control
- Standalone or Master/Slave configuration
- Built-in automated programs, sound-activated
- LED strobe effect
- Variable electronic dimmer: 0-100%
- Daisy-chain power for up to 8 units at 120V, or 16 units at 230V
- Multi-voltage operation: 100-240 VAC, auto-ranging

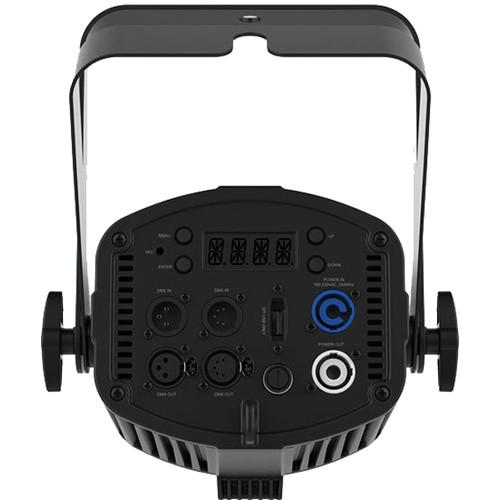

- powerCON connectors for secure power connections and power linking
- LED display with 4-button menu for easy navigation
- 3- and 5-pin DMX I/O
- Flicker-free and silent operation for video applications
- Cast-aluminum housing provides extra strength without the weight
- Double-bracket yoke can be used for conventional mounting or as a variable-angle floor stand
- Compatible with IRC-6 wireless remote (available separately)
- Built-in gel frame holder and 6.25" accessory slot to hold barn doors
- Includes gel frame
UPC: 781462217952 In the Box CHAUVET DJ EVE P-150 UV LED Black Light Cannon 25° Lens 45° Lens Gel Frame Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ EVE P-150 UV LED Black Light Cannon in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ EVE P-150 UV Specs | Light Source | 40 x 3.75 W UV (ultraviolet) LEDs
Total Power: 150 W
Current: 2 A
Life Expectancy: 50,000 hours | | Wavelength | 395 nm | | PWM Frequency | 2 kHz | | Beam Angle | 25, 35 (no lens), or 45° | | Operating Modes | DMX
Master/Slave
Standalone | | Effects | Electronic Dimming: 0-100%, with dimming curves
Auto Programs
Sound-Active
Color macros
Strobe: Variable from 0 to 34 Hz | | DMX Interface | DMX Channels Modes: 1 or 5 | | DMX Connectors | 3-pin XLR, in/out
5-pin XLR, in/out | | Wireless Control | D-Fi USB transceiver (available separately)
IRC-6 remote (available separately) | | Manual Controls | 4-character LED display
4-button control interface | | Power Linking | 8 units at 120 V
16 units at 230 V | | Power Requirements | 100-240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | Input: 1 x powerCON
Output: 1 x powerCON | | Power and Current | 120 V (60 Hz): 111 W, 0.9 A
230 V (50 Hz): 111 W, 0.5 A | | Cooling | Fanless | | Housing | Cast aluminum | | Mounting | Double-bracket yoke | | Approvals | CE, MET | | Dimensions | 8.6 x 9.65 x 12" / 220 x 245 x 305 mm | | Weight | 7.6 lb / 3.5 kg |
