CHAUVET DJ EZ Laser RGFX Battery-Powered

Search your instruction manual in PDF to download

User Manual for CHAUVET DJ EZ Laser RGFX Battery-Powered Laser with Wireless Remote

Click to enlarge the picture
CHAUVET DJ EZ Laser RGFX Battery-Powered Laser with Wireless Remote Contents of the user manual for the CHAUVET DJ EZ Laser RGFX Battery-Powered
  • Product category: DJ & Effect Lights CHAUVET DJ
  • Brand: CHAUVET DJ
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for CHAUVET DJ DJ & Effect Lights

CHAUVET DJ EZ Laser RGFX Battery-Powered Laser with Wireless Remote CHAUVET DJ EZ Laser RGFX Battery-Powered Laser with Wireless Remote CHAUVET DJ EZ Laser RGFX Battery-Powered Laser with Wireless Remote CHAUVET DJ EZ Laser RGFX Battery-Powered Laser with Wireless Remote CHAUVET DJ EZ Laser RGFX Battery-Powered Laser with Wireless Remote CHAUVET DJ EZ Laser RGFX Battery-Powered Laser with Wireless Remote CHAUVET DJ EZ Laser RGFX Battery-Powered Laser with Wireless Remote CHAUVET DJ EZ Laser RGFX Battery-Powered Laser with Wireless Remote CHAUVET DJ EZ Laser RGFX Battery-Powered Laser with Wireless Remote
User manual for the CHAUVET DJ EZ Laser RGFX Battery-Powered contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any CHAUVET DJ product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!



Product description

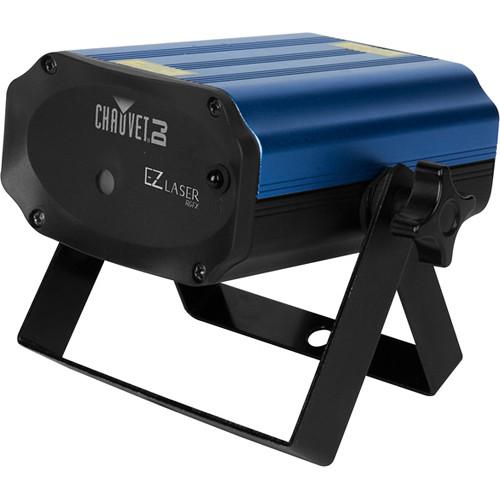

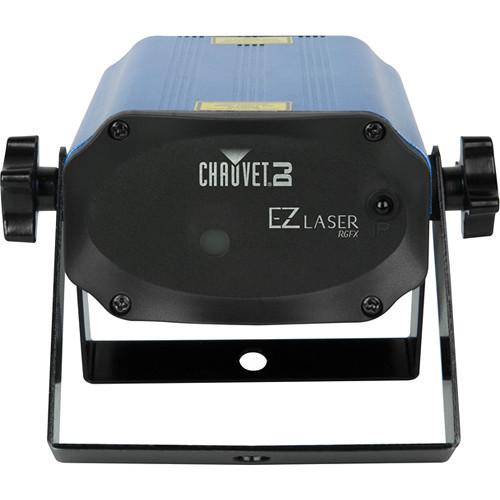

The EZ Laser RGFX from Chauvet is a compact, portable variance-free laser with a wireless IR remote. The unit offers independent control over the red and green lasers, while projecting thousands of beams to create motion effects and customized shows with sound activated and automated programs. The EZ Laser may be powered by the included lithium battery for up to 6 hours of operation on a single charge. The 80° dispersion covers a wide area that looks great with or without fog. The included wireless remote offers on/off control, auto mode settings, sound activation settings, as well as color selection, speed, and strobe. The EZ Laser ships with a power supply and a hanging bracket with mounting hardware.
    • Compact battery-operated laser projects thousands of red and green laser beam
    • Achieve a run time of up to 6 hours from a single charge with the rechargeable, lithium battery
    • Create customized effects with independent control of red and green laser diodes
    • Generate eye-catching effects with sound-activated and automated programs
    • Covers a large, wide area and looks great with or without fog
    • Wirelessly set color and rotation speeds with the included IRC-6 remote control
    • Variance-free and ready to use right out of the box
UPC: 781462214609 In the Box CHAUVET DJ EZ Laser RGFX Battery-Powered Laser with Wireless Remote
  • IRC-6 Infrared Remote Control 6 bcxebzxvvt
  • External Power Supply
  • Hanging Bracket with Mounting Hardware
  • Limited 1-Year Warranty; (Limited 6-Month Warranty on Laser Diode and Battery)
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the CHAUVET DJ EZ Laser RGFX Battery-Powered Laser with Wireless Remote in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    CHAUVET DJ EZ Laser RGFX Specs

    Light Source Red: 650 nm/80 mW laser diode
    Green: 532 nm/30 mW laser diode
    Class 3R lasers
    Coverage Angle 80°
    Battery Type: Lithium
    Max Run Time: Up to 6 hours
    Recharge Time: Up to 5 hours
    Power Input: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    Output: 12 VDC, 1.0 A
    Consumption (120 VAC/60 Hz): 17 W
    Operating (120 VAC/60 Hz): 0.2 A
    Consumption (230 VAC/50 Hz): 15 W
    Operating (230 VAC/50 Hz): 0.1 A

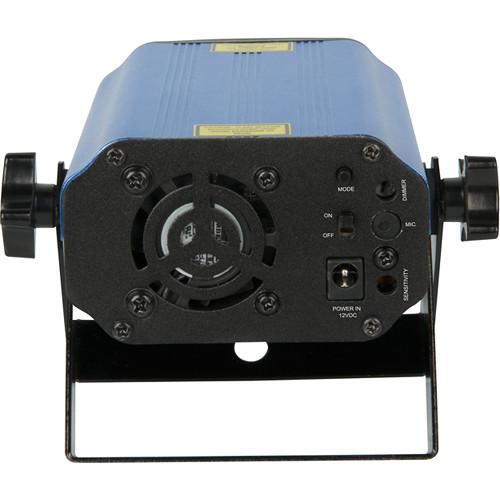

    Rear Panel Controls Power switch and mode button
    Wireless Control IRC-6 Remote: on/off control, auto mode settings, sound activation settings, color selection, speed, and strobe
    Thermal Rating Maximum External Temperature: 95 °F / 35 °C
    Cooling System: Fan-cooled
    Approvals and Compliance Classified per EN/IEC 60825-1:2007
    Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
    Approvals: CE, FDA
    Working Position 9.8' / 3 m vertical separation between floor and fixture
    9.8' / 3 m horizontal separation between audience and fixture
    Dimensions (L x W x H) 5.1 x 5.4 x 4.2" / 128.3 x 137.9 x 106.4 mm
    Weight 1.0 lb / 0.5 kg
    Package Weight 1.75 lb
    Box Dimensions (LxWxH) 8.5 x 7.1 x 2.5"
