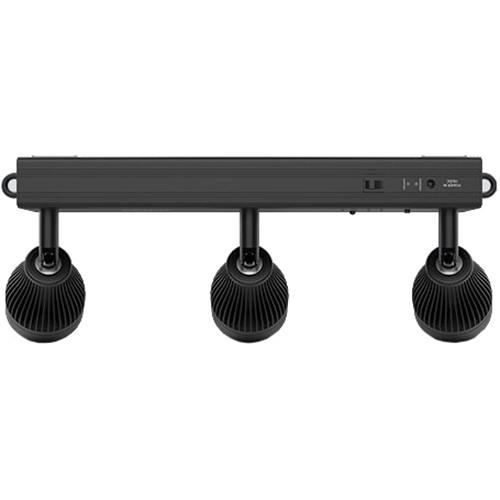

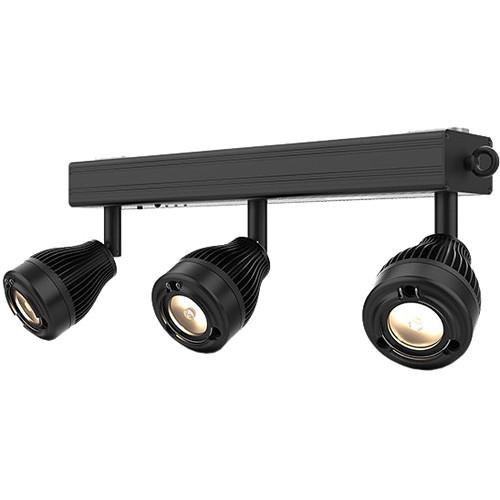

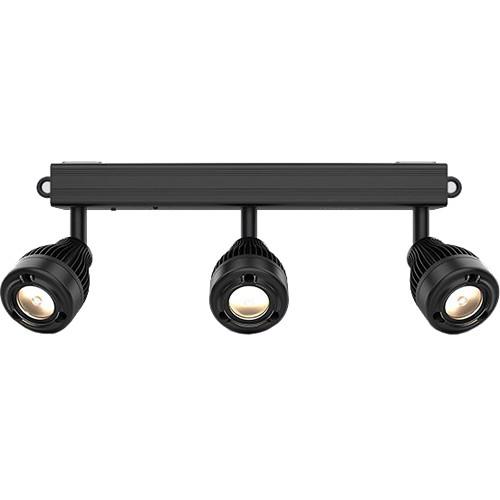

User Manual for CHAUVET DJ EZBar Battery-Powered Bar with 3 Pin Spots Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ EZBar Battery-Powered Bar with
- Product category: Architectural Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ Architectural Lights
 |
User manual for the CHAUVET DJ EZBar Battery-Powered Bar with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|
Product description Ideal for trade shows, limited engagement performances, demos, and numerous other events, the EZBar Battery-Powered Bar with 3 Pin Spots from CHAUVET has power options and remote control capability that bolster its portability. The 14" fixture has three 4000K warm white, 5° LED pin spots with a generous swivel range for highlighting subjects or items on display. Both 10 and 20° diffusers are provided for users who need a bit more coverage. The fixture boasts easy mounting via its magnetic base that clings securely to most metal surfaces; but you can also use optional mounting clamps (like CHAUVET's CLP-10 or similar) to attach it to truss sections or a grid.The EZBar is dimmable and you can adjust light intensity using the dimmer button on the unit, or you can make them remotely using the provided IR-6 wireless controller. Another one of the fixture's benefits is power source flexibility. The EZBar has a built-in battery that provides up to eight hours of runtime on a 7.5-hour charge. Ready for worldwide use, the fixture can also be powered by the included auto-ranging 100 to 240 VAC adapter. UPC: 781462218089 In the Box CHAUVET DJ EZBar Battery-Powered Bar with 3 Pin Spots EZBar Fixture IRC-6 Infrared Remote Control 6 10° Diffuser 20° Diffuser External Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ EZBar Battery-Powered Bar with 3 Pin Spots in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ EZBar Specs | Light Source | 3 x LEDs, 5.0 W 1.3 A | | Beam and Field Angle | Beam Angle: 5° per Pod
Field Angle: 10° per Pod | | Color Temperature | 4000K | | Photometrics | 3900 lux @ 6.56' / 2.0 m (per Pod) | | Electrical | Input Voltage:
15 VDC, 1.6 A
Input Voltage Power Adapter:
100 to 240 VAC, 50/60 Hz (Auto-Ranging)
Power and Current:
19 W, 0.3 A @ 120 V, 60 Hz
18 W, 0.2 A @ 230 V, 50 Hz
PWM Frequency:
35.7 MHz | | Power Consumption | At 120 VAC: 19 W, 0.3 A
At 230 VAC: 18 W, 0.2 A | | Cooling | Convection (Passive) | | Lamp Life | 50,000 Hours | | Mount | Threaded M10 Clamp Hole | | Maximum Operating Temperature | 104°F / 40°C | | Battery | Built-In
Runtime: Up to 8 Hours
Charge Time: 7.5 Hours | | Approvals | CE | | Dimensions | 14 x 5.0 x 4.0" / 35.8 x 12.7 x 10.6 cm | | Weight | 4.2 lb / 1.9 kg | | | | Package Weight | 4.5 lb | | Box Dimensions (LxWxH) | 20.9 x 6.0 x 3.6" |
