User Manual for CHAUVET DJ EZLink Par Q6 BT - True Wireless RGBA LED Par with Bluetooth Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ EZLink Par Q6 BT
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ EZLink Par Q6 BT contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

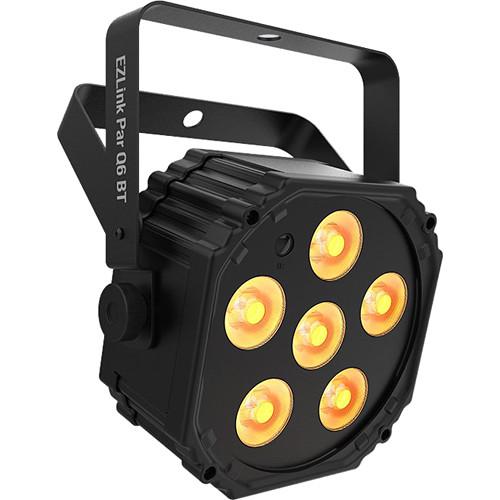

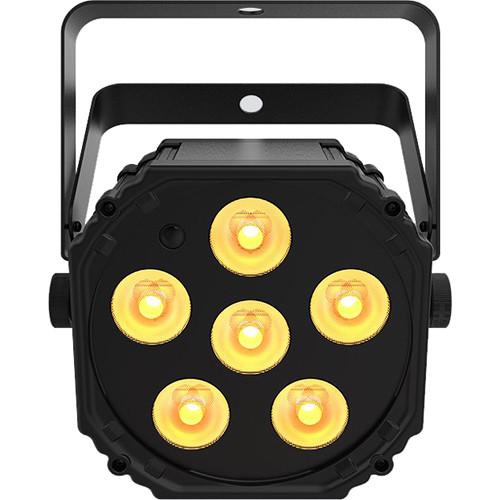

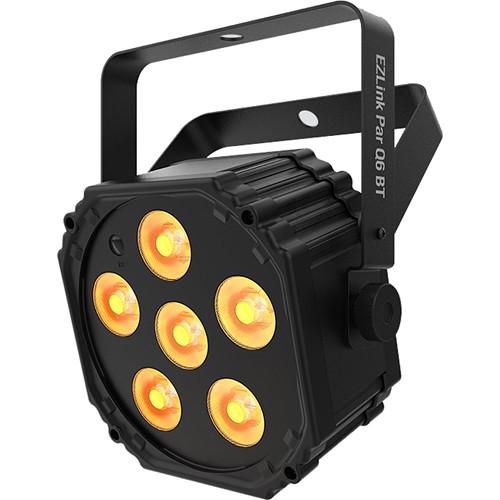

Product description The CHAUVET DJ EZLink Par Q6 BT is a battery-powered true wireless RGBA (red, green, blue, amber) LED PAR fixture with automated color mixing, full DMX control, and an integrated Bluetooth receiver. Designed to produce rich color washes for venue uplighting or dancefloors, event producers and mobile DJs can quickly position the fixture anywhere in the venue without running DMX or power cables.The EZLink Par Q6 BT is equipped with six, 3W quad-color LEDs and a 19° beam angle. The genuine amber LEDs provide richly vibrant and warm color mixing or natural-looking color temperatures. It has a built-in battery that lasts up to 20 hours on a full charge in single-color mode or 8 hours with all colors on. The fixture can be positioned on the floor using the split bracket, which lets you adjust the direction of the uplight or easily mount and position on trussing and light stands. Its compact design makes it easy to mount inside a 12" box truss or suspend overhead.The EZLink Par Q6 BT can operate as a standalone with dynamic effects including electronic dimming, color macros, variable-strobe, and built-in automated programs. It can be controlled via DMX (4 or 8 channels) or used in a master/slave configuration to coordinate multiple fixtures without the need for a controller. The fixture is compatible with the free BTAir application for phone and tablet, which allows you to control the fixture from up to 150' away, and is also compatible with the optional IRC-6 remote control. The EZLink Par Q6 BT ships with a power cord. -
- 100% true wireless, battery-operated, quad-color (RGBA) LED Par with built-in Bluetooth wireless technology
- Control directly from a smart phone or tablet via Bluetooth without any additional hardware
- Convenient, wireless non-DMX control using the optional IRC-6 remote
- DMX Channel Modes: 4- or 8-channel operation
- Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
- Generate eye-catching effects with sound-activated and automated programs
- Run up to 20 hours with a single color or up to 8 hours with all colors on
- Daisy chain power link up to 21 units at 120V
- Compatible with the CHS-40 VIP gear bag
UPC: 781462218874 In the Box CHAUVET DJ EZLink Par Q6 BT - True Wireless RGBA LED Par with Bluetooth Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ EZLink Par Q6 BT - True Wireless RGBA LED Par with Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

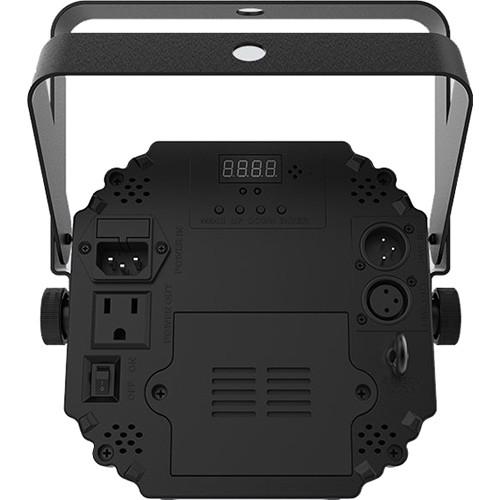

Technical parametersCHAUVET DJ EZLink Par Q6 BT Specs | DMX | DMX Channels: 4 or 8
DMX Connectors: 3-Pin XLR | | Maximum Unobstructed Distance | 150.0' / 45.7 m | | Light Source | 6 x LEDs (Quad-Color RGBA) 3 W, (900 mA)
Life Expectancy: 50,000 Hours | | Strobe Rate | 0 to 25 Hz | | PWM Frequency | 1.58 kHz | | Beam and Field Angle | Beam Angle: 19°
Field Angle: 35° | | Maximum Run Time | All On: Up to 8 Hours
Single Color: Up to 20 Hours | | Recharge Time | 7 Hours | | Operating Frequency | 2.4 GHz | | Illuminance | 1268 lux at 6.6' / 2.0 m | | Power Linking | 21 Units at 120 V
45 Units at 230 V | | Bluetooth | 4.2 | | Approvals | CE, FCC | | Bracket Mounting | Hole: M12 | | Power | Input Voltage: 100 to 240 VAC, 50/60 Hz (Auto-Ranging)
Power and Current:
40 W, 0.4 A at 120 V, 60 Hz
39 W, 0.2 A at 230 V, 50 Hz | | Dimensions (L x W x H) | 8.0 x 9.6 x 3.4" / 203.2 x 243.8 x 86.4 mm | | Weight | 3.6 lb / 1.6 kg | | | | Package Weight | 4.795 lb | | Box Dimensions (LxWxH) | 11.7 x 9.3 x 5.3" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 30 owners. Add your rating and experience with the product.
