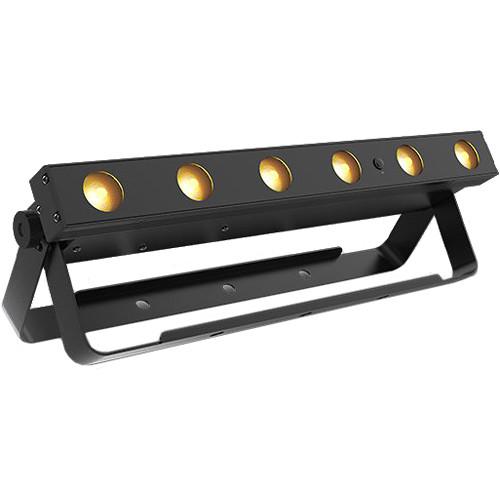

User Manual for CHAUVET DJ EZLink Strip Q6 BT - Wireless RGBA Linear Wash LED with Bluetooth Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ EZLink Strip Q6 BT
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ EZLink Strip Q6 BT contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|
Product description The CHAUVET DJ EZLink Strip Q6 BT is a battery-powered true wireless RGBA (red, green, blue, amber) linear wash fixture with automated color mixing, full DMX control, and an integrated Bluetooth receiver. Designed to produce rich color washes for venue uplighting and dancefloors, event producers and mobile DJs can quickly position the fixture anywhere in the venue without running DMX or power cables.The EZLink Strip Q6 BT is equipped with six, 3W quad-color LEDs and a 33° beam angle. The genuine amber LEDs provide richly vibrant and warm color mixing and natural-looking color temperatures. It has a built-in battery that lasts up to 20 hours on a full charge in single-color mode or 8 hours with all colors on. The fixture can be positioned on the floor using the split bracket, which lets you adjust the direction of the uplight or easily mount and position it on trussing or light stands.The EZLink Strip Q6 BT can operate as a standalone with dynamic effects including electronic dimming, color macros, variable-strobe, and built-in automated programs. Additionally, the fixture offers three zones of operation allowing for remarkable automated effects. It can also be controlled via DMX (4, 6, or 16 channels) or used in a master/slave configuration to coordinate multiple fixtures without the need for a controller. What's more, the fixture is compatible with the free BTAir application for phone and tablet, which allows you to control the fixture from up to 150' away. The EZLink Par Q4 BT is also compatible with the optional IRC-6 remote control and ships with a power cord and hanging bracket. -
- 100% true wireless, battery-operated, quad-color (RGBA) linear wash LED with built-in Bluetooth wireless technology
- Control directly from a smartphone or tablet via Bluetooth without any additional hardware
- Three zones of control create amazing automated effects
- Easily set static colors or automated programs with the optional IRC-6 remote
- DMX Channel Modes: 4-, 6-, or 16-channel operation
- Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
- Generate eye-catching effects with sound-activated and automated programs
- Run up to 20 hours with a single color, or up to 8 hours with all colors on
- Daisy-chain (power link) up to 28 units at 120V
UPC: 781462218898 In the Box CHAUVET DJ EZLink Strip Q6 BT - Wireless RGBA Linear Wash LED with Bluetooth Power Cord Hanging Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ EZLink Strip Q6 BT - Wireless RGBA Linear Wash LED with Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ EZLink Strip Q6 BT Specs | DMX | DMX Channels: 4, 6, or 16
DMX Connectors: 3-Pin XLR | | Maximum Unobstructed Distance | 150.0' / 45.7 m | | Light Source | 6 x LEDs (Quad-Color RGBA) 3 W, (1 A)
Life Expectancy: 50,000 Hours | | Strobe Rate | 0 to 20 Hz | | PWM Frequency | 1.21 kHz | | Beam and Field Angle | Beam Angle: 33°
Field Angle: 60° | | Maximum Run Time | All On: Up to 8 Hours
Single Color: Up to 20 Hours | | Recharge Time | 7.5 Hours | | Operating Frequency | 2.4 GHz | | Illuminance | 325 lux at 6.6' / 2.0 m | | Power Linking | 28 Units at 120 V
53 Units at 230 V | | Bluetooth | 4.2 | | Approvals | CE, FCC | | Bracket Mounting | Hole: M12 | | Power | Input Voltage: 100 to 240 VAC, 50/60 Hz (Auto-Ranging)
Power and Current:
25 W, 0.3 A at 120 V, 60 Hz
23 W, 0.1 A at 230 V, 50 Hz | | Dimensions (L x W x H) | 19.7 x 4.2 x 5.4" / 500.4 x 106.7 x 137.2 mm | | Weight | 6.6 lb / 3.0 kg | | | | Package Weight | 8.015 lb | | Box Dimensions (LxWxH) | 21.7 x 8.9 x 3.2" |
