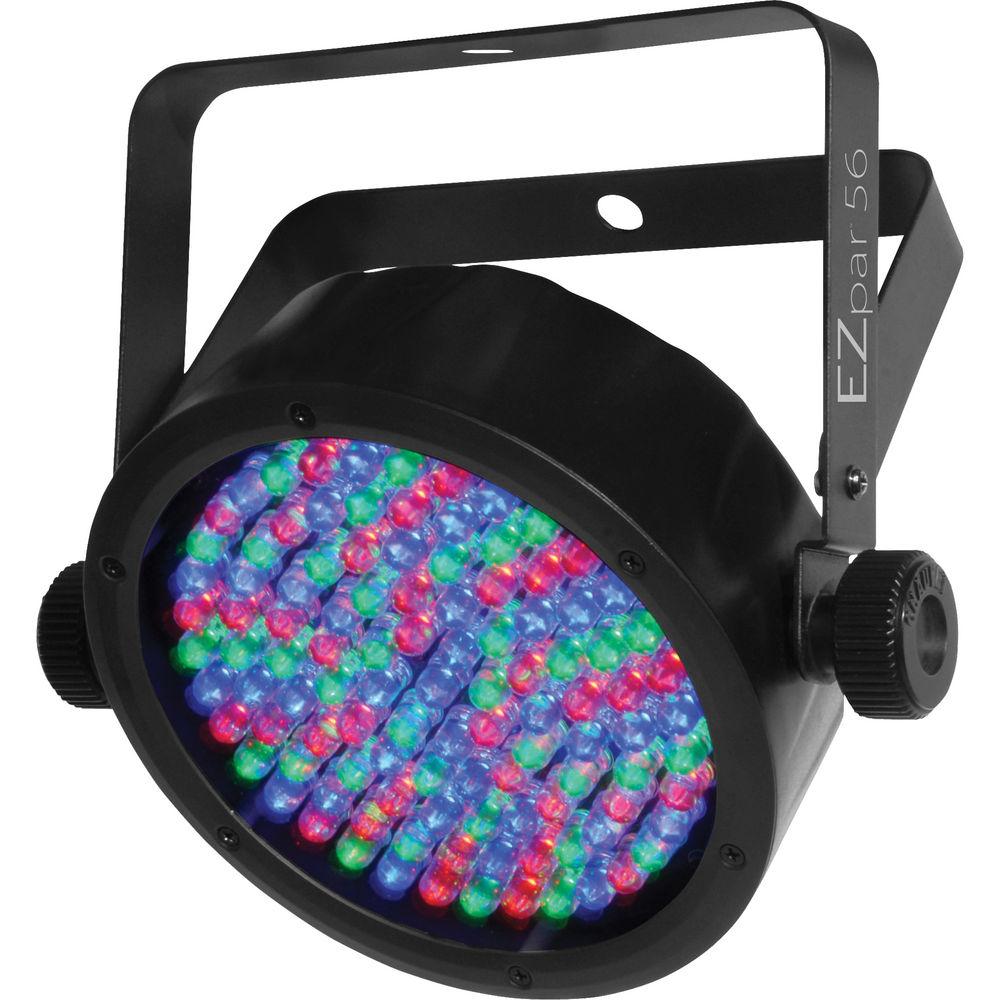

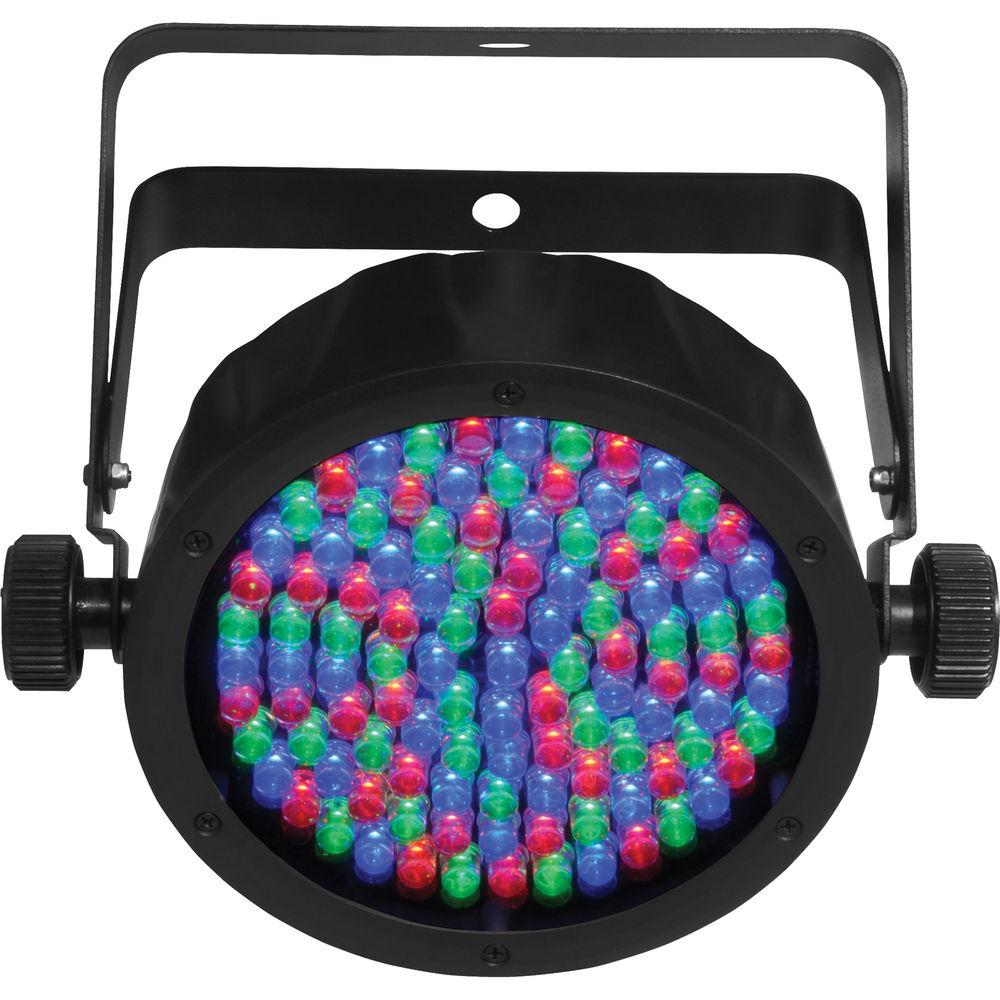

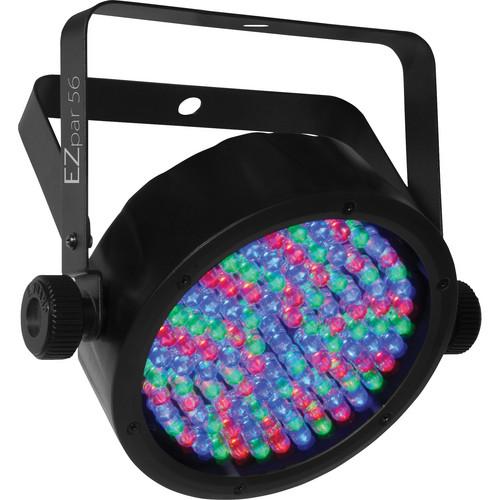

Product description The CHAUVET EZpar 56 with Power Cord and Infrared Remote Control is a battery-powered washlight, designed to speed up the setup process by freeing the mobile entertainer from the hassle of running cables. The rechargeable lithium-ion battery lasts up to 20 hours on a single charge and powers all 108 red, green, blue LEDs to deliver stunning colors. Built-in automated and sound-activated programs are accessible using the included IRC remote and in the DMX or master/slave mode. Its compact design easily fits inside sticks of TRUSST and a built-in battery life indicator allows you to easily keep tabs on the remaining charge. EZpar 56 fits best in the CHS-25 VIP Gear Bag (sold separately) for a secure and convenient transportation. - Battery-operated, cable-free RGB LED Par is apt for any place where light is needed
- Rechargeable, lithium battery lasts up to 20 hours from a single charge and you can easily check the battery status with the built-in battery life indicator
- Being battery operated, it eliminates the need for power cables and saves time in setting up
- Built-in automated and sound-activated programs via DMX, master/slave mode or convenient non-DMX wireless operation with the included IRC remote
- Easily transports in the CHS-25 VIP Gear Bag (sold separately)

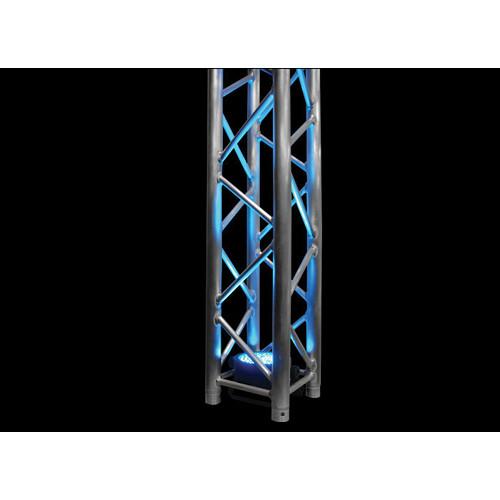

- Compact design easily fits inside sticks of TRUSST
UPC: 781462210892 In the Box CHAUVET DJ EZpar 56 Washlight with Power Cord and Infrared Remote Control Power Cord Infrared Remote Control Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ EZpar 56 Washlight with Power Cord and Infrared Remote Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ EZpar 56 Specs | Channels | DMX: 3 or 7 | | Connectors | DMX: 3-pin XLR | | Light Source | 108 LEDs (tri-color RGB) 0.25 W (20 mA), 100,000 hours life expectancy | | Strobe Rate | 0 to 22 Hz | | Battery Capacity | 5,400 mAh | | Beam Angle | 14° | | Field Angle | 23° | | Run Time | Maximum All On: Up to 8 hours
Maximum Single Color: Up to 20 hours | | Recharge Time | 6 hours | | Illuminance | 1,050 lux @ 2 m | | Power Linking | 41 units @ 120 V; 70 units @ 230 V | | Input Voltage | Auto-ranging 100 to 240 VAC 50/60 Hz | | Power and Current | 23 W, 0.1 A @ 120 V, 60 Hz
26 W, 0.1 A @ 230 V, 50 Hz | | Approvals | CE | | Dimensions | 9.5 x 8.6 x 2.5" (241.3 x 218.4 x 64.0 mm) | | Weight | 2.8 lb (1.3 kg) | | | | Package Weight | 4.185 lb | | Box Dimensions (LxWxH) | 11.1 x 10.1 x 4.3" |
