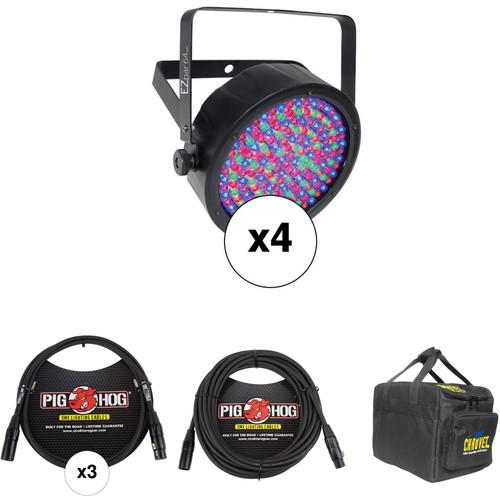

Product description This B&H Kit combines four black CHAUVET DJ EZpar 64 RGBA Battery-Powered LED PAR fixtures with three 5' DMX cables, a 25' DMX cable, and a padded gear bag to create a simple and effective lighting system for mobile DJs, special events, and venue uplighting. - 4 x CHAUVET DJ EZpar 64 RGBA Battery-Powered LED PAR (Black)
- EZpar 64 RGBA by CHAUVET DJ
The black CHAUVET DJ EZpar 64 RGBA is a battery-powered LED PAR fixture designed to produce amber-infused color washes with rich colors and nuanced shades of pastel. With 180 x RGBA LEDs (red, green, blue, amber), a 14° beam angle, and a 23° field angle, it is well suited for venue up-lighting or dance floor color washing.Compact and lightweight (at 4 lb), the EZpar 64 RGBA is designed with the mobile entertainer in mind. It features a built-in rechargeable battery which lasts up to 8 hours full-on and lets you quickly position your washes anywhere in the venue, regardless of power-outlet availability.The fixture can be used as a standalone with automated programs such as Sound-Active mode, Auto Programs, Color Macros, Static Colors, and Strobe. It can also be controlled via DMX or the IRC-6 infrared remote (included). The master/slave option lets you coordinate multiple units without the need for a controller.Other features include an auto-sensing power supply and a scissor yoke which can be used for conventional mounting to a truss or to create a variable-angle floor stand. - Battery-operated, RGBA LED PAR offers cable-free operation and speedy set up
- 180 x 0.25W LEDs (red, green, blue, amber) for bright color washes – with fast or slow color-change operation
- Amber LEDs provide rich colors and pastels
- 14° beam angle, 23° field angle
- Rechargeable, lithium-ion battery lasts up to 8 hours with all colors on and 20 hours with a single color on (full charge)
- 2 x DMX channel modes: 4 or 8
- Operational modes: Auto Programs, Sound-Active, Static-Colors, DMX
- Standalone or master/slave configuration
- Built-in battery life indicator to easily check the battery status
- LED display with 4-button menu for easy navigation
- Daisy-chain power for up to 55 units at 120V
- Scissor yoke to hang fixture on truss, mount on a wall or set on the ground
- Control unit wirelessly via the IRC-6 infrared remote (included)
- Multi-voltage operation: 100-240 VAC, 50/60 Hz
UPC: 781462210182 - 3 x Pig Hog 3-Pin XLR DMX Cable (5')
- EZpar 64 RGBA by CHAUVET DJ
Featuring extra-thick 8 mm wire, performance quality connectors, and tension-resistant stress relief, this 5' Pig Hog DMX Cable from Strukture is overbuilt precisely to stand up to the most grueling tour conditions imaginable. Consequently, Pig Hog cables have "no questions" lifetime guarantee. UPC: 672485347156 - Pig Hog 3-Pin XLR DMX Cable (25')
- EZpar 64 RGBA by CHAUVET DJ
Featuring extra-thick 8 mm wire, performance quality connectors, and tension-resistant stress relief, this 25' Pig Hog DMX Cable from Strukture is overbuilt precisely to stand up to the most grueling tour conditions imaginable. Consequently, Pig Hog cables have "no questions" lifetime guarantee. UPC: 672485347170 - CHAUVET DJ CHS-25 VIP Gear Bag for Four SlimPAR 64 Light Fixtures
- EZpar 64 RGBA by CHAUVET DJ
Store, protect, and transport your lights and accessories with the black CHS-25 VIP Gear Bag for Four SlimPAR 64 Light Fixtures from Chauvet Lighting. A well-designed bag, it has five internal compartments formed by four, padded dividers, and 2 exterior, zippered, accessory compartments. Dual zipper pulls enable quick access to the main compartment. Carry your VIP gear bag with the dual top handles and touch-fastening connector. - Carries up to 4 Chauvet DJ lights, connecting cables, and controller
- Features 7 compartments: 2 external and 5 internal
- Padded compartments safeguard fixture
- Compatible with SlimPAR 64, SlimPAR 64 RGBA, or other similar fixtures
UPC: 781462209506 In the Box - 4 x EZpar 64 RGBA Battery-Powered LED PAR (Black) adrrbvvrztbdsbucdy
- Power Cord
- IRC-6 Infrared Wireless Remote
- Limited 2-Year Warranty
- 3 x Pig Hog - 3-Pin XLR DMX Cable (5')
- Pig Hog - 3-Pin XLR DMX Cable (25')
- CHS-25 VIP Gear Bag for Four SlimPAR 64 Light Fixtures
Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ EZpar 64 RGBA Kit - Battery-Powered LED PAR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 4 x CHAUVET DJ EZpar 64 RGBA Battery-Powered LED PAR (Black)
| Light Source | 180 x 0.25 W LEDs (45 red, 45 green, 45 blue, 45 amber)
LED Current: 20 mA
Life Expectancy: 100,000 hours | | Colors | RGBA color mixing
Built-in color macros | | Beam Angle | 14° | | Field Angle | 23° | | Illuminance | 1325 lux at 6.5' / 2 m | | Battery | Run Time (Maximum): Up to 8 hours (all on), up to 20 hours (single color)
Recharge Time: 6 hours | | Dimming | 0-100% | | Effects | Color pulse and strobe
Rate: 0 to 22 Hz | | Operation Modes | Sound-Active, Auto Programs, Static-Color, DMX-controlled | | DMX Channels | 4 or 8 | | DMX Connectors | 3-pin XLR, in/out | | Wireless Control | IRC-6 infrared remote (included) | | Power Linking | 55 units at 120 V
85 units at 230 V
Current: 13.6 A | | Power Connector | IEC | | Input Voltage | 100-240 VAC, 50/60 Hz (auto-ranging) | | Power and Current | 33 W, 0.3 A at 120 V, 60 Hz
35 W, 0.2 A at 230 V, 50 Hz | | Fuse | T 1 A, 250 V | | Thermal | Maximum External Temperature: 104° F/40° C
Cooling System: Convection | | Approvals | CE | | Dimensions | 10.8 x 10.8 x 2.6" / 274.3 x 274.3 x 66.0 mm | | Weight | 4.0 lb / 1.8 kg | | | | Box Dimensions (LxWxH) | 13.3 x 12.1 x 5.0" | - 3 x Pig Hog 3-Pin XLR DMX Cable (5')
| | | Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 5' / 1.52 m | | | | Box Dimensions (LxWxH) | 8.5 x 7.5 x 0.75" | - Pig Hog 3-Pin XLR DMX Cable (25')
| | | Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 25' / 7.62 m | | | | Box Dimensions (LxWxH) | 8.5 x 8.0 x 1.5" | - CHAUVET DJ CHS-25 VIP Gear Bag for Four SlimPAR 64 Light Fixtures
| | | Compartment Dimensions (W x H x D) | 11 x 10 x 2.5" / 27.9 x 25.4 x 6.4 cm (Each) | | | | Closure Type | Zipper | | Carry and Transport Options | 2 x Connecting Handstrap | | Exterior Dimensions (W x H x D) | 15.7 x 12.4 x 11.2" / 40 x 31.5 x 28.5 cm | | Weight | 1.8 lb / 0.8 kg | | | | Box Dimensions (LxWxH) | 12.0 x 9.5 x 8.0" |
