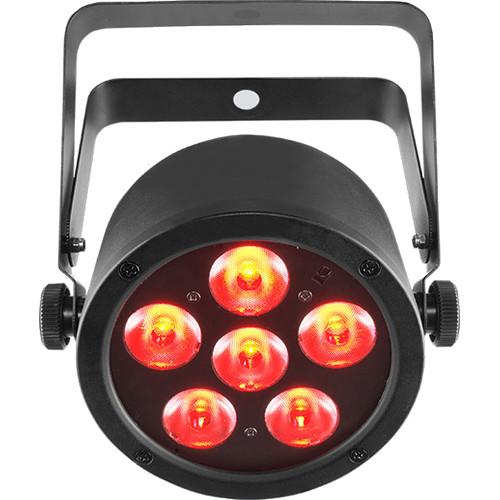

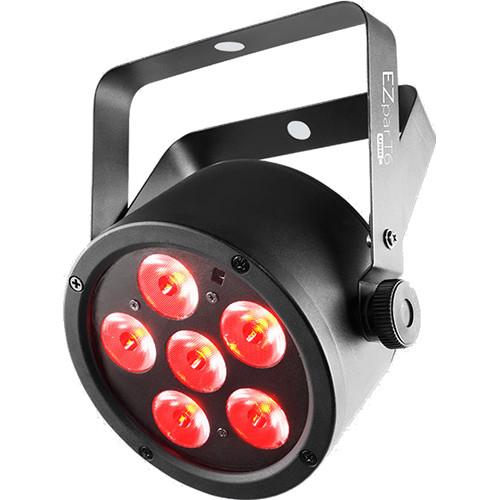

Product description The EZpar T6 USB from Chauvet is a battery-operated, tri-color RGB LED wash light. It gives a convenient access to RGB color mixing and static colors are available with or without DMX. The built-in automated programs via the included IRC-6 remote or Master/Slave mode makes control easy. . Its rechargeable, lithium battery lasts up to 20 hours from a single charge and you can easily check the battery status with the built-in battery life indicator. The fixture is compact and it easily fits inside sticks of TRUSST to serve as a Trusst warmer. - Rechargeable, lithium battery lasts up to 20 hours from a single charge
- Easily check the battery status with the built-in battery life indicator

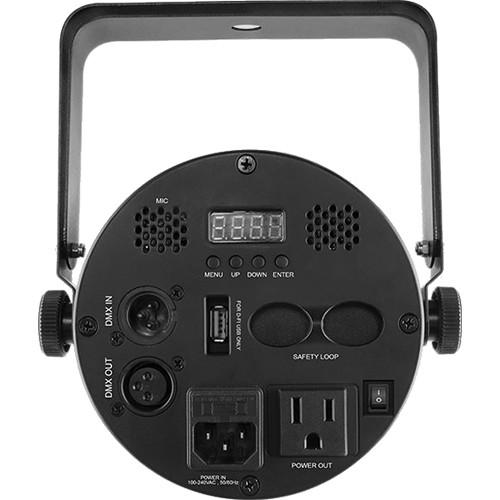

- D-Fi USB compatibility for wireless Master/Slave or DMX control
- Convenient access to RGB color mixing and static colors with or without DMX
- Flicker-free operation suitable for on-camera use
- Access built-in automated programs via included IRC-6 remote, Master/Slave
- Fits in the CHS-30 VIP Gear Bag (sold separately)
- Compact design easily fits inside sticks of TRUSST
UPC: 781462215705 In the Box CHAUVET DJ EZpar T6 USB Tri-Color RGB LED Wash Light IRC-6 Infrared Remote Control 6 Power Cord Hanging Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ EZpar T6 USB Tri-Color RGB LED Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ EZpar T6 USB Specs | Lamp | 6 LEDs: 3 W, (0.82 A) | | Lamp Life | 50,000 hours life expectancy | | Beam Angle | 19° | | Field Angle | 29° | | Photometric Data | Not Specified by Manufacturer | | Color | Tri-color RGB | | Illuminance | 1440 lux at 6.5' (2 m) | | DMX Connectors | 3-pin XLR | | DMX Channels | 3 or 8 | | Strobe Rate | 0 to 21 Hz | | PWM Frequency | 1.20 kHz | | Maximum Run Time | All On: Up to 8 hours
Single Color: 20 hours | | Recharge Time | 4.5 hours | | Power Linking | 24 units at 120 V
41 units at 230 V | | Power Connection Type | Not Specified by Manufacturer | | Power | 22 W, 0.3 A at 120 V, 60 Hz
23 W, 0.2 A at 230 V, 50 Hz | | Power Consumption | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Rigging Points | Not Specified by Manufacturer | | Approvals | CE | | Dimensions | 7.1 x 4.1 x 9.1" (18 x 10 x 23 cm) | | Weight | 3.8 lb (1.7 kg) |
