Product description - EZWedge Tri by CHAUVET DJ

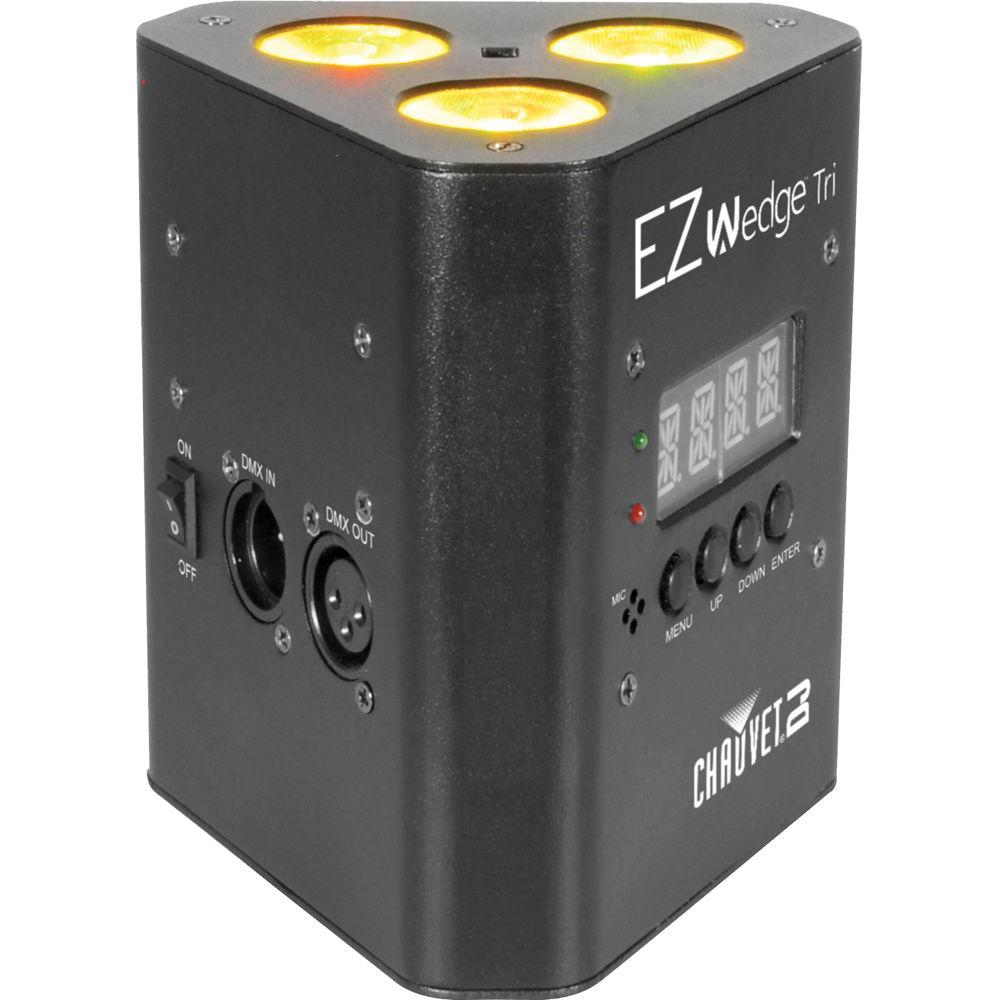

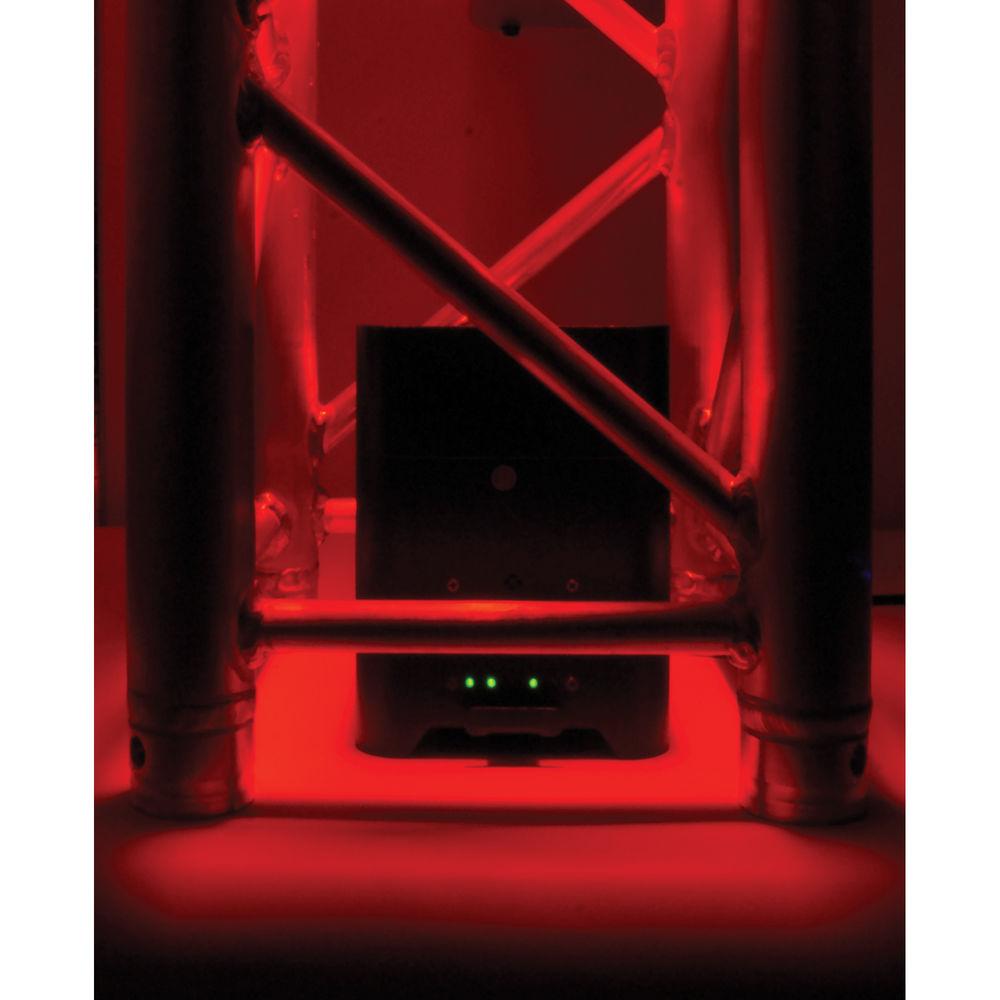

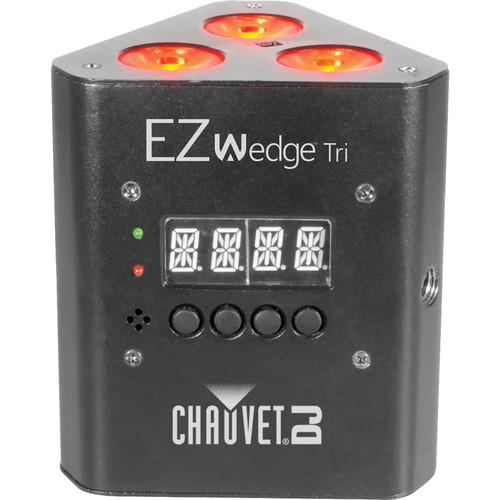

The battery-powered CHAUVET DJ EZWedge Tri is a triangularly-shaped RGB LED wash light designed to fit inside triangle-truss systems, and produce color washes with bright and smooth color mixing. Featuring three 3W LEDs, a 30° field angle, and a 16° beam angle, it is well suited for venue uplighting, dance-floor color washing, and more.Lightweight (at 2.8 lb), the EZWedge Tri is ideal for mobile entertainers. The built-in rechargeable battery lasts up to 20 hours on a full charge and lets you quickly position your washes anywhere in the venue, regardless of power-outlet availability.The EZWedge Tri can be used as a stand-alone with dynamic effects including electronic dimming, color macros, variable strobe, and built-in automated programs. It can also be controlled via DMX or used in a master/slave configuration to coordinate multiple fixtures without the need for a controller.The fixture comes equipped with a DMX LED display, an auto-ranging power supply, and M10 or M12 threaded rig points so you can attach it to a truss without needing a bracket. The EZWedge Tri ships with the IRC-6 wireless remote. - Key Features
-
- Triangular-shaped LED wash light designed to fit inside triangle-truss systems from most manufacturers
- 3 x 3W tricolor RGB LEDs (red, green, blue), for bright color washes
- Rechargeable lithium battery lasts up to 20 hours on a full charge
- Easily check the battery status with the built-in battery-life indicator
- 16° beam angle, 30° field angle
- 2 x DMX channel modes: 3 or 8
- Built-in automated programs
- Variable color-strobe effect
- Easily control static colors and automated programs with the included IRC-6 wireless remote
- Smooth dimming with built-in dimming curves: 0 to 100%, electronic
- Create coordinated light shows by linking other EZWedge Tri fixtures in master/slave mode
- Program any color without DMX by using the built-in digital display
- Flicker-free operation suitable for on-camera use
- Attaches to 35mm truss without the need for a bracket, using M10 or M12 threaded rig points
- Fits neatly inside TRUSST Goal Post and Arch Kit truss systems (available separately)
- Daisy-chain power for up to 33 units at 120V, or 57 units at 230V
- Multi-voltage operation: 100-240 VAC, auto-ranging
UPC: 781462211653 In the Box CHAUVET DJ EZWedge Tri Battery-Powered RGB LED Wash Light Power Cord IRC-6 Infrared Remote Control 6 Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ EZWedge Tri Battery-Powered RGB LED Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ EZwedge Tri Specs | Light Source | 3 x 3 W tricolor RGB LEDs (red, green, blue)
Current: 1050 mA
Life Expectancy: 50,000 hours | | Beam and Field Angle | Beam Angle: 16°
Field Angle: 30° | | Illuminance | 1066 lux at 6.5' (2.0 m) | | Rechargeable Battery | Type: Lithium
Charging Time: 6 hours
Run Time: Up to 8 hours (all colors on), up to 20 hours (single color on)
| | Operating Modes | DMX
Master/slave mode
Sound-active
Stand-alone | | Effects | Electronic Dimming: 0-100%, with dimming curves
Auto-programs
Color macros
Variable strobe: 0 to 17 Hz | | DMX Channel Modes | 3 or 8 | | DMX Connectors | 3-pin XLR, in/out | | Power Requirements | 100-240 VAC, 50/60 Hz, auto-ranging | | Power and Current | 120 VAC, 60 Hz: 17 W, 0.2 A
230 VAC, 50 Hz: 16 W, 0.1 A | | Power Linking | 33 Units, 8 A at 120 VAC
57 Units, 8 A at 230 VAC | | Remote Control | IRC-6 wireless remote, included | | Mounting | M10 and M12 threaded rig points | | Maximum Operating Temperature | 104°F / 40°C
Cooling System: Convection | | Approvals | CE, RoHS | | Dimensions | 4.3 x 4.3 x 5.4" (109.2 x 109.2 x 137.1 mm) | | Weight | 2.8 lb (1.3 kg) | | | | Package Weight | 3.55 lb | | Box Dimensions (LxWxH) | 8.0 x 7.2 x 6.6" |
