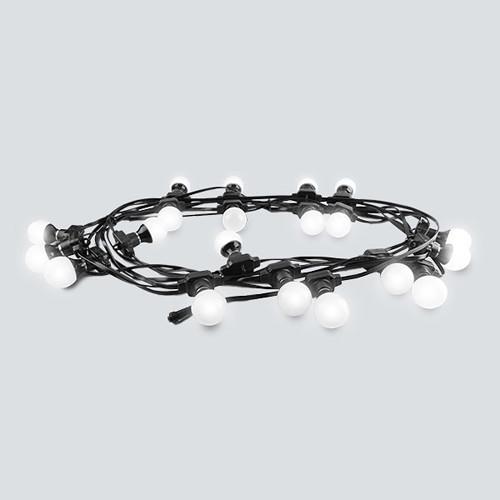

User Manual for CHAUVET DJ Festoon - Outdoor RGB LED Light String Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ Festoon - Outdoor RGB
- Product category: DJ & Effect Lights CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DJ & Effect Lights
 |
User manual for the CHAUVET DJ Festoon - Outdoor RGB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|

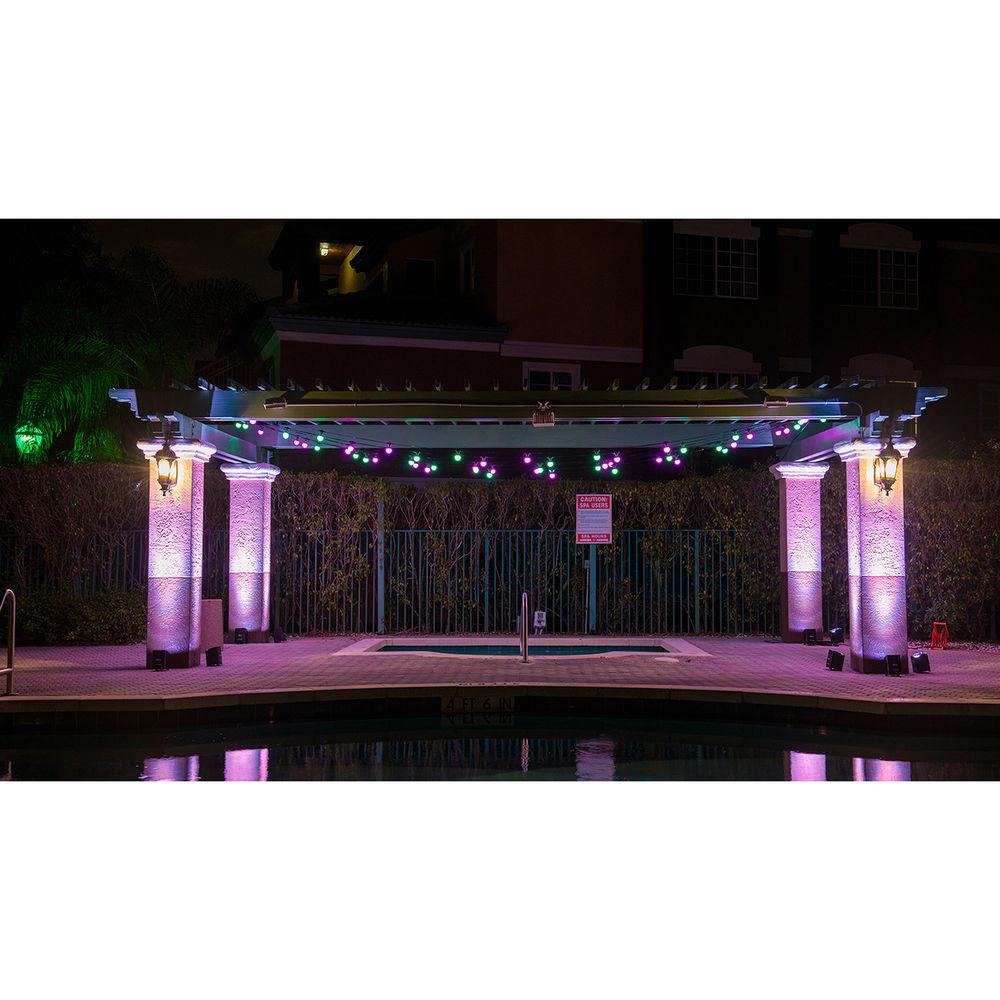

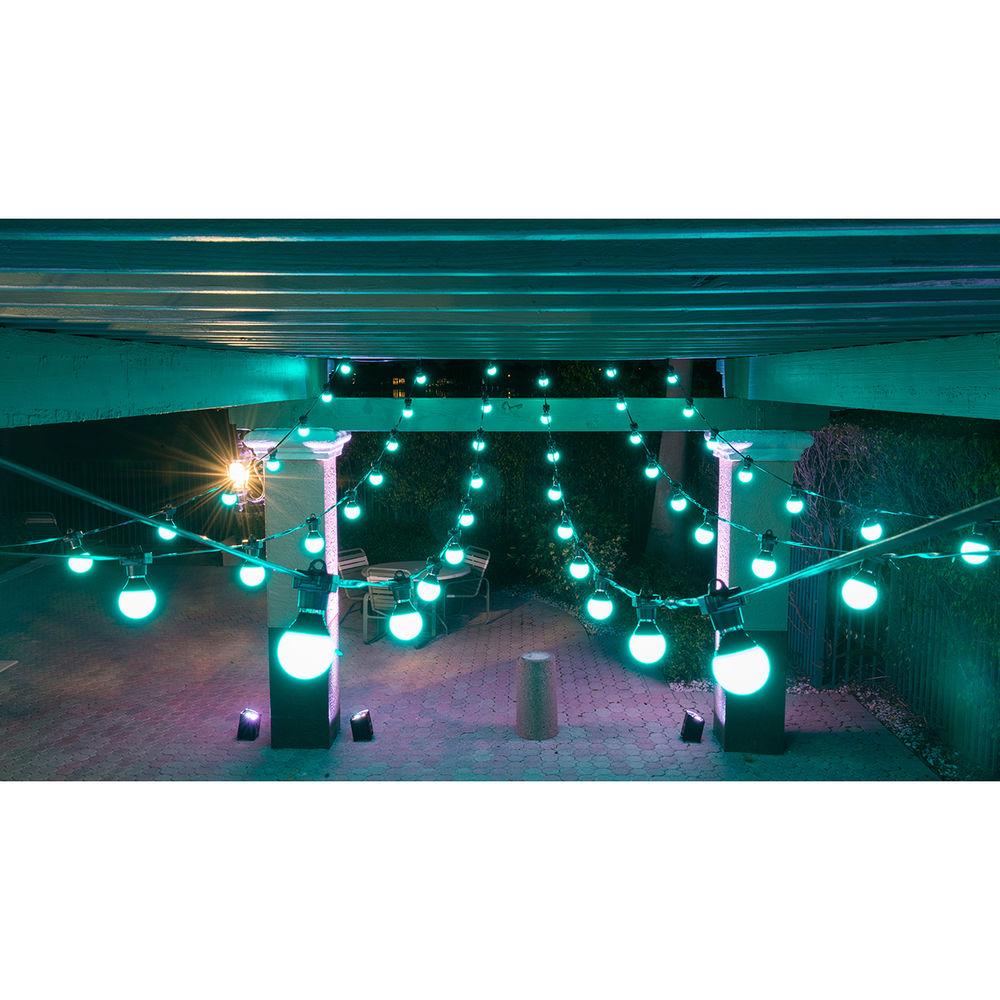

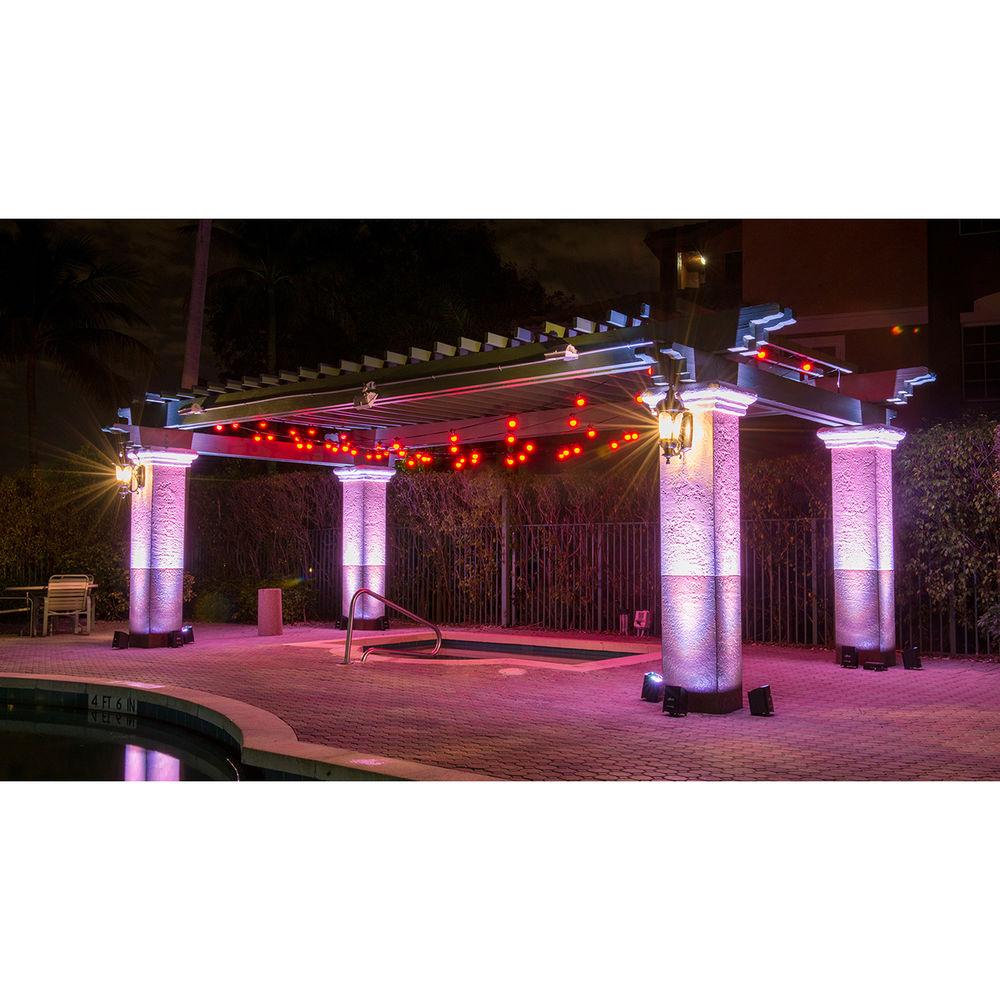

Product description The Festoon from Chauvet is a dynamic outdoor-rated party décor light featuring the vintage look and feel of standard party light strings, but is completely pixel-mappable for ultimate show and programming creativity. Its built-in automated programs create complex looks in seconds. The light comes with a 49' strand of 20 RGB LED bulbs and is expandable up to 3 strands per controller (60 bulbs). The unit features D-Fi USB compatibility for wireless Master/Slave or DMX control. Non-DMX control is possible in Standalone mode from the digital display or IRC-6 remote (sold separately). It has eyelets on every lamp holder and a variety of 3rd party décor options such as paper lanterns can be clipped. - Provides the vintage look and feel of standard party light strings
- Strings and bulbs are IP43 rated for outdoor use
- Pixel-mappable for show and programming creativity
- Eyelets on every lamp holder for quick and easy mounting
- Expandable up to 3 strings per controller, total of 60 bulbs
- Built-in automated programs create complex looks in seconds
- Third-party decor options like paper lanterns can be clipped to Festoon to increase design flexibility
- D-Fi USB compatibility for wireless Master/Slave or DMX control

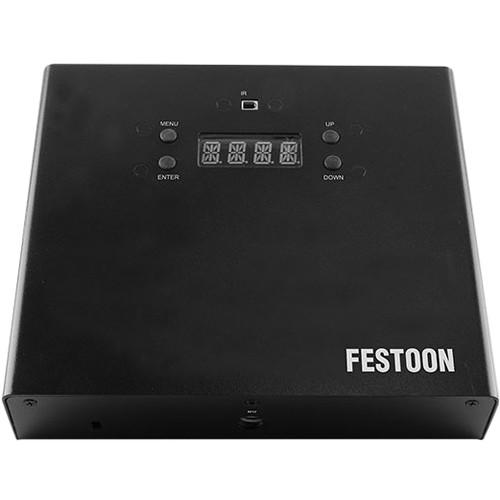

- Access non-DMX control in Standalone mode from the digital display or IRC-6 remote (sold separately)

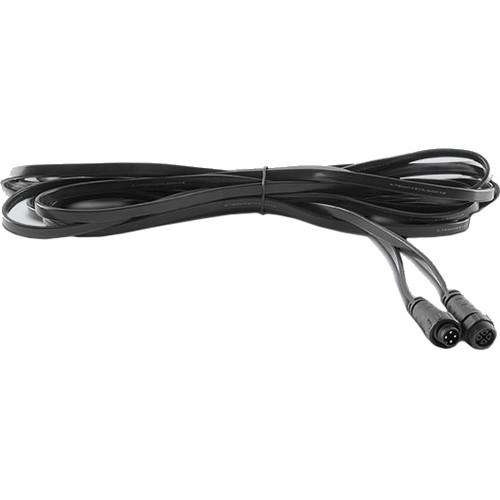

UPC: 781462215453 In the Box CHAUVET DJ Festoon - Outdoor RGB LED Light String 49' String with 20 RGB bulbs 16' Extension Cable Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Festoon - Outdoor RGB LED Light String in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ FESTOON Specs | Light Source | Per Bulb: 6 x RGB SMD LEDs, 0.1 W (50 mA)
20 x bulbs | | Life Expectancy | 50,000 hours | | Color Mixing | RGB | | Coverage Angle | 360° | | Strobe Rate | 0 to 16.6 Hz | | PWM Frequency | 20.6 KHz | | Protocols | DMX, D-Fi USB | | DMX Connectors | Input: XLR 3-pin

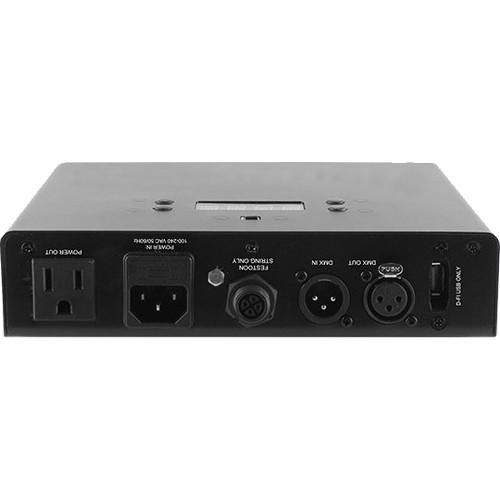

Output: XLR 3-pin | | DMX Channel Modes | 3, 8, 9, 60, 120, or 180 channels | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | Input: IEC
Output: Edison | | Power Linking | 60 Bulbs: 3 units @ 120 V, 7 units @ 230 V
40 Bulbs: 6 units @ 120 V, 11 units @ 230 V
20 Bulbs: 13 units @ 120 V, 24 units @ 230 V | | Power and Current | 60 Bulbs: 142 W, 2A @ 120 V, 60 Hz
40 Bulbs: 86 W, 1.3 A @ 120 V, 60 Hz
20 Bulbs: 40 W, 0.6 A @ 120 V, 60 Hz
60 Bulbs: 141 W, 1.1 A @ 230 V, 50 Hz
40 Bulbs: 85 W, 0.7 A @ 230 V, 50 Hz
20 Bulbs: 40 W, 0.3 A @ 230 V, 50 Hz | | Remote Control Compatibility | IRC-6 (available separately) | | IP Rating | IP43 | | Approvals | CE | | Dimensions | String: 590.5 x 2.4 x 5.2" (1498.6 x 6.1 x 13.2 cm)
Controller: 7.5 x 8.4 x 2" (19.1 x 21.3 x 5.1 cm) | | Weight | Controller: 10.4 lb (4.8 kg) | | | | Package Weight | 15.85 lb | | Box Dimensions (LxWxH) | 15.5 x 13.4 x 12.5" |
