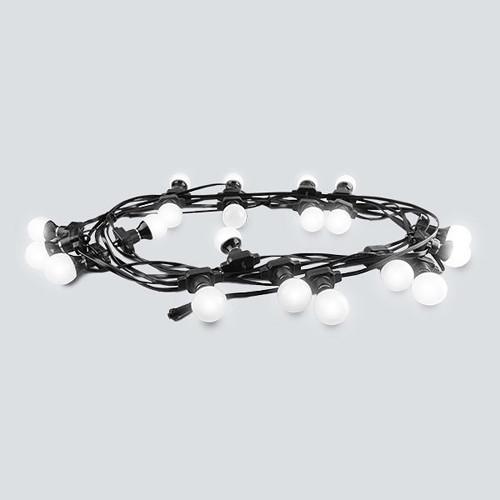

Product description The white CHAUVET DJ Festoon is a dynamic outdoor-rated party décor light featuring the vintage look and feel of standard party light strings, but is completely pixel-mappable for ultimate show and programming creativity. Its built-in automated programs create complex looks in seconds. The light comes with a 49' strand of 20 RGB LED bulbs and is expandable up to 3 strands per controller (60 bulbs). The unit features D-Fi USB compatibility for wireless Master/Slave or DMX control. Non-DMX control is possible in Standalone mode from the digital display or IRC-6 remote (sold separately). It has eyelets on every lamp holder and a variety of third-party décor options such as paper lanterns can be clipped. - Provides the vintage look and feel of standard party light strings
- Includes Festoon controller, Festoon string with 20 RGB LED bulbs, and extension string
- Strings and bulbs are IP43 rated for outdoor use
- Pixel-mappable for show and programming creativity
- Eyelet on every lamp holder for quick and easy mounting
- Expandable up to 3 strings per controller, total of 60 bulbs
- Built-in automated programs create complex looks in seconds
- Third-party decor options like paper lanterns can be clipped to Festoon to increase design flexibility
- D-Fi USB compatibility for wireless Master/Slave or DMX control
- Access non-DMX control in Standalone mode from the digital display or IRC-6 remote (available separately)
UPC: 781462217242 In the Box CHAUVET DJ Festoon Outdoor RGB LED Party Light String (White) Festoon Controller Festoon String with 20 LED Bulbs (49') Extension String (16') Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ Festoon Outdoor RGB LED Party Light String in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ Festoon Specs | Light Source | Per Bulb: 6 x tri-color RGB (red, green, blue) SMD LEDs, 0.1 W (50 mA)
20 x bulbs | | Life Expectancy | 50,000 hours | | Color Mixing | RGB | | Coverage Angle | 360° | | Strobe Rate | 0 to 16.6 Hz | | PWM Frequency | 20.6 KHz | | Protocols | DMX, D-Fi USB | | DMX Connectors | Input: XLR 3-pin
Output: XLR 3-pin | | DMX Channel Modes | 3, 8, 9, 60, 120, or 180 channels | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | Input: IEC
Output: Edison | | Power Linking | 60 Bulbs: 3 units at 120 V, 7 units at 230 V
40 Bulbs: 6 units at 120 V, 11 units at 230 V
20 Bulbs: 13 units at 120 V, 24 units at 230 V | | Power and Current | 60 Bulbs: 142 W, 2A at 120 V, 60 Hz
40 Bulbs: 86 W, 1.3 A at 120 V, 60 Hz
20 Bulbs: 40 W, 0.6 A at 120 V, 60 Hz
60 Bulbs: 141 W, 1.1 A at 230 V, 50 Hz
40 Bulbs: 85 W, 0.7 A at 230 V, 50 Hz
20 Bulbs: 40 W, 0.3 A at 230 V, 50 Hz | | Remote Control Compatibility | IRC-6 (available separately) | | IP Rating | IP43 | | Approvals | CE | | Dimensions | String: 590.5 x 2.4 x 5.2" (1498.6 x 6.1 x 13.2 cm)
Controller: 7.5 x 8.4 x 2" (19.1 x 21.3 x 5.1 cm) | | Weight | Controller: 10.4 lb (4.8 kg) |
