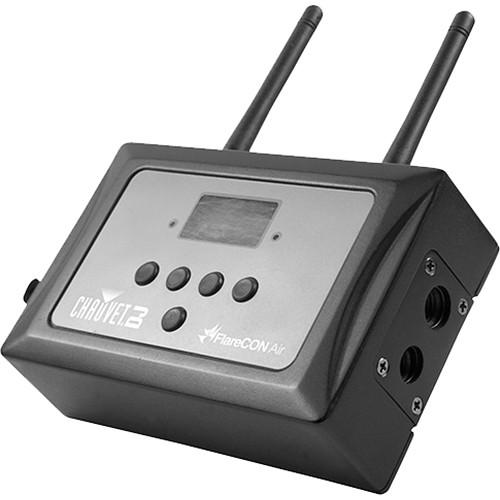

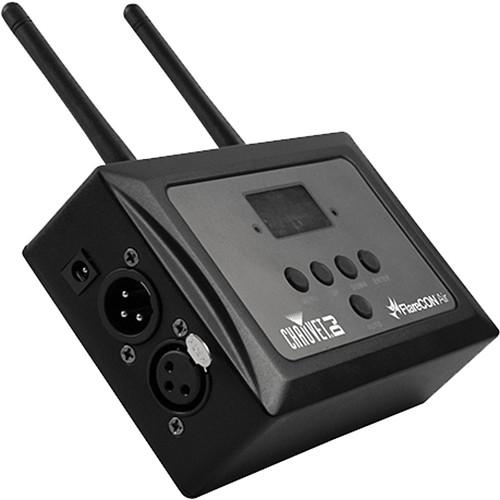

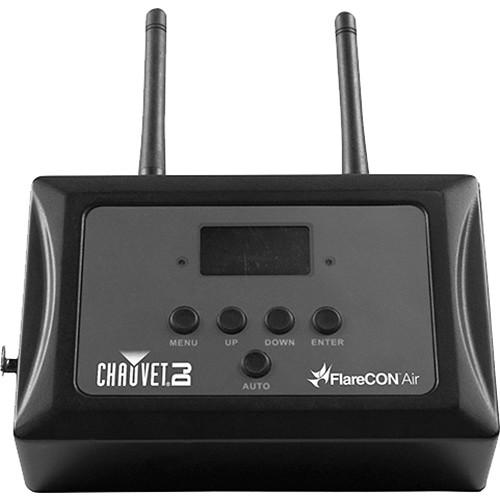

User Manual for CHAUVET DJ FlareCON Air Wireless Transmitter Click to enlarge the picture
Contents of the user manual for the CHAUVET DJ FlareCON Air Wireless Transmitter
- Product category: DMX Devices CHAUVET DJ
- Brand: CHAUVET DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET DJ DMX Devices
 |
User manual for the CHAUVET DJ FlareCON Air Wireless Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET DJ product will considerably shorten its lifespan!
|
Product description Turn your cellphones and tablets into wireless DMX controllers with the FlareCON Air Wireless Transmitter from Chauvet.The FlareCON works with all CHAUVET DJ Freedom series fixtures as well as all D-Fi products for versatile control over your rig.
The built-in Wi-Fi transmitter connects with cellphones and tablets running the free FlareCON app. The app allows the user to control connected lighting fixtures. Your FlareCON Air then converts the Wi-Fi signal from the phone or tablet into D-Fi and wirelessly transmits those signals to an unlimited number of receivers.
The FlareCON app is available for both Android and iOS in both phone and tablet versions. The FlareCON Air can also connect directly to a DMX controller. FlareCON Air is fully FCC and RTTE compliant. Users will appreciate the simple navigation, text readout and OLED digital display. Numerous mounting options include – a built-in hook and loop fastener strap, keyhole mounting holes, and M10/M12 threaded holes for direct mounting to a truss. - Benefits and Attributes
-
- FlareCON App is available for download for Android and iOS
- Compact, easy-to-use Wi-Fi receiver and wireless D-Fi transmitter in a single unit
- Compatible with Android operating system and Mac iOS on both smartphones and tablets
- Output can be used in wireless D-Fi or wired DMX protocols
- Wirelessly synchronize an unlimited number of D-Fi-ready fixtures and receivers simultaneously
- Built-in options include manual or automatic channel selection
- Simple navigation and text readout using the OLED digital display

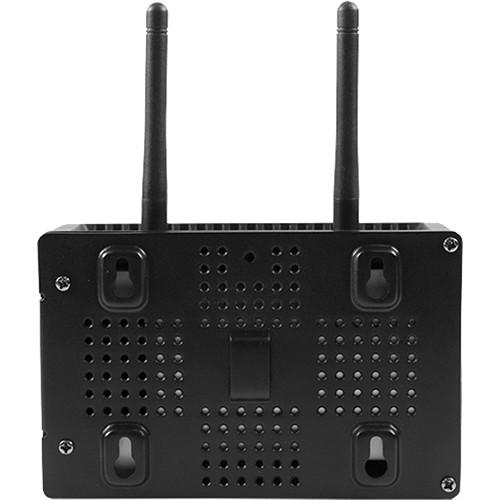

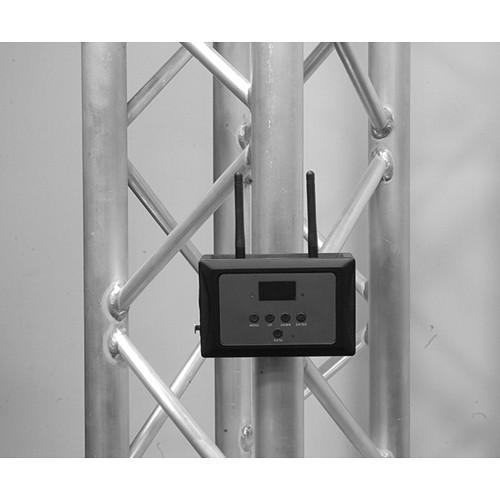

- Mounting options include a built-in hook and loop fastener strap, keyhole mounting holes, M10 and M12 threaded holes for direct mounting to truss
- Fully FCC/RTTE compliant
UPC: 781462211639 In the Box CHAUVET DJ FlareCON Air Wireless Transmitter External Power Supply Stickers Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET DJ FlareCON Air Wireless Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET DJ FLARECON AIR Specs | DMX Channels | 512 | | DMX Connectors | Input: 1 x XLR 3-pin
Output: 1 x XLR 3-pin | | Operating Frequency | 2.4 GHz | | Antenna Connector | RP-SMA | | Wireless Range | Wi-Fi (Max. Unobstructed Distance): 100' (30.5 m)
D-Fi (Max. Unobstructed Distance): 600' (183 m) | | Input Voltage | 9 VDC, 500 mA
External Power Supply: 100-240 VAC, 50/60 Hz (auto-ranging) | | Power and Current | 4.0 W, 0.1 A @ 120 VAC, 60 Hz
9.0 W, 0.1 A @ 230 VAC, 50 Hz | | Approvals | CE, FCC | | Dimensions | 5.59 x 3.58 x 1.81" / 14.2 x 9.1 x 4.6 cm | | Weight | 1.2 lb / 0.54 kg | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 10.0 x 5.0 x 3.5" |
